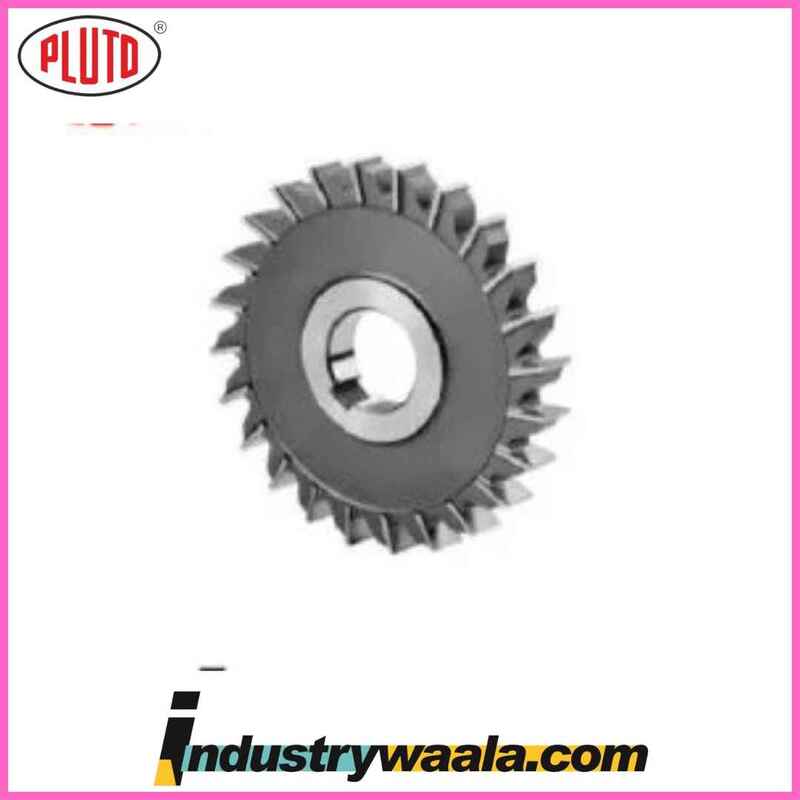

Pluto 100 X 6 X 32 MM Side & Face Cutters (Type"B" Straight Teeth)

The Pluto 100 X 6 X 32 MM Side & Face Cutter (Type "B" Straight Teeth) is a versatile and high-performance cutting tool designed for a wide range of milling operations. It features straight teeth in a Type "B" design, making it ideal for both side milling and face milling. This cutter is used primarily for precision material removal and is commonly employed in toolmaking, machinery manufacturing, and metalworking industries. Below is a detailed description of the cutter's features, applications, and advantages.

Product Overview:

The Pluto 100 X 6 X 32 MM Side & Face Cutter is a precision tool designed to carry out both side milling (cutting along the side of the cutter) and face milling (cutting along the face of the cutter). With an 80 mm diameter, an 6 mm width of cut, and a 32 mm arbor hole, this cutter provides high-quality cutting performance for a variety of tasks such as slotting, grooving, and milling flat surfaces.

The cutter’s Type "B" configuration allows for a dual-purpose cutting action, which is perfect for users who need versatility and efficiency in their milling operations. The straight teeth ensure smooth, consistent cuts and are particularly effective for finishing operations that require a clean, high-quality surface.

Key Features:

1. Size and Dimensions:
   • 100 mm Cutter Diameter: The 100 mm diameter (approximately 3.94 inches) ensures a wide cutting surface, making it suitable for medium-to-large milling jobs. This diameter strikes a balance between providing adequate material removal and maintaining precision during operation.
   • 6 mm Width of Cut: The 6 mm width of cut is ideal for creating narrow slots, grooves, and precise cuts in workpieces. It is a good option for tasks requiring moderate material removal while maintaining accuracy.
   • 32 mm Arbor Hole: The 32 mm arbor hole (approximately 1.26 inches) fits securely onto the milling machine’s arbor, ensuring stable and precise mounting. This minimizes vibrations and ensures more accurate cutting, which is especially important for high-precision milling operations.
2. Type "B" Straight Teeth Configuration:
   • Straight Teeth: The cutter features straight teeth, which are ideal for providing consistent cutting action and a smooth surface finish. Straight teeth reduce the chances of tool chatter and vibration, improving the overall quality of the cut and tool life.
   • Type "B" Design: The Type "B" cutter design allows the tool to perform both side milling and face milling operations. The ability to cut from both the side and the face makes it a versatile tool that can handle a variety of tasks with one cutter, saving time and reducing tool changeovers.
3. Durable Construction:
   • The Pluto Side & Face Cutter is made from high-speed steel (HSS) or equivalent materials that provide excellent wear resistance and durability. This enables the tool to withstand high-speed cutting and heavy loads without losing its cutting efficiency.
   • Heat Treatment: The cutter undergoes a heat treatment process that increases its hardness and toughness, which is especially important when milling harder materials or working under demanding conditions.
4. Versatility in Milling Operations:
   • This cutter is suitable for a variety of operations, including side milling, face milling, grooving, slotting, and finishing operations. Its ability to handle both types of milling makes it a cost-effective and space-saving tool in the workshop.

Applications:

1. Side Milling:
   • Side milling is the process of using the side of the cutter to remove material along the edges of a workpiece. The 6 mm width of cut is well-suited for groove cutting, keyway cutting, and creating narrow slots. It is perfect for precision side milling tasks where accurate material removal is critical.
2. Face Milling:
   • Face milling involves cutting from the face of the cutter to remove material from the top surface of the workpiece. The straight teeth configuration ensures a clean, smooth finish on the surface, making it ideal for flat surface milling. This is especially useful for applications such as machining flat faces, contour milling, or surface preparation.
3. Slotting and Grooving:
   • The cutter is effective for slotting and grooving, where precision is key. The 6 mm width of cut is ideal for creating narrow slots or grooves that are essential for parts like keyways, locking mechanisms, and fitting components.
4. Tool and Die Making:
   • In tool and die making, the Pluto 100 X 6 X 32 MM Side & Face Cutter is used for creating molds, dies, and other tooling components that require tight tolerances and a smooth finish. The straight teeth ensure consistent material removal, which is critical for achieving accurate and high-quality tool surfaces.
5. Machinery Manufacturing:
   • This cutter is used in machinery manufacturing for producing mechanical parts and components that require both side milling and face milling operations. The Type "B" configuration allows the operator to switch between operations without changing tools, improving efficiency in production.

Advantages:

1. Dual Functionality (Side Milling & Face Milling):
   • The Type "B" configuration allows the cutter to be used for both side milling and face milling. This dual functionality reduces the need for multiple tools, making it a cost-effective and space-saving solution for the workshop.
2. Precision and Surface Finish:
   • The straight teeth design ensures that the cutter performs consistently, resulting in cleaner cuts and smoother finishes. This makes it ideal for applications where precision and surface quality are critical.
3. Efficient Material Removal:
   • With a 6 mm width of cut, the cutter efficiently removes material without overloading the machine. This size is particularly useful for tasks that involve medium-depth cuts such as grooving, slotting, and finishing operations.
4. Durability and Long Tool Life:
   • Constructed from high-speed steel (HSS) or equivalent materials, the cutter is designed to withstand demanding conditions and perform at high speeds without excessive wear. This enhances tool life and reduces maintenance costs.
5. Versatility Across Materials:
   • The cutter is suitable for a variety of materials, including steel, aluminum, brass, and non-ferrous metals, making it a versatile tool for a wide range of industries such as automotive, aerospace, and general manufacturing.
6. Stable Cutting Performance:
   • The 32 mm arbor hole ensures secure mounting of the cutter, reducing vibrations and ensuring stable, accurate cuts. This contributes to improved overall performance and consistency in cutting operations.
7. Cost-Effective Tooling Solution:
   • By combining side milling and face milling capabilities in one tool, the Pluto Side & Face Cutter eliminates the need for multiple tools, making it a more cost-effective choice for operators.

Conclusion:

The Pluto 100 X 6 X 32 MM Side & Face Cutter (Type "B" Straight Teeth) is a highly versatile, durable, and precise milling tool that excels in a variety of milling operations. Whether you are side milling, face milling, slotting, or grooving, this cutter provides excellent cutting performance and a high-quality surface finish. Its straight teeth configuration and Type "B" design make it a reliable
