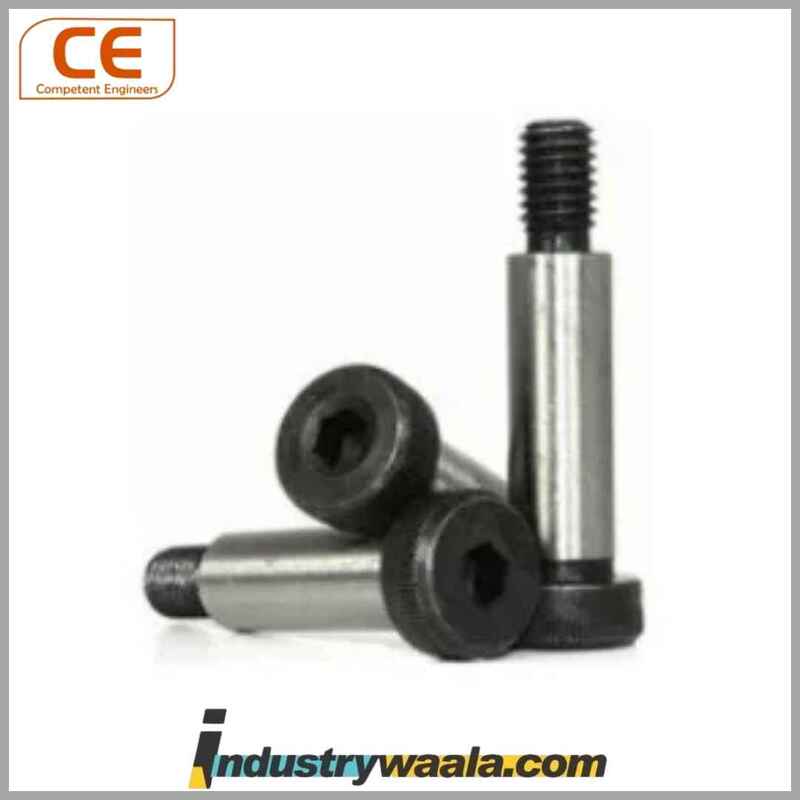

CE 6 - M5 X 12 MM Shoulder Screws Bolt Quantity : 5 pcs

The CE 6 - M5 x 12 mm Shoulder Screw is a versatile, high-performance fastening solution, specifically designed for secure fastening and low-friction, smooth rotational movement in a wide range of mechanical, automotive, robotics, and industrial applications. With a compact 12 mm length and M5 thread size, this shoulder screw provides a reliable, precision-engineered solution for systems that require both secure attachment and free motion. The unthreaded shoulder section facilitates rotational or pivoting motion, reducing friction and wear on moving components, which increases the efficiency and longevity of the system.

Key Features:

• Thread Size (M5): The M5 thread, with a nominal diameter of 5 mm, is perfect for light- to medium-duty applications that require secure fastening. The standard 0.8 mm thread pitch ensures compatibility with most systems that use M5 threads.
• Length (12 mm): The 12 mm length is ideal for applications where space is limited but strength and performance are still crucial. It provides a compact yet effective fastening solution.
• Unthreaded Shoulder: The unthreaded portion of the screw allows for smooth, low-friction rotation or pivoting. This enables parts to move freely without causing excessive wear, helping to extend the lifespan of mechanical systems.
• Material: Made from high-strength materials like stainless steel, carbon steel, or corrosion-resistant alloys, this M5 x 12 mm shoulder screw is built to endure mechanical stresses and withstand environmental factors.
• Finish Options: The screw is available with various protective coatings such as zinc plating, black oxide, or passivation, providing corrosion resistance and making it suitable for use in harsh environments.
• Head Type: The screw comes in a variety of head types (e.g., hex, socket, flat) to ensure compatibility with different installation tools and requirements.
• Thread Pitch: The M5 x 12 mm shoulder screw has a standard 0.8 mm thread pitch, providing secure fastening and proper alignment in mechanical systems.

Applications:

• Machinery & Equipment: The CE 6 - M5 x 12 mm shoulder screw is ideal for linkages, shafts, rotating arms, and other mechanical components requiring smooth, low-friction movement and secure attachment.
• Automotive Industry: This screw is commonly used in automotive applications, where it secures components like suspension systems, steering mechanisms, and engine parts, while also allowing for rotation or pivoting.
• Robotics & Automation: In robotics, automation systems, and conveyor belts, this shoulder screw ensures precise alignment and smooth motion, helping to improve the efficiency and accuracy of robotic arms and other moving parts.
• Electronics & Electrical Assemblies: The M5 x 12 mm shoulder screw is used for mounting brackets, heat sinks, and enclosures, where secure attachment and movement adjustments are necessary.
• Custom Fixtures & Structural Applications: Ideal for use in custom jigs, fixtures, and other structural applications, where accurate alignment and reliable motion are required.

Functionality:

The CE 6 - M5 x 12 mm shoulder screw is engineered to:

1. Allow Smooth Rotation & Pivoting: The unthreaded shoulder provides a low-friction surface, enabling smooth rotation or pivoting of attached components, reducing friction and wear on the system.
2. Ensure Precise Alignment: The shoulder ensures precise alignment of components, preventing misalignment and maintaining the integrity and functionality of the mechanical system.

Advantages:

• Durability & Strength: Designed to handle mechanical stresses, this shoulder screw offers exceptional durability, ensuring reliable performance over time.
• Corrosion Resistance: With available coatings such as zinc plating, black oxide, or passivation, the screw is highly resistant to corrosion, making it suitable for use in a variety of harsh environmental conditions.
• Versatility: The M5 x 12 mm shoulder screw can be used across various industries, including machinery, automotive, robotics, and electronics, offering a flexible and reliable fastening solution.
• Ease of Installation: Available in multiple head styles (e.g., hex, socket, flat), this shoulder screw is easy to install using common tools, improving efficiency and reducing downtime during assembly.
• Cost-Effective: The screw’s long-lasting durability reduces the need for frequent replacements, making it a cost-effective choice for high-demand applications.

The CE 6 - M5 x 12 mm Shoulder Screw is a high-quality, durable, and precision-engineered component, designed to provide secure fastening and smooth, low-friction motion for various mechanical, automotive, robotics, and industrial applications. Its compact size, high-strength materials, and corrosion-resistant features ensure reliable performance and longevity, making it an essential part of systems where both secure attachment and rotational movement are required. Whether used for light-duty or more complex applications, the M5 x 12 mm shoulder screw offers durability, reliability, and efficiency, ensuring smooth operation in a variety of industries.
