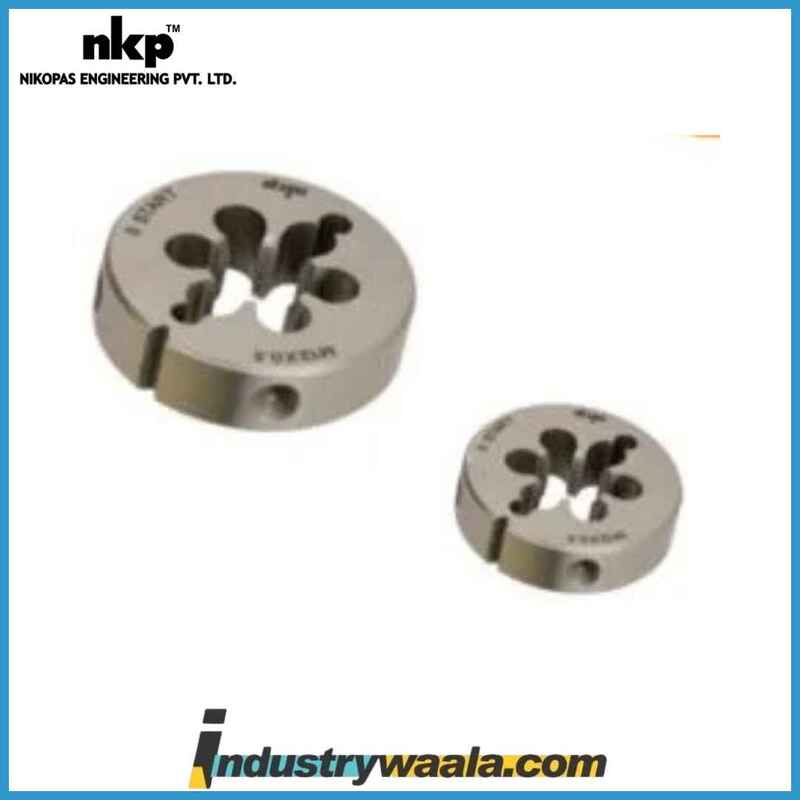

NKP 1/8 x 28 BSPT 1 Inch Dia High Speed Steel Circular Dies

The NKP 1/8 x 28 BSPT 1 Inch Dia High-Speed Steel Circular Die is a specialized cutting tool designed for threading applications. Let me break it down in detail:

Key Features:

1. NKP: This could refer to a brand or specific designation related to the die. It could indicate a specific range or type of product offered by a manufacturer.
2. 1/8 x 28 BSPT:
   • 1/8 refers to the size of the thread (1/8 inch in this case).
   • 28 indicates the number of threads per inch (TPI).
   • BSPT (British Standard Pipe Tapered) is a type of pipe thread standard used in many plumbing and piping applications, specifically for creating a tapered thread that ensures a leak-proof seal when two threaded parts are joined. BSPT threads are designed for use with tapered fittings, meaning the diameter decreases as you move along the length of the thread.
3. 1 Inch Diameter: The circular die has a total outside diameter of 1 inch. This diameter is typically the overall dimension of the die, not the size of the threads it cuts.
4. High-Speed Steel (HSS): High-speed steel is a strong and durable material known for maintaining hardness even at high temperatures. It is ideal for cutting tools because it offers excellent wear resistance and toughness. HSS dies can withstand the stresses of threading harder materials and are widely used in machining and metalworking.
5. Circular Die: This refers to the shape of the die, which is round. Circular dies are used for threading external parts like rods, bolts, and pipes. The die is turned onto the material to create the desired threads.

Applications:

• Pipe Threading: The BSPT threads are commonly used in industries where pipes are involved, including plumbing, gas, and hydraulic systems. The tapered design ensures a tight seal when used with compatible BSPT fittings.
• Metalworking: HSS dies are typically used to cut threads in metal, making this die useful for fabricating custom threaded parts or repairing threads.
• Precision Machining: HSS circular dies are used in applications requiring precise threading of small diameters or parts in mechanical assembly.

How It Works:

To use the NKP 1/8 x 28 BSPT 1-inch die, the circular die is typically placed in a die holder or tool post. The material being threaded is turned while the die is advanced along the part. The die cuts the threads into the material as it turns, creating the proper internal or external thread geometry.

Advantages:

• Durability: High-speed steel provides excellent wear resistance, making the die long-lasting.
• Precision: HSS dies create accurate, high-quality threads.
• Compatibility: BSPT threads are commonly used in various piping systems, making this die versatile for different industries.
