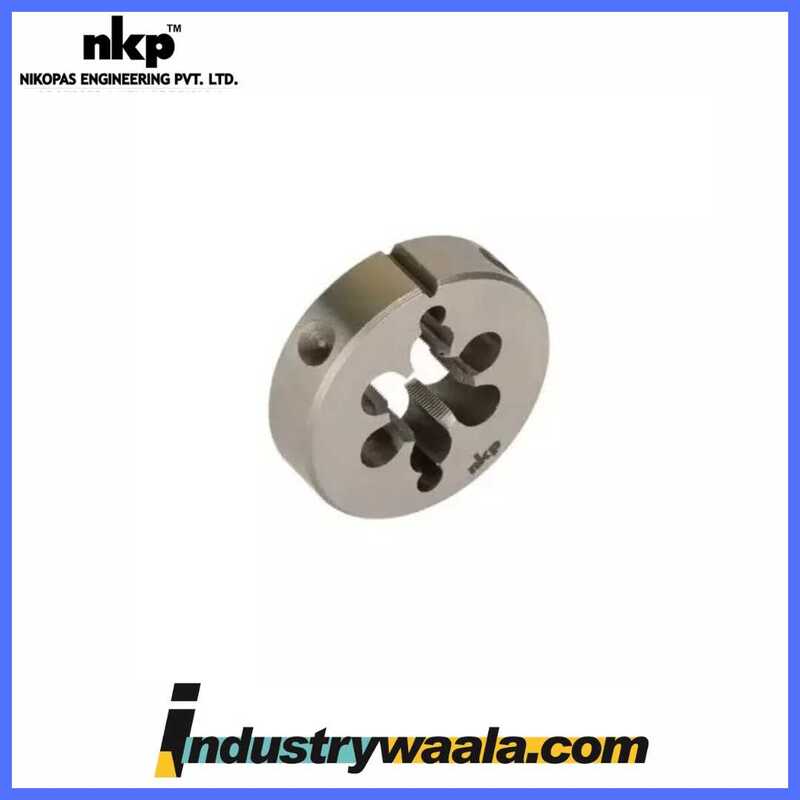

NKP 3/8 x 19 BSPT 2 Inch Dia Carbon Steel Circular Dies

The NKP 3/8 x 19 BSPT 2 Inch Dia Carbon Steel Circular Dies are high-precision tools designed for cutting BSPT (British Standard Pipe Tapered) threads on 3/8-inch diameter pipes or rods. These dies are made from durable carbon steel and are designed to provide efficient, accurate threading, commonly used in plumbing, hydraulic, and gas systems. Here is a detailed breakdown of the key features and specifications:

1. NKP (Brand/Type)

• NKP refers to the brand or product line of the die, known for producing high-quality, durable threading tools. NKP is recognized for providing precision-engineered dies that cater to a wide range of industrial applications where high-performance threading is essential.

2. 3/8 x 19 BSPT

• 3/8 x 19 BSPT refers to the size and thread type of the die:
  • 3/8″ is the diameter of the pipe or rod being threaded, specifically 3/8 inch (approximately 9.525 mm).
  • 19 BSPT refers to the BSPT thread specifications, meaning the die is used for cutting British Standard Pipe Tapered threads with 19 threads per inch (TPI). BSPT threads are designed with a taper to ensure a tight, secure seal as the thread diameter gradually decreases along the length of the pipe. This taper creates a reliable seal when the components are threaded together.

3. 2 Inch Dia

• The 2-inch diameter (approximately 50.8 mm) refers to the size of the circular die. This large diameter ensures that the die can be used effectively to cut 3/8-inch BSPT threads, providing ample room for cutting, while maintaining a high level of precision and durability throughout the threading process.

4. Carbon Steel

• The die is made from carbon steel, a material known for its strength, resilience, and long-lasting durability. Carbon steel is ideal for threading dies as it can withstand the mechanical stresses of cutting threads without dulling quickly. It also resists corrosion, ensuring that the die performs effectively in harsh industrial environments.

5. Circular Dies

• Circular dies are designed for cutting external threads on cylindrical workpieces such as pipes, rods, or bolts. The die is typically mounted in a die stock or holder that enables rotation while cutting the threads into the workpiece. Circular dies are widely used in applications that require precision threading for creating standardized threads that match the BSPT thread profile.

Applications:

• Pipe Threading: The NKP 3/8 x 19 BSPT 2 Inch Dia Carbon Steel Circular Die is primarily used to cut BSPT threads on 3/8-inch diameter pipes, typically found in plumbing, hydraulics, and gas systems. The tapered BSPT threads provide a tight, leak-proof seal essential for these systems.
• Industrial & Mechanical Work: Ideal for creating threads on parts and components used in machinery, industrial equipment, and piping systems, where precise and reliable connections are required.
• Fluid and Gas Systems: The BSPT threads created by this die ensure the creation of tight, secure seals in fluid and gas systems, making this die suitable for applications involving high-pressure fluids or gases.
• Hydraulic & Pneumatic Systems: Commonly used for creating threads for hydraulic and pneumatic systems, where leak-proof, high-pressure connections are critical for safe and optimal operation.

Key Features:

• Threading Capacity: The 2-inch die diameter is designed to cut 3/8-inch BSPT pipe threads, making it ideal for medium-sized pipes where precise thread cutting is required.
• Durability: Made from carbon steel, the die is highly resistant to wear and damage, ensuring long-lasting performance even under heavy usage in demanding industrial environments.
• Precision: The die creates accurate, standardized BSPT threads, ensuring that the cut threads meet industry standards and provide secure, leak-resistant connections when paired with BSPT fittings.
• Versatility: This die is suitable for a wide variety of applications, including plumbing, hydraulic systems, mechanical systems, and gas systems, making it versatile for a range of industrial sectors.

Conclusion:

The NKP 3/8 x 19 BSPT 2 Inch Dia Carbon Steel Circular Die is a durable, high-performance threading tool designed to cut BSPT threads on 3/8-inch diameter pipes or rods. Made from carbon steel, this die provides long-lasting sharpness, wear resistance, and precise cutting performance. The BSPT taper ensures tight, leak-proof seals, making this die perfect for use in plumbing, hydraulic, gas, and mechanical systems. With its 2-inch die diameter, the tool offers efficient and effective threading on medium-sized pipes, ensuring a secure, reliable connection in a wide range of industrial and mechanical applications.
