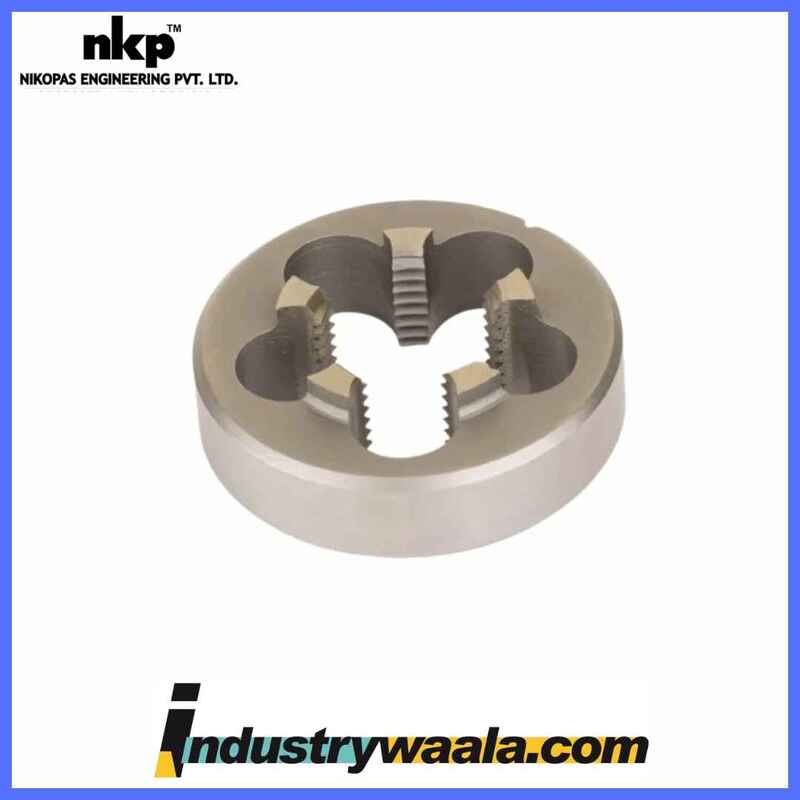

NKP 1"x 11 1/2 NPT 2.1/2 Inch Dia Carbon Steel Circular Dies

The NKP 1″ x 11 1/2 NPT 2 1/2 Inch Dia Carbon Steel Circular Dies are high-quality, precision-engineered threading tools designed to cut NPT (National Pipe Tapered) threads on 1-inch diameter pipes or rods. These dies are made from carbon steel, offering durability, strength, and long-lasting performance in various industrial applications. Below is a detailed breakdown of the key features and specifications of this threading die:

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP represents the brand or type of the die. NKP is a trusted name in precision tools, particularly for threading operations. The brand is known for producing durable, high-performance dies that deliver precise, accurate results in both general and industrial threading tasks.

2. 1″ x 11 1/2 NPT

• 1″ x 11 1/2 NPT specifies the size and thread type:
  • 1″ refers to the diameter of the pipe or rod being threaded, which is 1 inch (approximately 25.4 mm).
  • 11 1/2 NPT indicates the NPT (National Pipe Tapered) thread pattern, with 11 1/2 threads per inch (TPI). NPT threads are designed with a tapered profile, which allows them to form a tight, leak-proof seal when threaded components are connected. The 11 1/2 TPI offers a fine thread pitch that ensures precise and secure threading.

3. 2 1/2 Inch Dia

• The 2 1/2-inch diameter (approximately 63.5 mm) refers to the diameter of the circular die. This size is crucial for ensuring proper stability and alignment during the threading process. The larger diameter allows for smooth, consistent thread cutting on 1-inch diameter pipes.

4. Carbon Steel Construction

• This die is made from carbon steel, which is known for its strength, resilience, and durability. Carbon steel is capable of withstanding high-stress threading operations, ensuring that the die remains effective even after prolonged use. Additionally, it provides resistance to wear, abrasion, and corrosion, helping to maintain the die's sharpness and performance over time.

5. Circular Dies

• Circular dies are used for cutting external threads on cylindrical workpieces like pipes, rods, or bolts. The die is mounted in a die stock or holder and rotates to cut threads into the workpiece. The circular design ensures that the threads produced are uniform, precise, and smooth.

Applications:

• Pipe Threading: The NKP 1″ x 11 1/2 NPT 2 1/2 Inch Dia Carbon Steel Circular Die is ideal for cutting NPT threads on 1-inch diameter pipes, commonly used in plumbing, gas systems, hydraulic systems, and pneumatic applications. The NPT thread ensures a tight, leak-proof seal necessary for these systems.
• Hydraulic and Pneumatic Systems: This die is well-suited for creating NPT threads in hydraulic and pneumatic systems, which require secure, leak-proof connections capable of handling high pressures.
• Industrial and Mechanical Systems: This die is also used for threading components like fittings, connectors, and valves in industrial and mechanical systems, where high-quality, precise threads are essential.
• Fluid and Gas Systems: The NPT threads provide a tight seal, making this die an essential tool for fluid and gas systems, where safety and the integrity of the connections are paramount.

Key Features:

• Threading Capacity: The 2 1/2-inch die diameter provides stability and alignment during the threading process. This ensures smooth and accurate thread cutting on 1-inch diameter pipes.
• Durability: Made from carbon steel, the die offers excellent resistance to wear, corrosion, and abrasion, ensuring it remains effective over time. Carbon steel is ideal for demanding threading applications.
• Precision: The 11 1/2 TPI NPT threads offer fine, precise threading, which ensures that the die cuts uniform threads that meet NPT standards for tight, leak-proof connections.
• Versatility: This die is suitable for a wide range of industrial applications, including plumbing, hydraulics, gas systems, and mechanical systems, where reliable, high-quality threaded connections are necessary.

Conclusion:

The NKP 1″ x 11 1/2 NPT 2 1/2 Inch Dia Carbon Steel Circular Die is a high-performance tool that is designed to cut NPT threads on 1-inch diameter pipes. Made from carbon steel, it ensures long-lasting durability and resistance to wear and corrosion. The 11 1/2 TPI NPT threads offer fine, precise threads that provide tight, leak-proof seals in a variety of applications, including plumbing, hydraulic systems, gas systems, and mechanical systems. The 2 1/2-inch diameter ensures stability and accuracy during the threading process, making this die an ideal choice for professionals who need consistent, reliable threaded connections.
