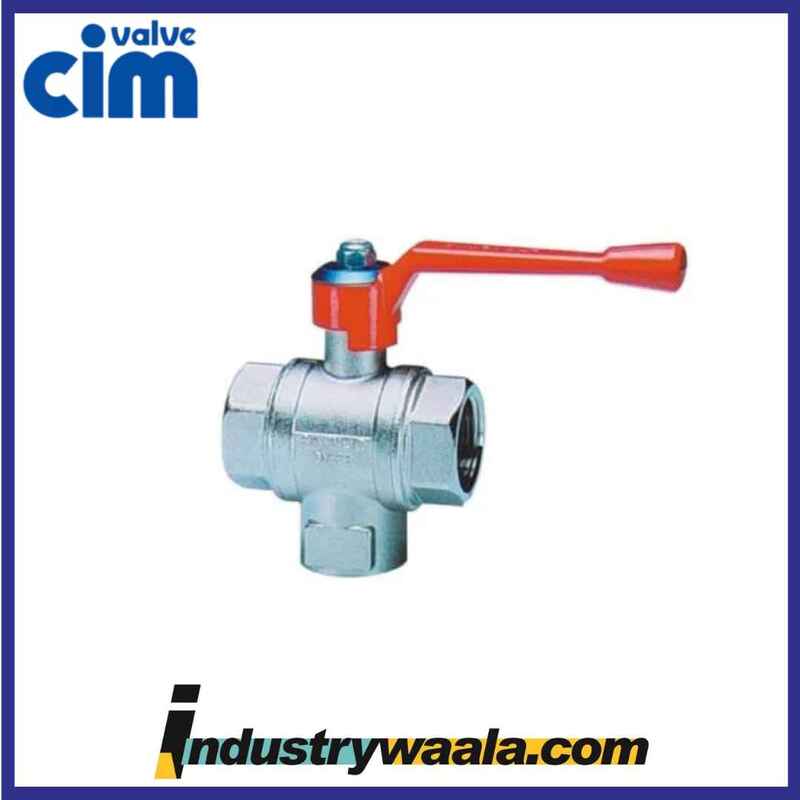

Cim 23, 3/4Inch & 20mm Forged Brass 3 Way Ball Valve, Screwed End

The CIM 23, 3/4-Inch & 20mm Forged Brass 3-Way Ball Valve, Screwed End is a versatile and durable valve designed for fluid flow control in systems where the ability to change the direction of the flow is required. This valve features a 3-way ball valve mechanism, allowing it to either direct, mix, or divide the flow of fluids, making it suitable for a variety of plumbing, HVAC, and industrial applications.

Key Features:

1. Forged Brass Construction:

   • The CIM 23 is constructed from forged brass, providing high strength, corrosion resistance, and durability.
   • Brass is ideal for applications involving water, gas, or non-corrosive fluids as it resists rust, oxidation, and wear, ensuring reliable long-term performance.

2. 3/4-Inch & 20mm Size:

   • Designed for 3/4-inch (20mm) pipe connections, this valve is ideal for medium-flow systems in both residential and commercial applications.
   • The 3/4-inch size is commonly used in plumbing, heating, cooling, and industrial fluid control systems.

3. 3-Way Ball Valve Mechanism:

   • The 3-way ball valve allows for fluid flow to be diverted, mixed, or split depending on the specific design of the valve.
     • In the diverting type, the flow is directed to one of two outlets, often used in circulating systems or cooling systems.
     • In the mixing type, it allows fluids from two different sources to combine and flow into one outlet, often used in blending systems like those in HVAC or industrial processes.
   • The ball has three ports and is rotated by the valve handle, controlling how the fluid is directed or mixed.

4. Screwed End Connections:

   • The screwed end connections ensure easy installation into threaded pipes, offering a leak-proof and secure fit.
   • These connections typically use BSPT (British Standard Pipe Thread) or BSPP (British Standard Parallel Pipe), ensuring compatibility with a wide range of systems and reliable sealing.

5. Manual Operation:

   • The CIM 23 valve is operated manually using a lever or handle, allowing for quick and easy control of fluid flow.
   • This is ideal for systems that need to be adjusted manually, with operators controlling the direction or flow rate based on system requirements.

Potential Specifications:

• Model Number: CIM 23
• Nominal Size: 3/4 inch (20mm)
• Material: Forged Brass – strong, durable, and corrosion-resistant.
• Valve Type: 3-Way Ball Valve – allows for diverting, mixing, or splitting the fluid flow.
• End Connections: Screwed End – compatible with threaded pipes (typically BSPT or BSPP).
• Pressure Rating: Typically suitable for medium-pressure systems, often rated for 16-25 bar, depending on application specifics.
• Temperature Range: Operates within a typical range of -20°C to 120°C, depending on the fluid and conditions of use.
• Flow Control: Offers on/off control with the ability to change direction or mix flows.
• Handle Type: Manual lever or handle for ease of operation.
• Seals: Leak-proof seals to ensure no fluid leakage during operation.

Applications:

1. Plumbing Systems:

   • Ideal for diverting or mixing water flow in plumbing systems. It’s commonly used in water distribution systems, where controlling the direction of flow or mixing of hot and cold water is required.

2. HVAC Systems:

   • The CIM 23 valve is often used in hydronic heating and cooling systems, where water or other fluids need to be redirected to various parts of the system, or where temperature mixing is required.
   • The mixing valve version can be used to combine fluids of different temperatures for precise control in radiators or heat exchangers.

3. Industrial Systems:

   • In industrial fluid systems, the CIM 23 valve provides flow control for fluid handling, chemical processing, and water treatment systems.
   • It’s also useful in irrigation systems where water needs to be distributed across multiple zones, or where flow diversion is needed for maintenance or control.

4. Pneumatic or Hydraulic Systems:

   • It can also be used in pneumatic or hydraulic systems where controlling the direction of air or liquid is critical for machinery or operational processes.

Advantages:

• Versatility: The 3-way ball valve provides flexibility, allowing for flow direction changes, mixing, or splitting based on system requirements.
• Durability: The forged brass construction ensures the valve can withstand high pressures and harsh conditions, offering long-lasting reliability.
• Ease of Installation: Screwed end connections make it easy to install in a wide variety of systems without specialized tools.
• Precise Control: Manual operation via lever or handle allows for easy and accurate flow control, especially in systems requiring periodic adjustments.
• Leak-Proof: The leak-proof seals ensure that the valve maintains integrity under pressure, preventing fluid loss and system inefficiency.

Conclusion:

The CIM 23, 3/4-Inch & 20mm Forged Brass 3-Way Ball Valve, Screwed End is an excellent solution for applications requiring fluid diversion, mixing, or splitting. Its forged brass construction ensures durability, while the 3-way ball valve mechanism allows precise flow control. The valve’s screwed end connections and manual operation make it easy to install and operate, making it ideal for plumbing, HVAC, industrial, and irrigation systems.
