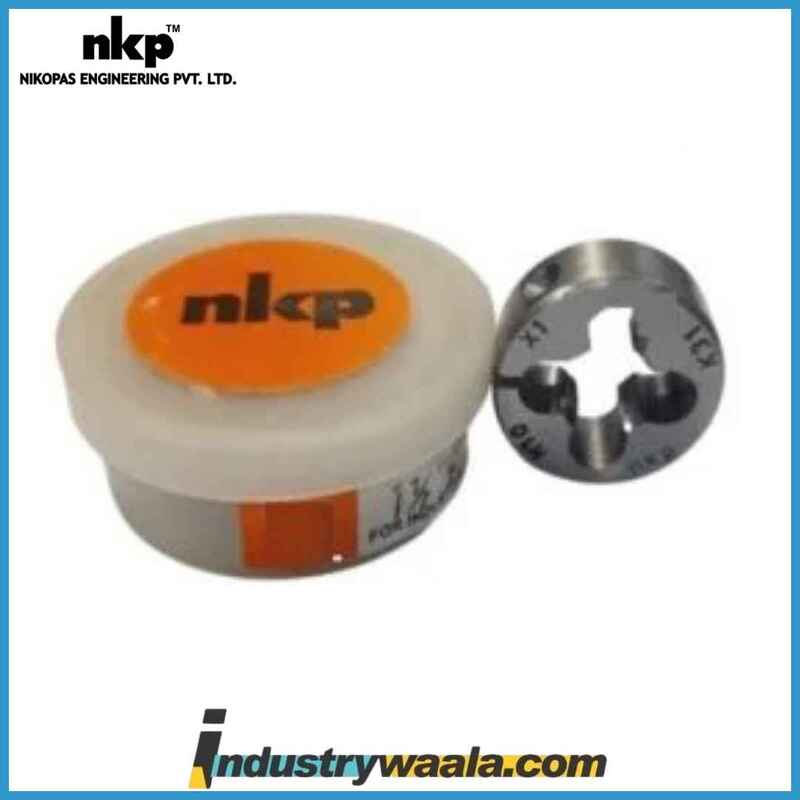

NKP 1"x 11 1/2 NPT 2.1/2 Inch Dia High Speed Steel Circular Dies

The NKP 1" x 11 1/2 NPT 2 1/2 Inch Dia High-Speed Steel Circular Die is a heavy-duty, high-precision threading tool designed for creating 1-inch NPT (National Pipe Tapered) threads with a 11 1/2 threads per inch (TPI) pitch. This die is ideally suited for industrial, mechanical, and high-pressure piping applications, providing durable, accurate, and leak-proof threads for a wide variety of systems. Below is a comprehensive breakdown of the tool's features:

Detailed Description:

1. NKP:
   • NKP refers to the manufacturer or product line known for producing high-quality, durable threading tools. NKP products are designed for precision and long-lasting performance in industrial applications that require high durability and accuracy.
2. 1" x 11 1/2 NPT:
   • 1" refers to the nominal pipe size or the diameter of the thread. A 1-inch NPT thread is commonly used in a variety of piping systems, offering a balance between strength and ease of connection.
   • 11 1/2 TPI refers to the thread pitch, which indicates the number of threads per inch. An 11 1/2 TPI pitch is a medium thread that ensures good thread engagement and a secure fit for a variety of applications. This pitch is particularly useful for creating precise, tight connections that are needed for fluid or gas transfer.
   • NPT (National Pipe Tapered) is the standard thread type used for tapered pipe threads in the United States. The taper ensures that the threads gradually become tighter as the pipe fittings are joined, creating a tight, leak-proof seal. NPT threads are commonly used in applications where secure connections under high pressure are necessary.
3. 2 1/2 Inch Diameter:
   • The 2 1/2-inch diameter refers to the overall size of the die, which makes it suitable for threading larger pipes or fittings. The larger diameter of the die provides increased stability during use, allowing for more consistent and accurate thread cuts.
   • A 2 1/2-inch die is ideal for use in industrial settings, particularly in plumbing, hydraulic, and gas systems where threaded components are common.
4. High-Speed Steel (HSS):
   • Constructed from High-Speed Steel (HSS), this die is designed to withstand high-speed cutting and extreme heat while maintaining sharpness over extended periods. The HSS material is tough, wear-resistant, and offers excellent performance even under continuous, high-pressure conditions.
   • HSS tools are favored in heavy-duty applications because they resist dulling and maintain their cutting edges, reducing downtime and increasing efficiency in threading operations.
5. Circular Die Design:
   • The circular design allows the die to be used for cutting external threads on pipes, rods, and other cylindrical components. As the die rotates around the workpiece, it cuts threads smoothly and evenly.
   • This die design can be used with manual die holders, lathe machines, and threading machines, making it a versatile option for both manual and automated threading operations.

Applications:

• Pipe Threading: The 1-inch NPT threads are commonly used in plumbing, gas, and hydraulic systems, where leak-proof and secure connections are crucial. This die is ideal for threading pipes and fittings in various industries that require high-pressure, sealed connections.
• Industrial Systems: The 1-inch size is a typical thread size in industrial applications that involve fluid or gas transportation. Industries such as construction, chemical processing, oil and gas, and automotive manufacturing frequently use 1-inch NPT threads for reliable piping and system connectivity.
• High-Pressure Systems: NPT threads are specifically designed for creating tight, leak-proof seals in high-pressure environments, making them the perfect choice for hydraulic, pneumatic, and gas transport systems.

Advantages:

• Durability: Made from High-Speed Steel (HSS), the die provides exceptional hardness, wear resistance, and heat tolerance, making it ideal for use in demanding industrial applications.
• Precision Threading: The 11 1/2 TPI ensures that the threads are cut with high precision, contributing to a secure and tight fit for components. This is important for creating leak-proof connections that are essential in high-pressure environments.
• Leak-Proof Seals: The NPT tapered thread design guarantees that the threads create a tight, leak-proof seal, which is vital for maintaining pressure and preventing fluid or gas leaks in plumbing, gas, and hydraulic systems.
• Stability and Accuracy: The 2 1/2-inch diameter of the die offers enhanced stability during threading operations. This helps to reduce errors, vibrations, and thread deformation, ensuring that the threads are cut accurately and consistently.
• Long Tool Life: The HSS material ensures that the die remains sharp and durable over time, reducing the need for frequent replacements and improving the overall efficiency of threading operations.

Summary:

The NKP 1" x 11 1/2 NPT 2 1/2 Inch Dia High-Speed Steel Circular Die is a precision threading tool designed for creating 1-inch NPT tapered threads with 11 1/2 threads per inch. Constructed from High-Speed Steel (HSS), it offers exceptional durability, wear resistance, and heat resistance, making it ideal for high-performance threading in plumbing, gas, hydraulic, and high-pressure piping systems. The 2 1/2-inch diameter provides stability and accuracy during use, while the NPT tapered threads ensure tight, leak-proof seals for secure connections. This die is essential for creating reliable, durable threaded connections in industrial and commercial systems that require precision and longevity.
