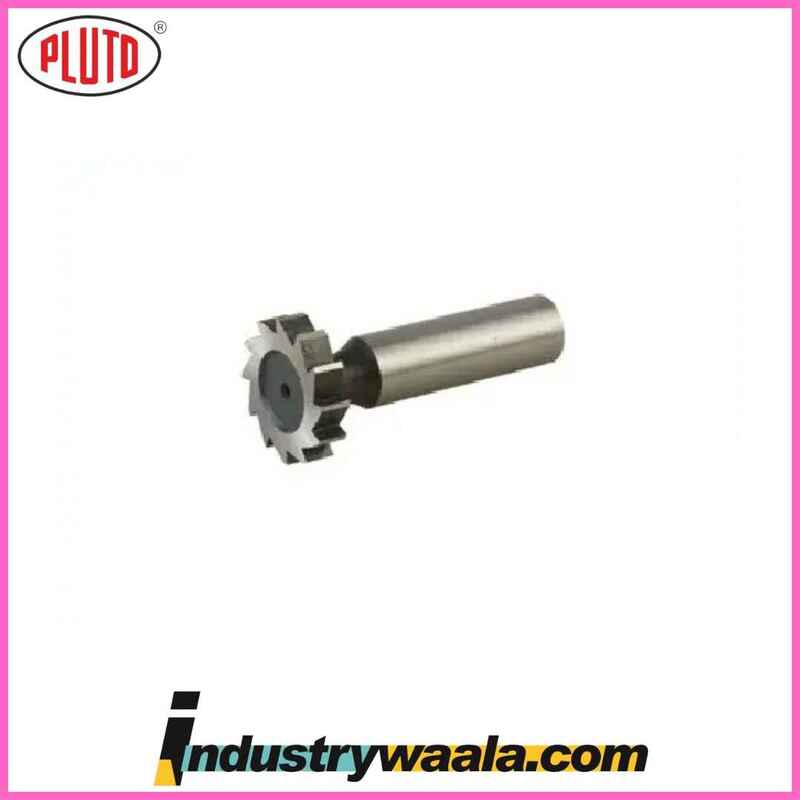

Pluto 19.5 X 10 X 4 X 56 X 4 X 7.5 MM Woodruff Key Slot Cutters

The Pluto 19.5 x 10 x 4 x 56 x 4 x 7.5 mm Woodruff Key Slot Cutters are highly precise cutting tools designed specifically for machining Woodruff key slots in various mechanical components such as shafts, gears, pulleys, and sprockets. These cutters are engineered for high-performance and durability, ensuring clean and accurate keyway cuts in both manual and CNC machining applications.

Key Features:

1. High Precision Cutting: The Pluto Woodruff Key Slot Cutters are manufactured with precision to create Woodruff keyways with tight tolerances. The specific dimensions of 19.5 x 10 x 4 x 56 x 4 x 7.5 mm ensure accurate cutting of keyways that fit perfectly with the corresponding Woodruff keys. This precision is critical for creating secure, slip-free connections between rotating machine components.
2. Durable Material Construction: These cutters are typically made from high-speed steel (HSS) or carbide, depending on the model, offering excellent durability, wear resistance, and the ability to maintain sharp cutting edges. The material choice makes them ideal for both general-purpose and heavy-duty machining tasks, providing long tool life and reducing the frequency of tool replacements.
3. Optimized Cutter Dimensions:
   • Overall Length: 56 mm
   • Cutter Diameter: 10 mm
   • Cutting Depth: 7.5 mm
   • Shank Diameter: 4 mm
   • Key Slot Width: 4 mm (Cutting Width)

   The 4 mm key slot width and the 7.5 mm cutting depth make the cutter ideal for creating Woodruff keyways that match standard component sizes. The shank diameter of 4 mm ensures compatibility with a wide range of machine tool holders, allowing for secure and easy installation.

4. Efficient Keyway Formation: The Woodruff key slot cutters are designed for efficient material removal, enabling smooth, accurate cutting with minimal effort. This efficiency reduces machine time and ensures that the keyway is cut cleanly, reducing the need for secondary finishing operations. The cutter geometry is designed to minimize vibration during operation, resulting in high-quality slots with smooth edges.
5. Versatile Applications: The Pluto Woodruff Key Slot Cutters can be used in a variety of industries and applications, including:
   • Automotive Manufacturing: Ideal for cutting keyways in engine components, gears, and other rotating parts.
   • Industrial Machinery: Used to machine key slots in shafts and other mechanical assemblies that require a secure, tight fit.
   • Aerospace & Defense: Precision cutting for aerospace components requiring keyways for high-performance machinery.
   • Tool & Die Making: Essential for creating Woodruff keyways in high-precision tools and dies used in manufacturing.
6. Easy to Use: Designed for ease of operation, the cutter's 4 mm shank diameter ensures that it can be easily installed in standard milling machine tool holders and CNC machines. Its precise design also reduces tool changeover time and minimizes setup errors, contributing to greater efficiency in the workshop.
7. Long-Lasting Tool Life: Thanks to the high-quality materials and precise manufacturing processes, these cutters offer long-lasting tool life and excellent resistance to wear. This ensures consistent cutting performance over extended periods, minimizing tool replacement and downtime in high-volume production environments.

Technical Specifications:

• Overall Length: 56 mm
• Cutter Diameter: 10 mm
• Cutting Depth: 7.5 mm
• Shank Diameter: 4 mm
• Key Slot Width (Cutting Width): 4 mm
• Material: High-Speed Steel (HSS) or Carbide (depending on the model)
• Tool Type: Woodruff Key Slot Cutter

Benefits:

• High Precision: Produces precise and uniform keyways for a secure fit between shafts and their associated components.
• Durability: Made from premium materials like HSS or carbide, providing excellent wear resistance and extended tool life.
• Efficient Cutting: Optimized cutter geometry ensures smooth and fast material removal, reducing cutting time.
• Versatility: Suitable for various applications across automotive, aerospace, industrial machinery, and tool-making industries.
• Reduced Downtime: Easy installation and compatibility with standard tool holders mean less downtime during tool changes.

Applications:

• Automotive Industry: Used to cut keyways in rotating components such as engine parts, gears, and pulleys.
• Industrial Machinery: Ideal for machining key slots in shafts, couplings, and other mechanical assemblies.
• Aerospace: For creating keyways in components that require high precision and reliability.
• Tool & Die Making: Essential for creating key slots for tooling, dies, and other high-precision parts.
• General Engineering: Used across various mechanical engineering applications where secure and precise keyway formations are needed.

Summary:

The Pluto 19.5 x 10 x 4 x 56 x 4 x 7.5 mm Woodruff Key Slot Cutters are robust, high-precision cutting tools that provide an efficient solution for machining Woodruff keyways. Their durable construction, versatile design, and long tool life make them a reliable choice for a wide range of industries, including automotive, aerospace, industrial machinery, and tool-making. With precise key slot formation and efficient cutting action, these cutters help improve productivity and reduce operational costs in high-precision manufacturing processes
