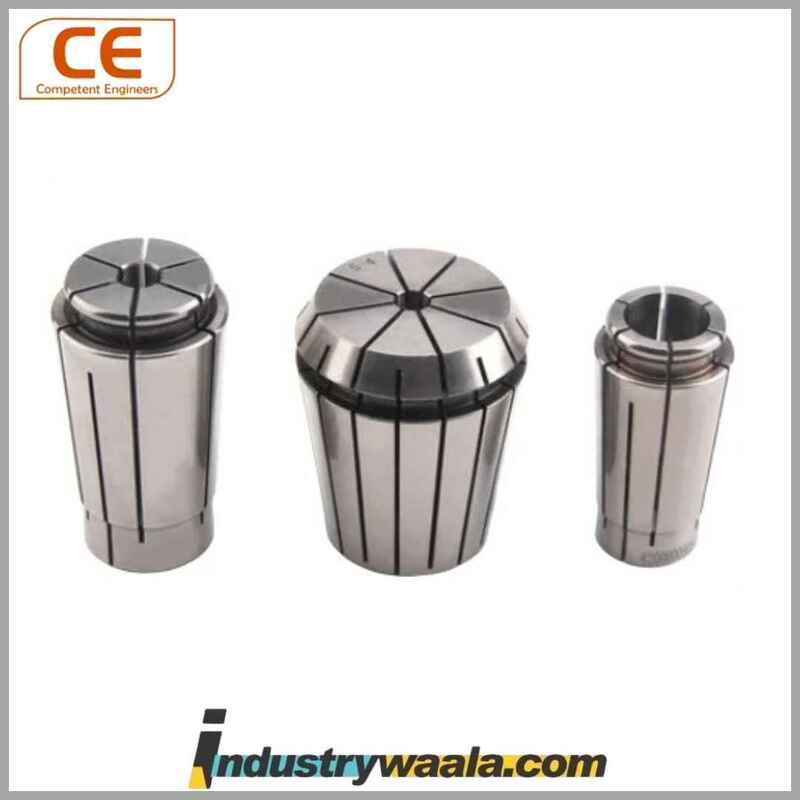

CE ER-40, 23 MM ER Collets Quantity : 2 pcs

The CE ER-40, 23 mm ER Collet is a high-precision tool designed for securely holding tools with a maximum diameter of 23 mm in ER-40 collet chucks, commonly used in CNC machining, milling, and turning operations. This collet ensures accurate tool-holding for a wide range of machining tasks, offering superior stability and minimal runout during high-speed and precision machining. It is particularly well-suited for industries such as aerospace, automotive, metalworking, and mold-making, where precision and reliability are essential.

Long Description:

The CE ER-40, 23 mm ER Collet offers the following features:

1. Collet Series (ER-40):
   • The ER-40 series is one of the most widely used collet systems in the machining industry, designed for precision and high-performance applications.
   • The ER-40 system allows for a wide range of tool diameters to be securely held in place, with the 23 mm size catering to tools of a medium diameter, such as drills, end mills, and reamers.
2. Size (23 mm):
   • The 23 mm size indicates that the collet can securely hold tools with a maximum diameter of 23 mm. This makes it ideal for a wide range of tools used in both light and heavy-duty machining operations, providing versatility in various applications.
   • The 23 mm size ensures a stable grip for tools, which is crucial for producing high-precision workpieces with minimal tool deflection or vibration.
3. Material and Durability:
   • Typically made from high-strength steel or alloy materials, the CE ER-40, 23 mm collet is engineered for durability and wear resistance. The material is treated for increased hardness, enabling the collet to withstand the stresses and forces encountered during high-speed machining.
   • The hardened steel construction ensures that the collet maintains its shape and performance even under heavy-duty operations, providing long-lasting reliability.
4. Precision and Accuracy:
   • The CE ER-40, 23 mm collet is manufactured to tight tolerances, ensuring high concentricity and minimal runout. This level of precision is critical for reducing tool vibrations, maintaining tool stability, and ensuring high-quality results in machining tasks.
   • The collet provides uniform clamping force around the tool, preventing slippage and minimizing misalignment during operations, which leads to better surface finishes and part accuracy.
5. Applications:
   • The CE ER-40, 23 mm collet is suitable for a variety of machining operations, including milling, drilling, reaming, tapping, and grinding. It is commonly used in CNC machines, milling machines, and lathes for both light and heavy-duty tasks.
   • Industries such as aerospace, automotive, medical device manufacturing, and mold-making benefit from the precision and reliability that this collet provides for holding tools during complex operations.
6. Design:
   • The ER-40 collet features a tapered, segmented design that allows it to expand and contract evenly when tightened, ensuring an even grip on the tool.
   • This tapered design provides uniform tool holding across the circumference, preventing vibration and deflection during high-speed operations. The collet’s construction ensures a firm and secure grip for the tool, increasing the precision and quality of the machining process.
7. Installation and Use:
   • The CE ER-40, 23 mm collet is inserted into an ER-40 collet chuck and tightened with a collet nut. This system ensures the tool is securely held during machining and allows for quick tool changes.
   • The collet system is easy to install and remove, making it ideal for environments where frequent tool changes are required, such as in high-production settings.

Benefits:

• Precision Tool Holding: Ensures minimal runout and tool deflection, providing highly accurate results in machining.
• Durability: Made from high-quality, heat-treated steel, the collet is built to withstand the stresses of high-speed and heavy-duty machining.
• Versatility: Suitable for a wide range of tools up to 23 mm in diameter, making it highly versatile for different types of machining operations.
• Reduced Vibration: The collet’s design ensures minimal vibration during operation, leading to cleaner cuts and improved surface finishes.
• Fast Tool Changes: The ER-40 collet system allows for quick and easy tool changes, reducing downtime and improving productivity.

Summary:

The CE ER-40, 23 mm ER Collet is a precision tool designed for holding tools with diameters up to 23 mm in ER-40 collet chucks. Its durable construction, high-precision design, and versatile application make it ideal for use in industries such as aerospace, automotive, and general manufacturing. The collet ensures stable and secure tool-holding, minimal runout, and accurate results, providing optimal performance in both light and heavy-duty machining operations.
