| Specification | Details |
|---|---|
| Brand | INGCO |
| Model | CTLI2005 |
| Product Type | Cordless Hydraulic Crimping Tool |
| Voltage | 20V |
| Crimping Range | 16–400 mm² |
| Crimping Force | 120 kN |
| Crimp Cycle | 6–18 seconds, depending on cable size |
| Stroke | 42 mm |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 & 400 mm² |
| Battery | 2 × 20V 5.0Ah |

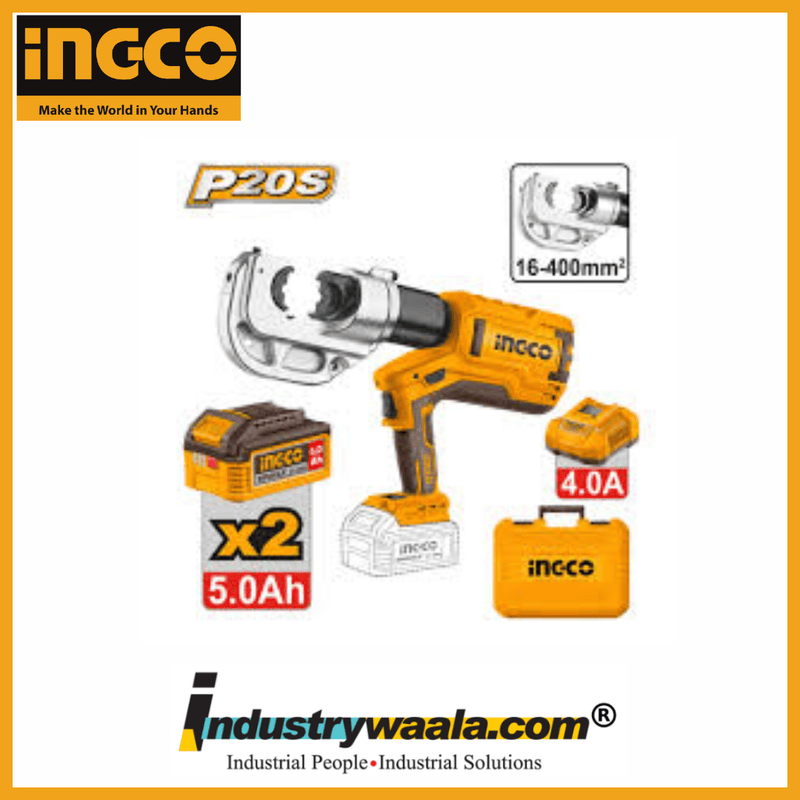

The INGCO CTLI2005 Cordless Hydraulic Crimping Tool is a professional battery-powered crimping solution designed for efficient and reliable crimping of suitable electrical cable lugs and terminals. Powered by a 20V cordless system, it provides a powerful 120 kN crimping force and supports a wide 16–400 mm² crimping range. The hydraulic mechanism delivers controlled crimping pressure, while the cordless design provides convenient operation without a direct power connection. The tool includes two 20V 5.0Ah batteries, a 4A charger, crimping dies, hydraulic fluid, and service accessories, making it suitable for electrical installation, industrial maintenance, cable termination, and professional field applications.
Key Features
1. Powerful 120 kN Hydraulic Crimping Force
The CTLI2005 delivers up to 120 kN of crimping force, providing strong hydraulic pressure for suitable cable lug and terminal crimping applications.
2. Wide 16–400 mm² Crimping Range
The tool supports crimping sizes from 16 to 400 mm², making it suitable for a wide variety of compatible electrical cables and terminals. The supplied dies cover 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400 mm².
3. 20V Cordless Operation
The cordless 20V battery-powered design provides convenient operation for workshop and field applications where portability and freedom from a mains power connection are important. The package includes two 5.0Ah battery packs and a 4A charger.
4. Fast Hydraulic Crimping Cycle
The CTLI2005 provides a 6–18 second crimp cycle, depending on cable size, helping improve productivity during repeated cable termination work. Its 42 mm stroke supports the hydraulic crimping mechanism.
5. LED Usage Count Display
An LED usage count display helps users monitor tool operation during repeated crimping work. The package also includes hydraulic fluid and sealing-ring sets for maintenance support.
