| Specification | Details |
|---|---|
| Brand | INGCO |
| Model | HHCT01240 |
| Product Type | Hydraulic Crimping Tool |
| Crimping Range | Cu 16–300mm² |
| Crimping Force | 70KN |
| Crimping Type | Hexagon Crimping |
| Stroke | 18mm |
| Length | Approx. 475mm |
| Tool Weight | Approx. 3.6kg |
| Box Weight | Approx. 1.8kg |

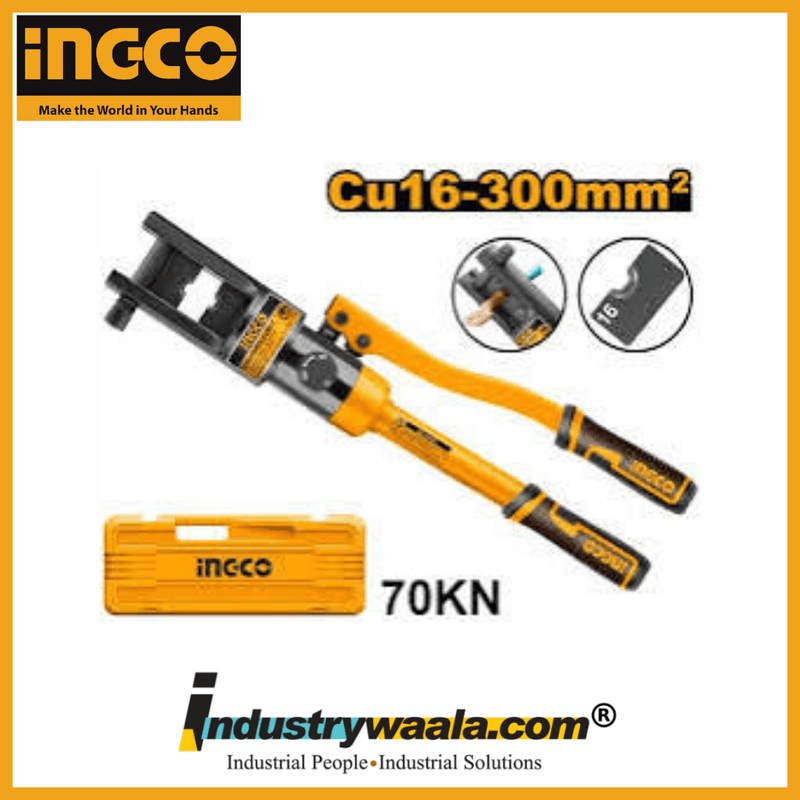

The INGCO HHCT01240 Hydraulic Crimping Tool is a manual hydraulic crimping tool designed for hexagonal crimping of compatible copper cable terminals and conductors. It offers a Cu 16–300mm² crimping range and a maximum 70KN crimping force, making it suitable for electrical installation, cable termination and maintenance applications.
The tool features an 18mm stroke and an approximate 475mm overall length. Its hydraulic mechanism provides high crimping force while the hexagon crimping profile is designed for compatible cable lugs and terminals.
The HHCT01240 includes 11 crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm². It also includes a sealing O-ring set and is packed in a BMC carrying case for storage and transportation.
6. Key Features
16–300mm² copper cable crimping range.
70KN maximum crimping force.
Hexagon crimping design for compatible terminals.
18mm hydraulic stroke.
Approx. 475mm tool length.
Includes 11 interchangeable crimping dies.
Supplied with sealing O-ring set and BMC case.
