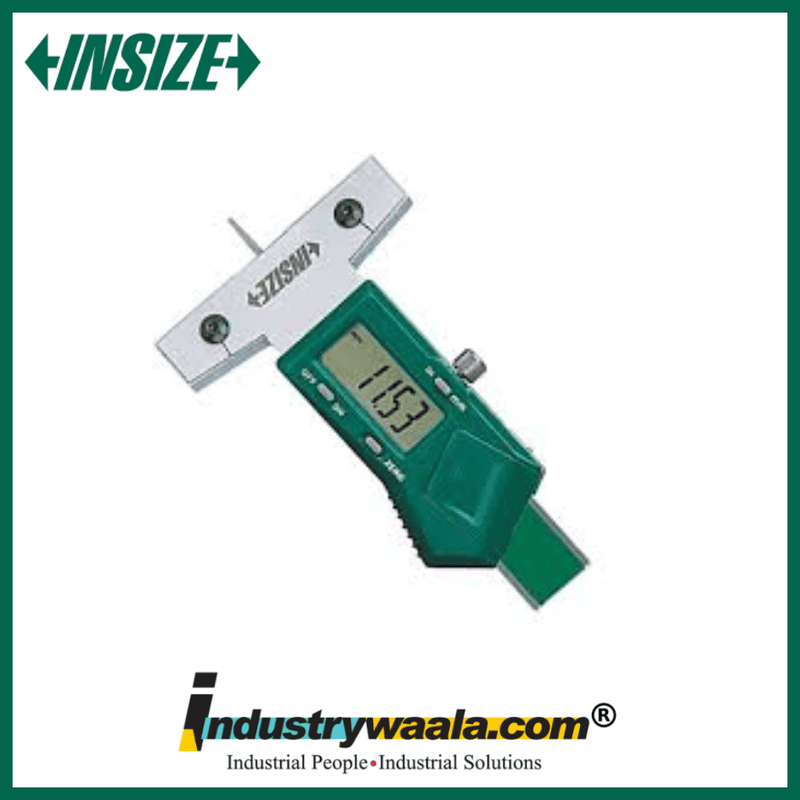

The INSIZE 1145-25A Mini Digital Depth Gauge is a compact precision measuring instrument designed for measuring the depth of small grooves, holes, and tire treads. It provides a 0–25 mm / 0–1" measuring range, 0.01 mm / 0.0005" resolution, and ±0.03 mm accuracy. The gauge is made of stainless steel and features a digital LCD display for quick and convenient readings.
Key Features
- 0–25mm / 0–1" Measuring Range
The 1145-25A is designed for depth measurements up to 25 mm, making it particularly useful for small holes, grooves, recesses, and tire tread inspection. - High Measurement Precision
With ±0.03 mm accuracy and 0.01 mm / 0.0005" resolution, the digital gauge provides precise and easy-to-read measurements for inspection applications. - Compact Mini Design
Its compact construction makes the gauge convenient for measuring small or confined features where a larger depth gauge may be difficult to position. - Easy Digital Operation
The gauge features ON/OFF, ZERO, and mm/inch buttons. It also includes automatic power-off functionality, helping conserve battery life. - Durable Stainless-Steel Construction
The 1145-25A is manufactured from stainless steel and uses a CR2032 battery. A zero-set surface is supplied for proper zero adjustment before measurement. Optional data-output accessories are also available.
