| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 1537-20 |
| Product Type | Digital Chamfer Gauge |
| Category | Chamfer Measuring Tool |
| Measuring Range | 0–20mm / 0–0.787" |
| Accuracy | ±0.05mm |
| Resolution | 0.01mm / 0.0005" |
| Chamfer Angle | 45° |
| Display | Digital |
| Unit Conversion | mm / inch |

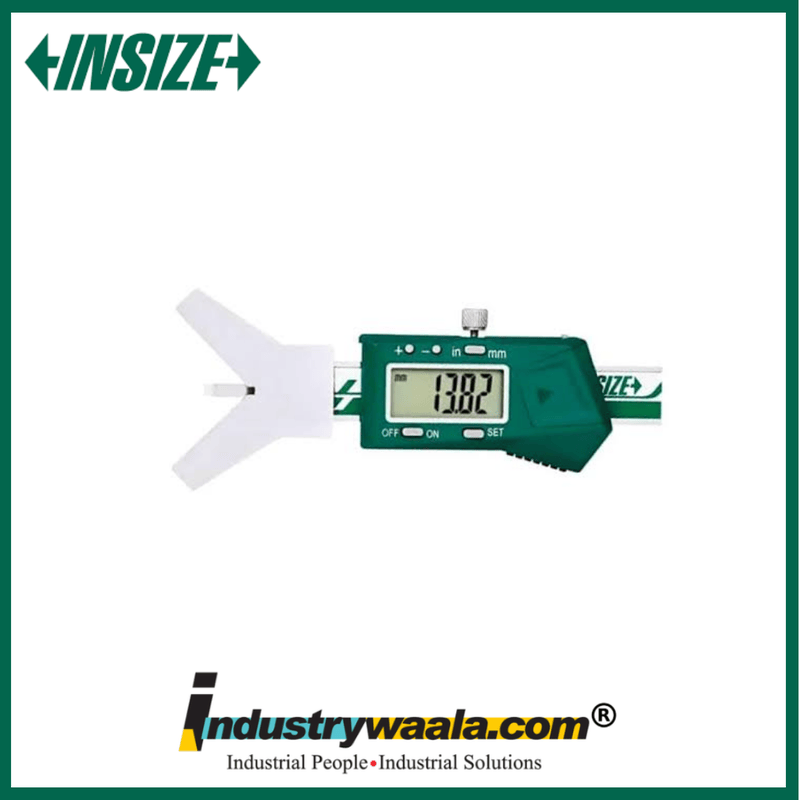

The INSIZE 1537-20 Digital Chamfer Gauge is a precision measuring instrument designed for checking 45° chamfer lengths on machined components and edges. With a 0–20mm / 0–0.787" measuring range, 0.01mm / 0.0005" resolution and ±0.05mm accuracy, it provides clear digital readings for dimensional inspection and quality-control applications.
The gauge features a digital display with mm/inch conversion, on/off, zero and preset functions, making it convenient for routine measurement tasks. Its stainless-steel construction is suitable for professional use in machine shops, CNC machining facilities, workshops, manufacturing units and inspection departments.
The INSIZE 1537-20 includes a pin gauge for zero setting and supports data output for compatible measurement-data collection systems. Automatic power-off and movement-activated power-on provide additional convenience during inspection work.
Key Features
- 0–20mm / 0–0.787" measuring range for chamfer dimensions.
- Designed specifically for 45° chamfer length measurement.
- 0.01mm / 0.0005" resolution for detailed digital readings.
- ±0.05mm accuracy for dimensional inspection.
- Digital display with mm/inch conversion and preset functions.
- Stainless-steel construction for professional industrial use.
- Supplied with a pin gauge for zero setting.
- Automatic power-off and data-output functionality.
- Suitable for machining, manufacturing and quality-control inspection.
