| Specification | Details |
|---|
| Brand | INSIZE |
| Model | 2141-202A |
| Product Type | Digital Depth Gauge |
| Measuring Range | 0–300 mm / 0–12" |
| Indicator Stroke | 12.7 mm / 0.5" |
| Resolution | 0.01 mm / 0.0005" |
| Accuracy | ±0.02 mm |
| Base Size | 101.5 × 17 mm |
Non-returnable
₹13,563.00 ₹15,000.00
Product Details
Ratings & Reviews
Product Details
Product Details

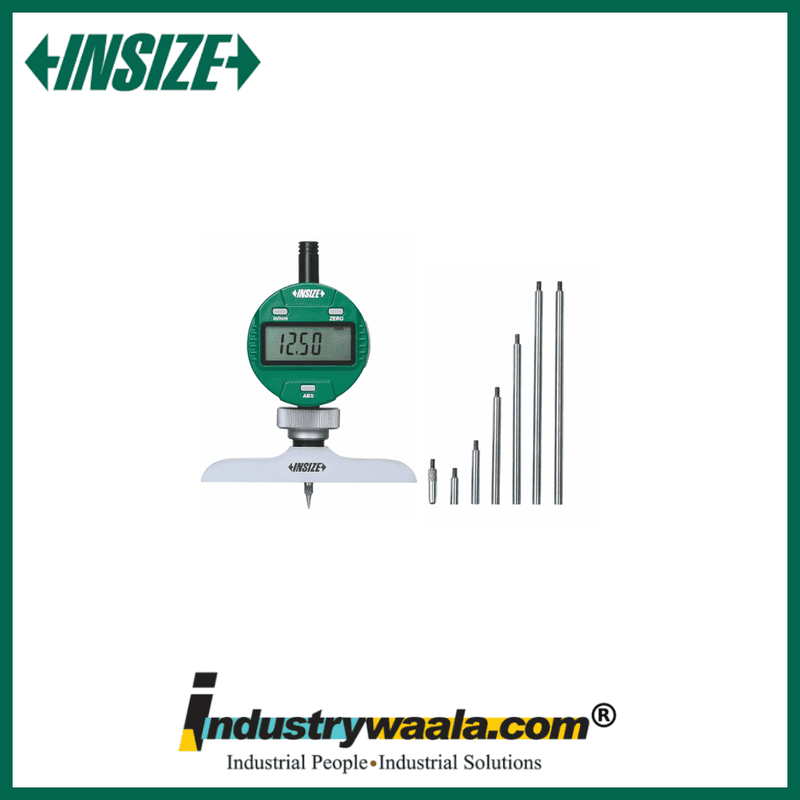

The INSIZE 2141-202A Digital Depth Gauge is a precision depth-measuring instrument designed for accurate measurement of deep holes, grooves, recesses, steps, and other internal features. It offers a 0–300 mm / 0–12" measuring range, 0.01 mm / 0.0005" resolution, and ±0.02 mm accuracy. Its 101.5 × 17 mm wide stainless-steel base provides stable positioning during measurement.
Key Features
- Wide 0–300mm / 0–12" Measuring Range
The 2141-202A provides a measuring range of 0–300 mm, making it suitable for deep-hole, groove, recess, and component inspection applications. - High-Precision Digital Measurement
It features 0.01 mm / 0.0005" resolution and ±0.02 mm accuracy, providing precise digital readings for professional dimensional inspection. - Wide Stainless-Steel Base
The 101.5 × 17 mm base offers a broad and stable reference surface, helping maintain consistent positioning on larger components and workpieces. - Multiple Extension Rods & Measuring Tips
The gauge is supplied with 12.5, 25, 50, 75, and 100 mm extension rods, along with pointed and ball tips. The ball tip is suitable for flat surfaces, while the pointed tip is useful for concave or complicated surfaces. - Advanced Digital Functions & Data Output
Functions include On/Off, Zero, mm/inch, ABS, data preset, and measuring-direction change. The instrument supports data output and optional wireless transmission accessories for digital inspection workflows.For more insights, contact us:
