| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 3205-900 |
| Product Type | Outside Micrometer |
| Measuring Range | 800–900mm |
| Graduation | 0.01mm |
| Accuracy | 20µm |
| Type | Type A |
| Measuring Faces | Carbide |
| Measuring Force Control | Ratchet Stop |
| Anvil System | Extension Anvil Collar |

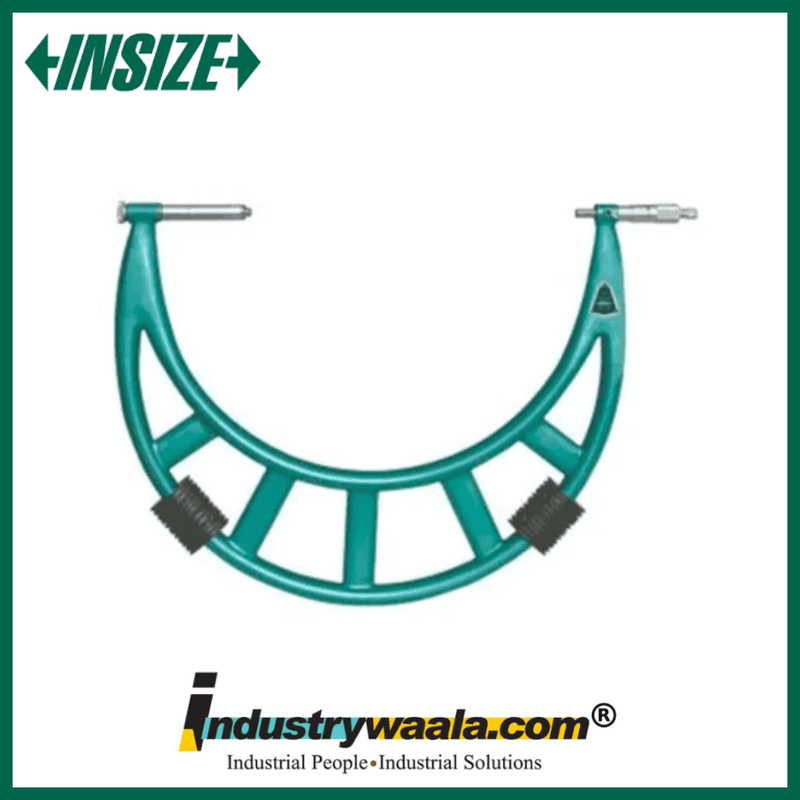

The INSIZE 3205-900 Outside Micrometer With Extension Anvil Collar is a long-range mechanical precision measuring instrument designed for accurate measurement of large outside dimensions from 800 to 900mm. It features 0.01mm graduation and 20µm accuracy, making it suitable for dimensional inspection of large shafts, machined components, fabricated parts, and other industrial workpieces. The micrometer features adjustable collars for different measuring ranges, a ratchet stop, carbide measuring faces, and supplied setting standards for convenient setup and verification.
Key Features
1. Large 800–900mm Measuring Range
The 3205-900 provides an extensive 800–900mm measuring range, making it suitable for large-diameter components and workpieces that require a long-range outside micrometer.
2. 0.01mm Graduation & 20µm Accuracy
The micrometer provides 0.01mm graduation for detailed mechanical measurement, while INSIZE specifies 20µm accuracy for the 3205-900.
3. Extension Anvil Collar System
The extension anvil collar design supports different measuring ranges and provides the extended configuration required for large-dimension measurement. The 3205-900 is a Type A model with an overall length of 910mm and dimension b of 495mm.
4. Carbide Measuring Faces & Ratchet Stop
The carbide measuring faces provide durable measuring contact surfaces, while the ratchet stop helps maintain controlled measuring force during operation.
5. Supplied Setting Standards
The 3205-900 is supplied with 825mm and 875mm setting standards, allowing convenient setup and reference checking for the applicable measuring range.
