| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 3225-1300 |
| Product Type | Tubular Inside Micrometer |
| Measuring Range | 100–1300 mm |
| Graduation | 0.01 mm |
| Micrometer Head Travel | 25 mm |
| Extension Rods | 25, 50, 100, 200, 400 mm (2 pcs) |
| Measuring Faces | Carbide |
| Setting Standards | Supplied |

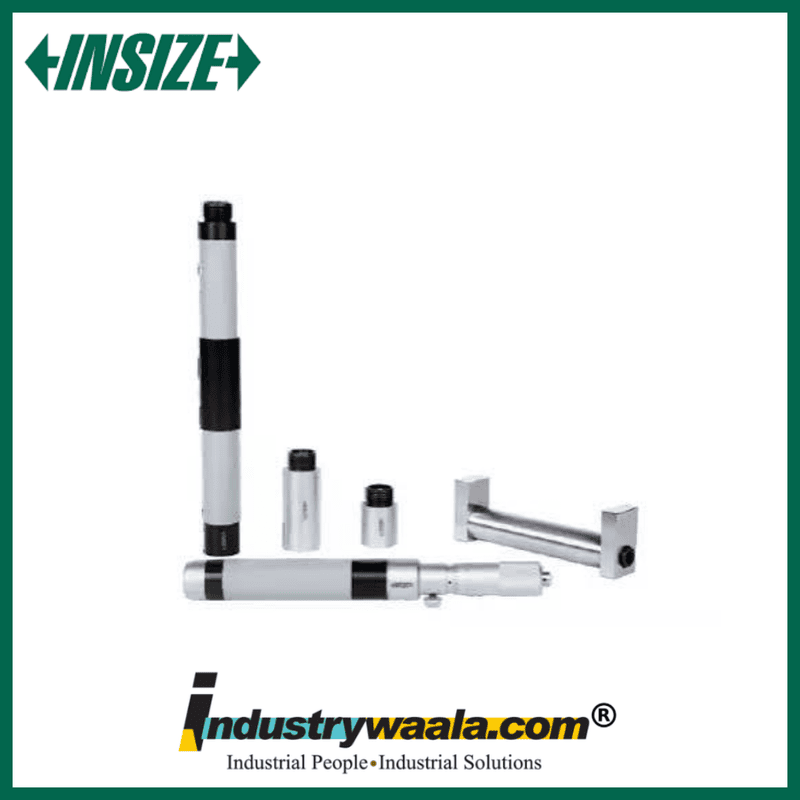

The INSIZE 3225-1300 Tubular Inside Micrometer is a precision mechanical measuring instrument designed for accurate measurement of large internal dimensions, bores, and internal spaces. It provides a 100–1300 mm measuring range with 0.01 mm graduation, making it suitable for large-component inspection and dimensional measurement. The micrometer features a 25 mm travelling micrometer head, durable carbide measuring faces, and a modular extension-rod system for achieving its extended measuring capacity. The 3225-1300 is supplied with 25 mm, 50 mm, 100 mm, 200 mm, and 400 mm extension rods, with two 400 mm rods, along with setting standards.
Key Features
1. 100–1300mm Measuring Range
The 3225-1300 provides an extensive 100–1300 mm measuring range, making it suitable for measuring large internal dimensions that cannot be reached with conventional short-range inside micrometers.
2. 0.01mm Graduation
The micrometer provides a 0.01 mm graduation, allowing detailed mechanical readings for internal dimensional inspection, machining, manufacturing, and quality-control applications.
3. Modular Extension Rod System
The 3225-1300 is supplied with 25 mm, 50 mm, 100 mm, 200 mm, and 400 mm extension rods, with two 400 mm rods, allowing the measuring assembly to be configured for its extended range.
4. 25mm Micrometer Head Travel
The micrometer head provides 25 mm travel, giving the instrument its fine adjustment capability while the extension rods provide the additional measuring length required for larger internal dimensions.
5. Carbide Measuring Faces & Setting Standards
The 3225 series features carbide measuring faces for durable contact during repeated measurement. The 3225-1300 is also supplied with setting standards, supporting setup and dimensional verification.
