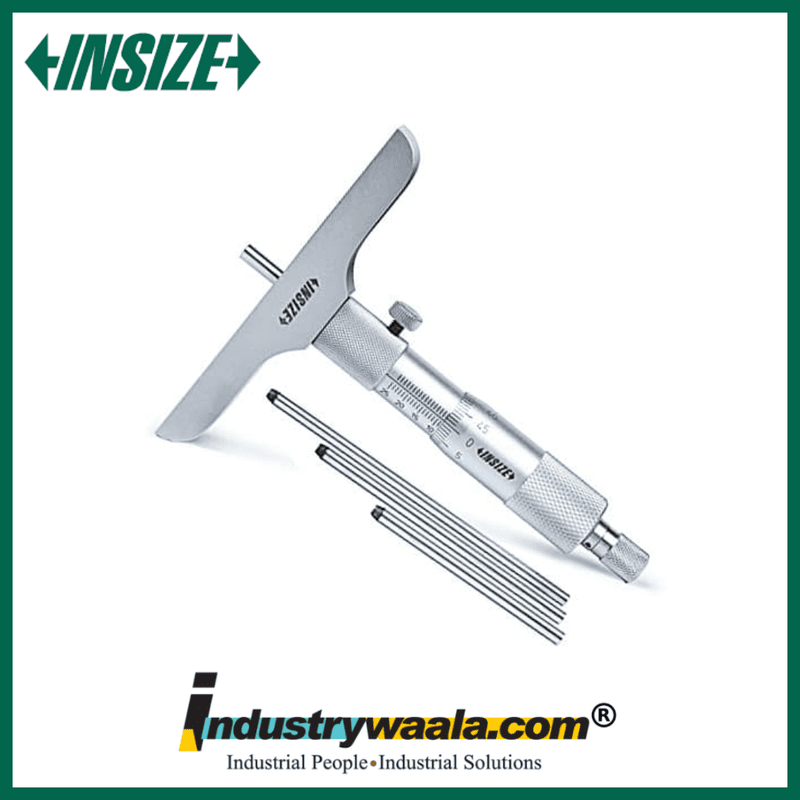

INSIZE 3240-100 Depth Micrometer – 0–100mm / 0–4"

The INSIZE 3240-100 Depth Micrometer is a precision mechanical measuring instrument designed for accurate measurement of deep holes, grooves, recesses, steps, and other depth dimensions. It offers a 0–100 mm / 0–4" measuring range, 0.01 mm graduation, and ±3 μm micrometer-head accuracy. The instrument features a wide stainless-steel base, multiple interchangeable flat-end extension rods, and a ratchet stop for consistent measuring force.

Key Features

1. 0–100mm / 0–4" Measuring Range
   The 3240-100 provides a wide 0–100 mm measuring range, making it suitable for measuring deeper holes, grooves, recesses, and machined components.
2. High-Precision Measurement
   With 0.01 mm graduation and ±3 μm micrometer-head accuracy, the depth micrometer delivers precise and repeatable readings for dimensional inspection.
3. Wide Stainless-Steel Base
   The 101.5 × 17 mm base provides a stable reference surface, helping maintain accurate positioning while measuring depths on different workpieces.
4. Multiple Extension Rods
   The 3240-100 is supplied with four flat-end extension rods, allowing the measuring length to be selected according to the required depth. This makes the instrument versatile for different inspection tasks.
5. Ratchet Stop for Consistent Measurement
   The ratchet stop helps control measuring pressure and improves repeatability. The micrometer is designed according to DIN 863-2 requirements for depth micrometers.
