| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 3352-501WL |
| Product Type | Digital Blade Micrometer |
| Type | A |
| Measuring Range | 25–50 mm / 1–2" |
| Resolution | 0.001 mm / 0.00005" |
| Accuracy | ±2 µm |
| Data Transmission | Built-In Wireless |
| Display | Digital |

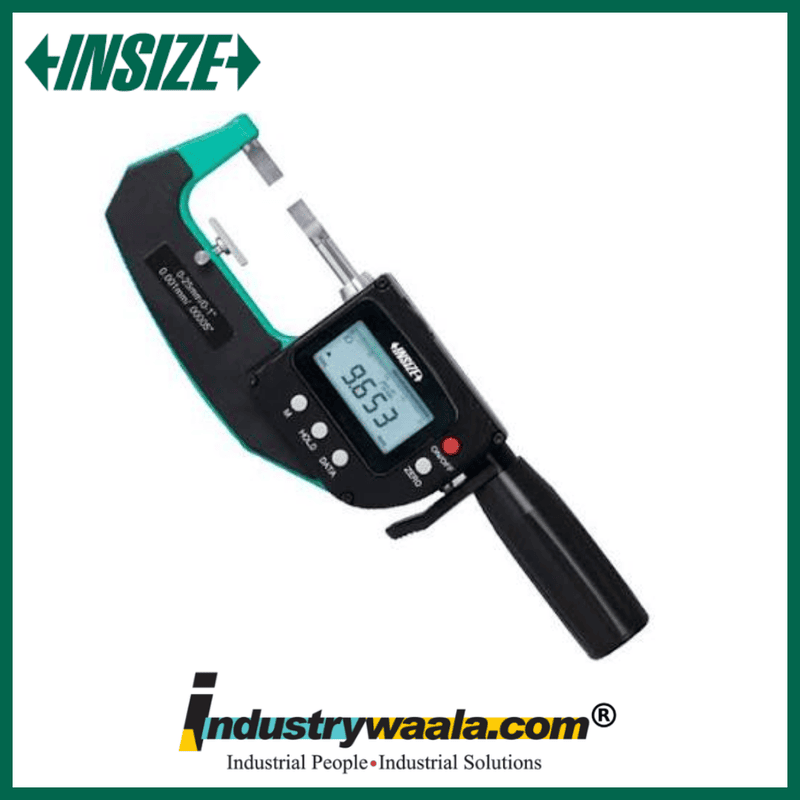

The INSIZE 3352-501WL Digital Blade Micrometer is a precision digital measuring instrument designed for accurate measurement of grooves, slots, keyways, narrow recesses, and other difficult-to-access dimensions. It provides a 25–50 mm / 1–2" measuring range, 0.001 mm / 0.00005" resolution, and ±2 µm accuracy. The Type A blade configuration provides a narrow measuring contact for specialized applications, while the built-in wireless function enables convenient transmission of measurement data to compatible receiving systems. The micrometer also features a digital display, rechargeable battery, zero-setting functions, and tolerance alarm functions, making it suitable for CNC machining, quality control, tool rooms, and precision inspection.
Key Features
1. 25–50mm Measuring Range
The 3352-501WL provides a 25–50 mm / 1–2" measuring range, making it suitable for measuring larger grooves, slots, keyways, and other narrow or recessed features within its capacity.
2. 0.001mm High-Resolution Measurement
The digital micrometer provides 0.001 mm / 0.00005" resolution, allowing users to take highly detailed measurements during machining, inspection, and quality-control operations.
3. ±2µm Accuracy
INSIZE specifies ±2 µm accuracy for the 3352-501WL. This provides the precision required for many demanding dimensional inspection and manufacturing applications.
4. Built-In Wireless Data Transmission
The WL version features built-in wireless connectivity, allowing measurement data to be transmitted to a compatible receiver and supporting more efficient digital inspection and measurement-management workflows. A suitable wireless receiver is required for the wireless function.
5. Digital Functions & Rechargeable Battery
The micrometer includes useful digital functions such as inch/mm conversion, zero setting, power-off control, tolerance/alarm functions, and rechargeable battery operation. The rechargeable battery supports approximately 24 hours of continuous operation.
