| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 3507-25B |
| Product Type | Digital Indicating Micrometer |
| Measuring Range | 0–25 mm |
| Micrometer Head Graduation | 0.002 mm |
| Micrometer Head Accuracy | 3 µm |
| Digital Indicator Range | ±0.04 mm |
| Digital Indicator Resolution | 0.2 µm |
| Digital Indicator Accuracy | ±1 µm |
| Repeatability | 0.3 µm |
| Measuring Stroke | 3 mm |

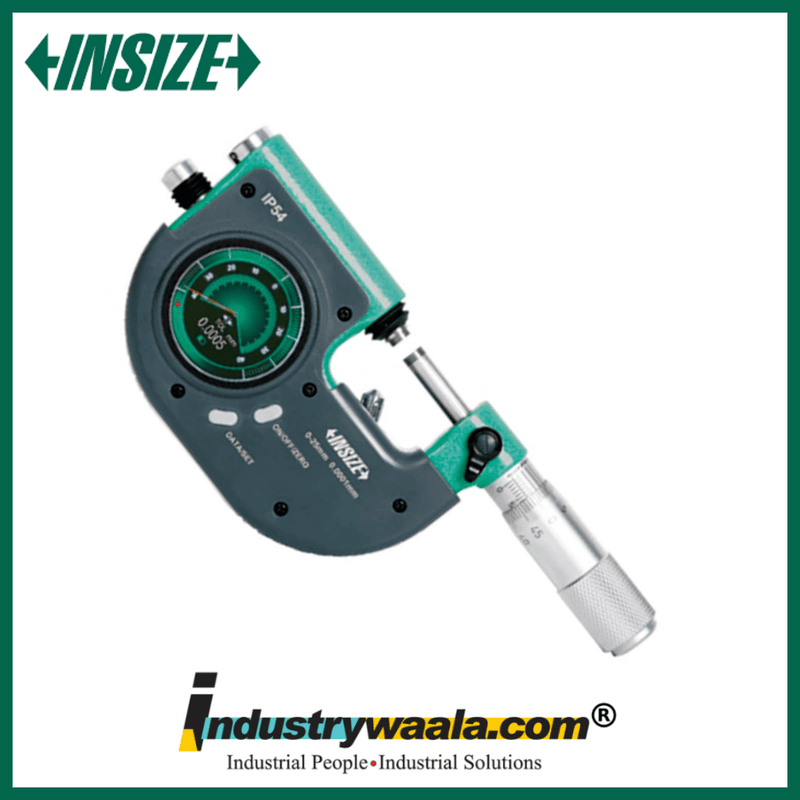

The INSIZE 3507-25B Digital Indicating Micrometer is a precision measuring instrument designed for accurate outside-dimension inspection in machining, manufacturing, quality control, and engineering applications. It provides a 0–25 mm measuring range, 0.002 mm micrometer head graduation, and 0.2 µm digital indicator resolution for detailed dimensional measurement. The instrument features built-in Bluetooth data output, allowing measurement results to be transmitted to compatible computers and mobile applications. With its 3 µm micrometer-head accuracy, ±1 µm digital-indicator accuracy, 0.3 µm repeatability, IP54 protection, carbide measuring faces, and rechargeable battery, the 3507-25B is suitable for professional precision inspection workflows.
Key Features
1. Precise 0–25mm Measuring Range
The 3507-25B provides a 0–25 mm measuring range, making it suitable for measuring small shafts, precision components, machined parts, and other external dimensions in manufacturing and inspection applications.
2. Fine 0.002mm Micrometer Graduation
The micrometer head features 0.002 mm graduation with 3 µm accuracy, providing detailed mechanical measurement capability. The integrated digital indicator provides 0.2 µm resolution, allowing sensitive indication of dimensional variations.
3. High-Resolution Digital Indicator
The digital indicator has a ±0.04 mm measuring range, 0.2 µm resolution, ±1 µm accuracy, and 0.3 µm repeatability. These specifications make the instrument suitable for precision inspection and comparison measurements.
4. Built-In Bluetooth Data Output
The 3507-25B supports Bluetooth data transmission, with a transmission distance of up to 10 metres. Measurement data can be transferred to compatible Excel, Word, TXT, Android, and iPhone applications. USB data output is also supported.
5. Professional Digital Measuring Design
The instrument features IP54 protection, carbide measuring faces, an absolute encoder, rechargeable battery operation, and digital/analog reading. The battery provides up to approximately 20 hours of operation under specified conditions.
