| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 3525-1050 |
| Product Type | Digital Tubular Inside Micrometer |
| Measuring Range | 200–1050 mm |
| Resolution | 0.001 mm / 0.00005" |
| Accuracy | (3+n+L/50) µm |
| Micrometer Head Travel | 25 mm |
| Extension Rods | 25 mm, 50 mm (2 pcs), 100 mm, 200 mm, 400 mm |
| Protection | IP65 Dust/Waterproof |

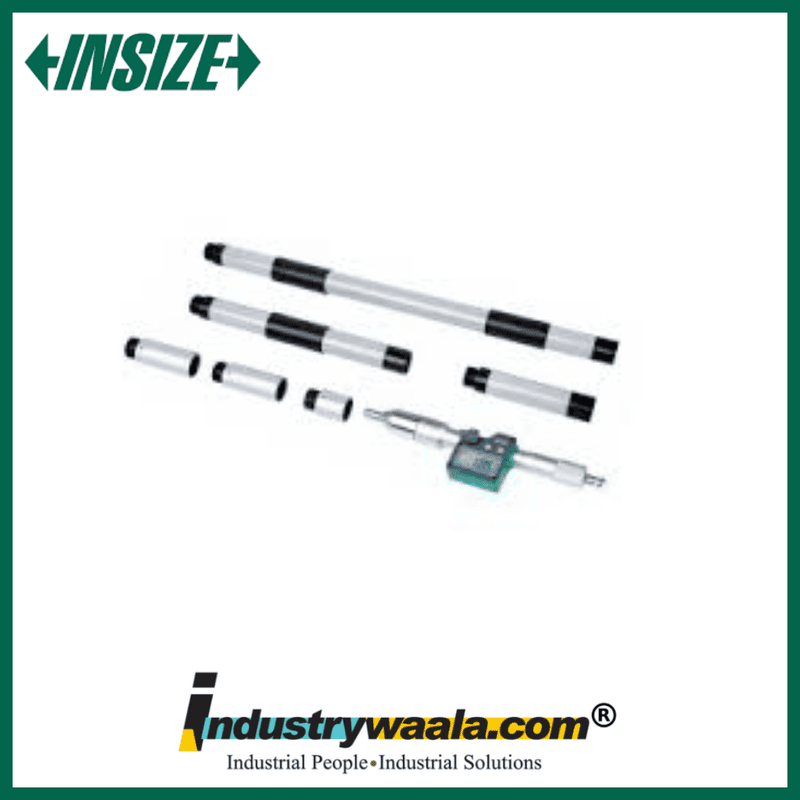

The INSIZE 3525-1050 Digital Tubular Inside Micrometer with Interchangeable Points is a precision digital measuring instrument designed for accurate measurement of large internal dimensions, bores, tubes, cylinders, and other suitable internal features. It provides a 200–1050 mm measuring range with 0.001 mm / 0.00005" resolution, making it suitable for demanding dimensional inspection and quality-control applications. The micrometer uses interchangeable extension rods to achieve its extended measuring range and features IP65 dust and water resistance, data output, automatic power-off, and mm/inch conversion.
Key Features
1. Wide 200–1050mm Measuring Range
The 3525-1050 provides an extended 200–1050 mm measuring range, making it suitable for measuring large internal diameters and deep internal dimensions in industrial components.
2. Ultra-Fine 0.001mm Resolution
With 0.001 mm / 0.00005" resolution, the digital display provides highly detailed dimensional readings for precision inspection, machining, manufacturing, and quality-control applications.
3. Interchangeable Extension Rods
The 3525-1050 uses a 25 mm micrometer-head travel together with extension rods of 25 mm, 50 mm (2 pcs), 100 mm, 200 mm, and 400 mm, allowing the instrument to cover its extended measuring range.
4. IP65 Protection & Digital Functions
The instrument features IP65 dust/waterproof protection, automatic power-off, and buttons for on/off, setting, mm/inch conversion, and data transmission.
5. Data Output & Optional Ball Points
The 3525-1050 includes a data interface for measurement-data transmission. Optional interchangeable ball points are available in different diameters and are supplied in pairs, providing additional flexibility for suitable internal measurement applications.
