| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 4814-1 |
| Product Type | Chamfer Gauge |
| Category | Chamfer Measuring Tool |
| Measurement Type | 45° Chamfer Length |
| Measuring Range | 0.5–5.0mm |
| Number of Leaves | 10 |
| Accuracy | ±0.03mm |
| Material | Stainless Steel |
| Application | Chamfer Dimensional Inspection |

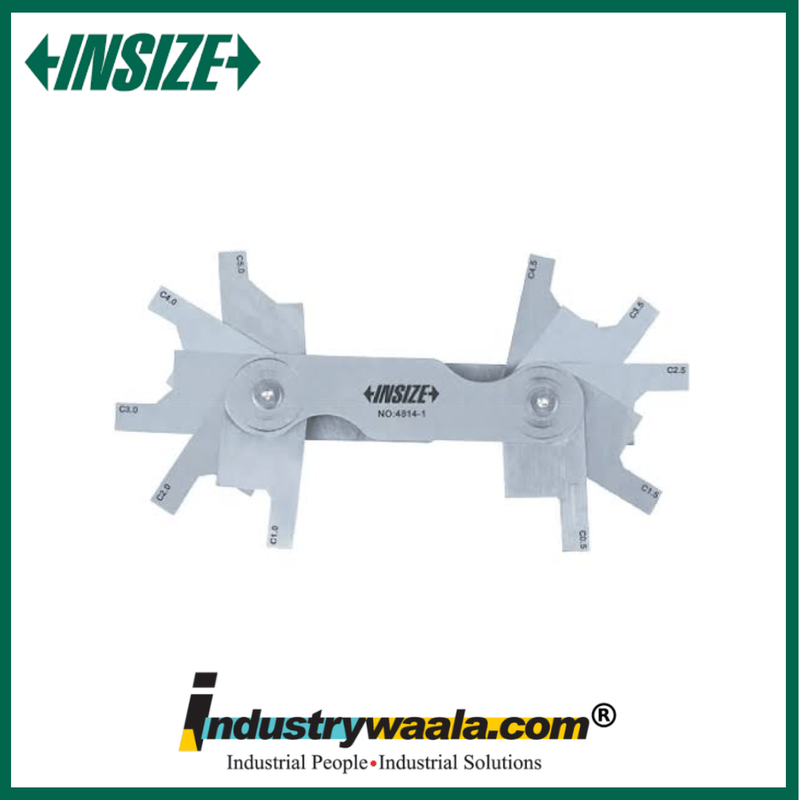

The INSIZE 4814-1 Chamfer Gauge is a precision measuring tool designed for checking 45° chamfer lengths on machined components and edges. It features a set of 10 measuring leaves covering chamfer sizes from 0.5mm to 5.0mm, providing a practical solution for routine chamfer inspection.
The gauge is designed for convenient comparison of chamfer dimensions during machining, manufacturing and quality-control processes. Its stainless-steel construction makes it suitable for regular use in machine shops, workshops, tool rooms, manufacturing facilities and inspection departments.
The INSIZE 4814-1 is useful for machinists, engineers, inspectors and quality-control professionals who need a dedicated tool for checking chamfer dimensions. Its compact multi-leaf design allows different chamfer sizes to be checked using the appropriate measuring leaf.
Key Features
- Designed for 45° chamfer length measurement.
- 0.5–5.0mm measuring range across multiple leaves.
- Includes 10 measuring leaves for different chamfer sizes.
- ±0.03mm accuracy for precision chamfer inspection.
- Stainless-steel construction for durable industrial use.
- Suitable for machined edges and chamfered components.
- Practical tool for machine shops, manufacturing and quality control.
