| Function | Specification |
| Test Voltages | 250V / 500V / 1000V |
| Insulation Resistance Range | 0MΩ – 20GΩ |
| AC Voltage Measurement | Up to 750V |
| DC Voltage Measurement | Up to 1000V |
| PI / DAR Testing | Yes |
| Display | Digital LCD with Backlight |
| Auto Discharge | Yes |

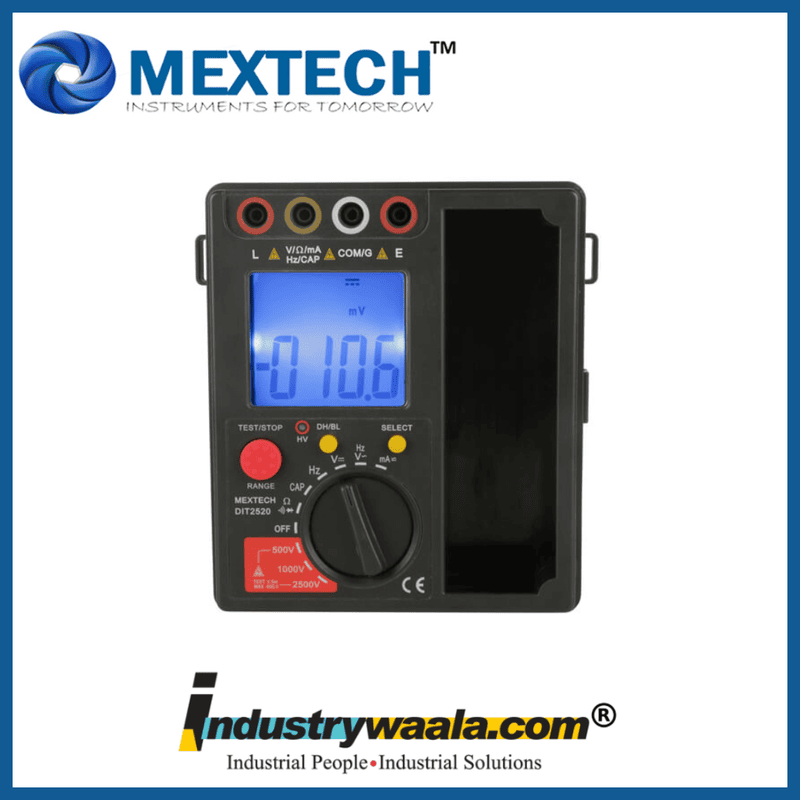

Mextech DIT2520 Digital Insulation Tester
The Mextech DIT2520 Digital Insulation Tester is a professional high-performance insulation resistance measuring instrument designed for electricians, maintenance engineers, industrial technicians, power utilities, and electrical inspection professionals. This advanced insulation tester provides accurate insulation testing for motors, transformers, generators, switchgear, industrial panels, and power distribution systems. (mextechin.com)
Built with selectable test voltages of 250V, 500V, and 1000V, the DIT2520 supports insulation resistance measurement up to 20GΩ with excellent accuracy and stable performance. The tester also includes PI (Polarization Index) and DAR (Dielectric Absorption Ratio) testing functions to help evaluate insulation health and equipment reliability during preventive maintenance and diagnostic inspections.
Key Features
- Digital insulation resistance testing
- Selectable test voltages: 250V / 500V / 1000V
- Insulation resistance measurement up to 20GΩ
- PI (Polarization Index) testing function
- DAR (Dielectric Absorption Ratio) testing
- Large LCD display with backlight
- Automatic discharge of capacitive voltage
- Live circuit warning indication
- Auto power-off function
- Low battery indication
- Data hold function
- AC/DC voltage measurement capability
- High testing stability and precision
- Rugged industrial-grade construction
- Compact ergonomic portable design
- CAT III safety protection
