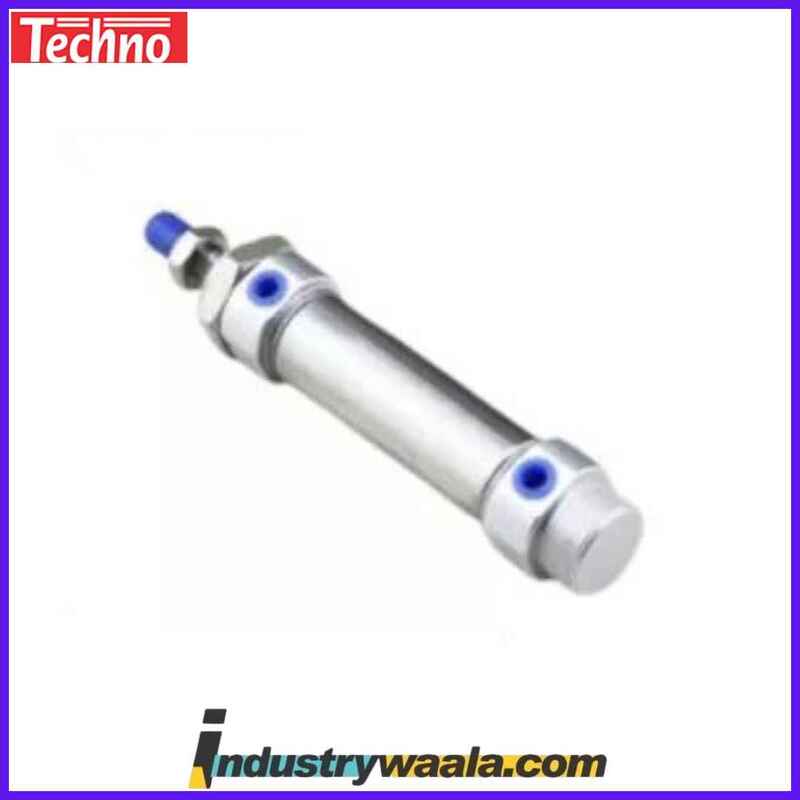

Techno CDM2B40 X 100-S Pneumatic Cylinder

The Techno CDM2B40 X 100-S Pneumatic Cylinder is a high-performance double-acting actuator, designed for precise, reliable motion control in a variety of industrial applications. With a 40mm bore diameter and 100mm stroke length, this cylinder strikes a balance between power and compactness, providing efficient motion control in medium-duty tasks. The CDM2 series cylinders are known for their versatility, durability, and smooth operation, making them suitable for use in automation, robotics, material handling, and other systems where precise linear movement is required.

Overview

The Techno CDM2B40 X 100-S Pneumatic Cylinder is engineered to offer efficient performance while maintaining a compact footprint. The 40mm bore and 100mm stroke are well-suited for applications requiring moderate force and precision within a relatively short stroke. This cylinder is designed for consistent, reliable operation in industrial environments, offering features like pneumatic cushioning to reduce shock and ensure smooth deceleration at both ends of the stroke. It also includes a magnetic piston for position sensing, allowing for precise control and integration with automated systems.

Key Features

1. Design and Construction:
   • 40mm Bore Diameter: The 40mm bore allows for moderate force generation, making the CDM2B40 X 100-S perfect for medium-duty applications that require a balanced combination of power and space efficiency.
   • 100mm Stroke Length: The 100mm stroke provides an adequate range of motion for tasks that require precision but do not necessitate a long travel distance. This medium stroke length is ideal for a variety of applications requiring both accuracy and speed.
   • Anodized Aluminum Body: The cylinder is constructed from anodized aluminum, providing enhanced corrosion resistance and durability. This material ensures the cylinder remains functional and reliable even in harsh environments.
   • Standard Design ("S"): The “S” designation indicates a standard design configuration, compatible with a wide range of mounting options for easy installation and integration.
2. Performance:
   • Double-Acting Operation: The double-acting design allows the cylinder to operate in both the extension and retraction phases, ensuring smooth and controlled motion in both directions. This design is well-suited for tasks that require reliable performance in both forward and reverse movements.
   • Pneumatic Cushioning: The cylinder incorporates pneumatic cushioning at both ends of the stroke, reducing impact forces when the piston reaches the end of its travel. This feature enhances the overall longevity of the cylinder, minimizes wear, and reduces noise levels.
   • Magnetic Piston: Equipped with a magnetic piston, the CDM2B40 X 100-S provides position feedback, enabling accurate tracking of the cylinder’s position in real time. This makes it an ideal solution for automation systems that require precise control and integration with position sensors.
3. Applications:
   • The CDM2B40 X 100-S is ideal for a wide range of applications in industries like automation, robotics, material handling, and assembly. With its 100mm stroke, it is well-suited for tasks such as clamping, lifting, pressing, positioning, and sorting, where precise and controlled movement is essential.
   • The cylinder’s 40mm bore diameter allows it to generate moderate force, making it perfect for medium-duty operations in compact machines or automated systems.
   • Its medium stroke length is ideal for applications requiring accurate travel over a short distance, providing precise movement without taking up excessive space.
4. Mounting and Installation:
   • The CDM2B40 X 100-S offers multiple mounting options, including foot mounts, flange mounts, and through-hole mounts, making installation adaptable to different machine setups.
   • Its standard configuration allows for easy integration into existing systems, reducing setup time and ensuring compatibility with various mounting and installation options.
5. Durability and Material Composition:
   • The anodized aluminum construction provides excellent corrosion resistance, allowing the cylinder to function reliably even in environments exposed to moisture, dust, or chemicals.
   • The magnetic piston helps reduce internal friction and wear, contributing to the long service life of the cylinder, especially in high-cycle applications.
6. Pressure and Force:
   • Operating within a pressure range of 1.5 to 8 bar, the CDM2B40 X 100-S generates moderate force, making it suitable for medium-duty tasks that require efficient, controlled actuation.
   • The 40mm bore allows for a balanced force output that is neither too powerful nor too weak, making it ideal for applications that need a moderate force but also precision.
7. Compatibility:
   • The CDM2B40 X 100-S is compatible with a wide range of Festo accessories, such as position sensors, pneumatic valves, and mounting kits, allowing for flexible customization of the system.
   • The standard design ensures that the cylinder can be integrated into existing setups with ease, providing a seamless addition to a variety of industrial systems.

Advantages

• 40mm bore diameter and 100mm stroke length provide a balanced solution for medium-duty tasks requiring precise movement and moderate force.
• Double-acting operation ensures smooth, controlled motion in both extension and retraction phases, enhancing the cylinder's versatility.
• Pneumatic cushioning minimizes shock and reduces wear and tear on both the cylinder and surrounding equipment, ensuring smoother operation and longer service life.
• Magnetic piston allows for precise position sensing, enabling real-time feedback for automated systems.
• Anodized aluminum construction offers excellent resistance to corrosion, making it durable in harsh environments.
• Flexible mounting options ensure easy installation in a variety of configurations.

Conclusion

The Techno CDM2B40 X 100-S Pneumatic Cylinder is an ideal solution for medium-duty applications that require precise motion control in a compact design. With its 40mm bore diameter and 100mm stroke length, this cylinder provides moderate force and efficient movement for tasks such as clamping, lifting, pressing, positioning, and sorting. Featuring pneumatic cushioning, magnetic piston position feedback, and anodized aluminum construction, the cylinder ensures smooth, reliable, and long-lasting performance in demanding industrial environments. Its flexible mounting options and standard design make it easy to integrate into a wide range of systems, making it a versatile and reliable choice for automation and industrial applications.
