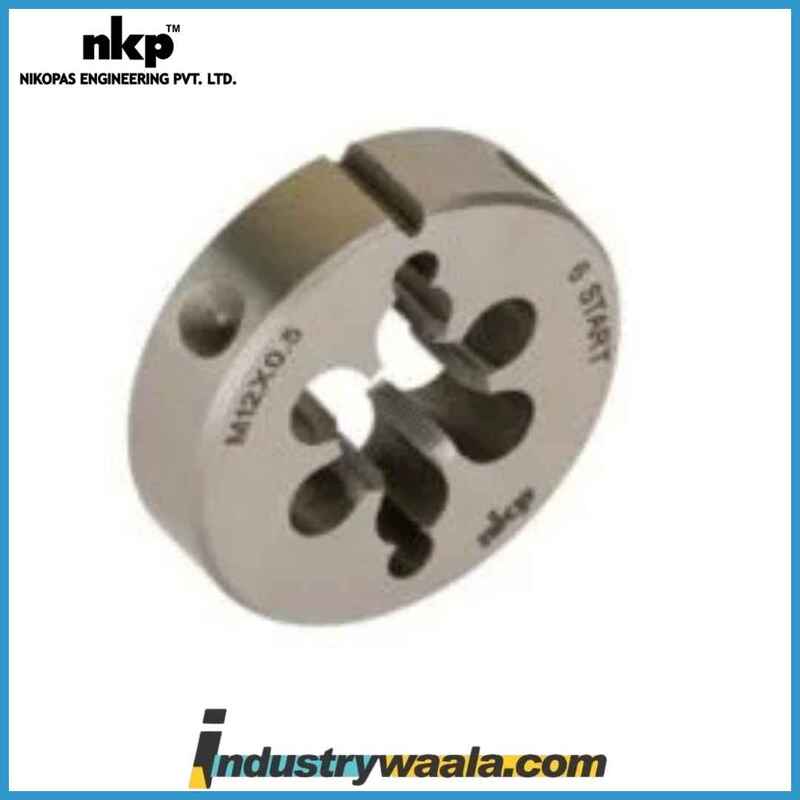

NKP 12 X 1 MM 1.1/2 Inch Dia High Speed Steel Circular Dies

The NKP 12 X 1 MM 1.1/2 Inch Dia High-Speed Steel (HSS) Circular Die is a precision tool primarily used for cutting and repairing external threads on cylindrical workpieces like rods, bolts, and other threaded components. With a 12 mm nominal thread diameter and a 1 mm pitch, it is particularly suitable for creating or restoring fine threads on smaller fasteners. Made from high-speed steel, the die is designed to provide exceptional durability, wear resistance, and heat tolerance, ensuring it can withstand high levels of usage in demanding environments.

NKP 12 X 1 MM 1.1/2 Inch Dia High-Speed Steel Circular Die: Detailed Description

1. Size and Thread Specifications:
   • Diameter: 1.1/2 Inches (approximately 38.1 mm). This large outer diameter is designed to fit snugly into die holders or die stocks, ensuring secure handling during use. The size allows for easy manipulation while cutting threads with precision.
   • Thread Size: 12 X 1 mm. The die is designed for a 12 mm nominal diameter and a 1 mm pitch:
     • 12 mm: This diameter is ideal for cutting or repairing external threads on small to medium-sized components. It is commonly used for threading bolts, rods, and pipes in industrial and mechanical applications.
     • 1 mm: The 1 mm pitch represents the distance between the crests of adjacent threads, indicating a fine thread design. Fine threads are often used when high precision and tight tolerances are required, making this die suitable for applications in machinery, automotive parts, and equipment requiring precise thread engagement.
2. Material:
   • High-Speed Steel (HSS): This die is made from high-speed steel, known for its remarkable hardness and ability to maintain cutting sharpness at elevated temperatures. High-speed steel's properties provide superior wear resistance, making it highly effective in cutting through hard materials. This material also helps reduce tool wear, extending the die's lifespan and maintaining its cutting efficiency.
3. Design and Construction:
   • Circular Die Shape: The die is shaped as a flat, circular disk with cutting edges around its perimeter. This circular design allows for uniform cutting along the surface of cylindrical workpieces. As the die is rotated, it smoothly cuts threads, ensuring precision.
   • Central Hole: There is typically a central hole in the die, which serves to guide and align the workpiece with the cutting edges. This ensures that the threading process is centered, providing even and accurate threads.
   • Multiple Cutting Edges: The die is designed with several sharp cutting edges around the circumference. These multiple edges facilitate efficient and smooth thread cutting, reducing the amount of pressure required and minimizing the chances of tool wear.
4. Purpose:
   • Thread Cutting and Repair: The NKP 12 X 1 MM die is primarily used for cutting external threads or repairing damaged threads on rods, bolts, and other cylindrical components. It can be used to create new threads or restore threads on worn fasteners, ensuring that they meet the required specifications.
   • Fine Threading: The 1 mm pitch of the die makes it ideal for creating fine threads that require precision. Fine threads are often used in parts that need to hold securely under high pressure or stress.
5. Features:
   • Precision Threading: The die is designed to produce precise, clean threads, making it essential for applications where thread accuracy is critical. Clean, uniform threads ensure that fasteners fit securely and function properly.
   • Durability: Made from high-speed steel, the die is highly durable, offering resistance to wear and heat. This allows the die to maintain its performance for a longer period, reducing the need for frequent replacements.
   • Efficient Performance: The multiple cutting edges ensure that the die cuts threads quickly and efficiently, reducing the effort required to cut the threads. This also helps minimize tool wear and overheating during operation.
6. Applications:
   • Industrial Manufacturing: In industries where precise thread cutting is necessary, such as automotive, machinery, and manufacturing, the NKP 12 X 1 MM die is commonly used to cut or repair threads on fasteners and components. Its fine thread capability makes it ideal for use in applications requiring high-quality, durable threads.
   • Automotive and Mechanical Repairs: This die is widely used in the automotive and mechanical repair industries to restore or cut external threads on various parts, including bolts, rods, and other fasteners used in engines, transmissions, and other machinery.
   • Metalworking and Machining: Metalworkers and machinists use this die for threading metal parts. Whether it's cutting new threads or repairing damaged threads on bolts or rods, the NKP 12 X 1 MM die ensures precision and reliability.
   • DIY and Home Projects: For hobbyists and DIY enthusiasts, this die is a valuable tool for threading smaller components for custom projects or repairs. It is suitable for home workshops, where precision threading is required.
7. Advantages:
   • Long Tool Life: Thanks to the high-speed steel construction, the die can handle prolonged use without wearing out quickly, ensuring a long service life and reduced maintenance costs.
   • Precision and Accuracy: The NKP 12 X 1 MM die is built to provide clean, precise threads, which is essential in applications that require high levels of accuracy and security.
   • Versatility: This die is versatile and can be used in various applications, including industrial, automotive, and DIY projects. Its ability to cut or repair fine threads makes it ideal for a wide range of threading tasks.
   • Heat Resistance: The high-speed steel composition allows the die to withstand the heat generated during the cutting process, reducing the risk of overheating and increasing its longevity.
8. Handling and Usage:
   • Using with Die Stock: The NKP 12 X 1 MM die is typically used with a die stock or die holder. This tool provides leverage and control while threading, ensuring that the die remains aligned with the workpiece for precise cutting.
   • Threading Process: To use the die, place it onto the workpiece and rotate it clockwise while applying steady, even pressure. The die will cut threads into the material, ensuring that the threads are smooth and even. For thread repair, align the die with the existing threads and rotate it to restore the damaged or worn threads.

Summary:

The NKP 12 X 1 MM 1.1/2 Inch Dia High-Speed Steel Circular Die is a high-quality threading tool designed for cutting or repairing external threads on cylindrical components. It features a 12 mm nominal diameter and 1 mm pitch, making it ideal for small to medium-sized fasteners that require fine, precise threads. Made from durable high-speed steel, the die offers superior heat and wear resistance, making it suitable for demanding industrial, automotive, and mechanical applications. With its precision and efficient performance, the NKP 12 X 1 MM die is a versatile and reliable tool for professionals and DIY enthusiasts who need high-quality thread cutting.
