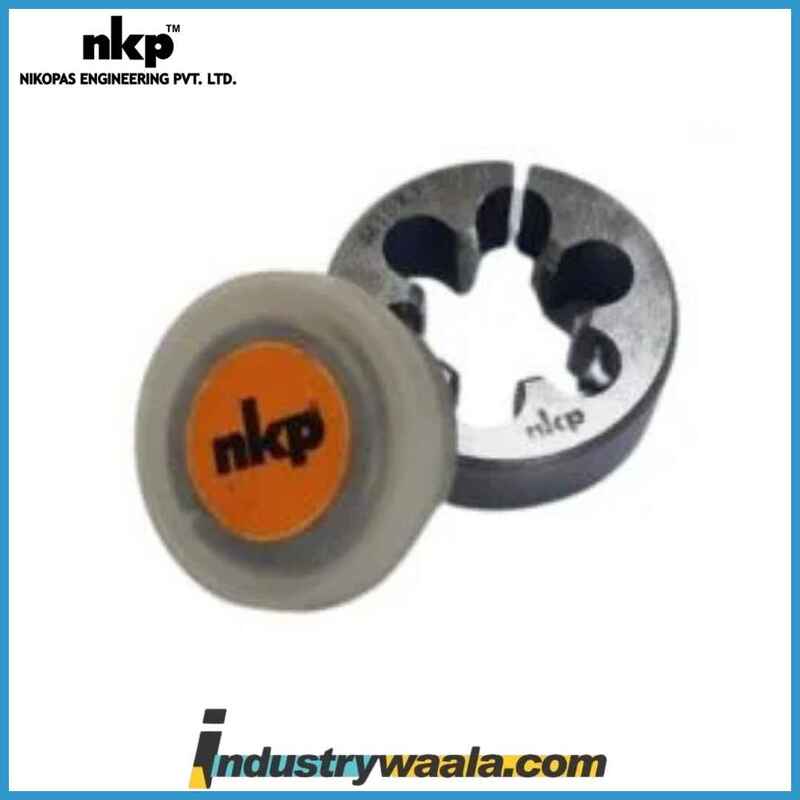

NKP 1/8 x 28 BSPT 1.5/16 Inch Dia High Speed Steel Circular Dies

The NKP 1/8 x 28 BSPT 1.5/16 Inch Dia High-Speed Steel Circular Die is a high-quality cutting tool primarily used for threading applications in industrial and mechanical settings. Here's a detailed breakdown of its specifications:

Detailed Description:

1. NKP: Likely refers to the manufacturer's or brand name designation, possibly indicating a specific series or type of threading dies. It may be the brand or product line that specializes in precision cutting tools.
2. 1/8 x 28 BSPT:
   • 1/8 indicates the size of the thread being cut, which is 1/8 inch in this case. This is the nominal size for the pipe or the external diameter of the thread being cut.
   • 28 refers to the number of threads per inch (TPI). This means there are 28 threads along every inch of the threaded section.
   • BSPT (British Standard Pipe Tapered) refers to the type of thread. BSPT is a tapered thread, meaning the diameter of the thread decreases as the thread moves along the length of the pipe. It is commonly used in plumbing and hydraulic applications, providing a tight, leak-proof seal when the parts are joined.
3. 1.5/16 Inch Diameter:
   • The die has an outer diameter of 1.5/16 inches (1.3125 inches or approximately 1.31 inches). This is the overall size of the die, and it fits in a die holder or a machine tool to engage the material being threaded.
   • The size ensures compatibility with the material or machine setup used for threading, with a focus on the diameter for larger pipes or components.
4. High-Speed Steel (HSS):
   • High-Speed Steel is a robust and durable material known for its exceptional hardness and wear resistance, even at high operating temperatures. It is the preferred material for cutting tools like dies, as it offers both toughness and durability. HSS is suitable for use on hard metals and provides extended tool life during continuous usage, making it ideal for demanding industrial applications.
5. Circular Die:
   • This die is circular in shape, which is typical for threading external threads onto rods, bolts, or pipes. The circular design allows it to be rotated around the workpiece, cutting the threads as it moves along the surface.
   • Circular dies are manually or machine-driven tools that are used in a range of threading operations, and they come in various sizes and thread types depending on the application.

Applications:

• Pipe Threading: This die is perfect for cutting BSPT threads, which are used in various plumbing, hydraulic, and gas piping systems. The tapered design ensures a tight and secure connection between pipes and fittings, helping to create leak-proof seals in industrial environments.
• Precision Thread Cutting: The die is commonly used for producing high-quality, precise threads for mechanical assemblies, creating custom parts, or repairing damaged threads.
• Machining and Manufacturing: It can be used in a lathe or other machine tools to thread metal pipes, rods, or cylindrical components, allowing manufacturers to create or modify threaded parts accurately.

Advantages:

• High Durability: The High-Speed Steel composition allows the die to withstand the stresses of continuous use, maintaining sharpness for longer durations and making it suitable for threading harder materials.
• Leak-Proof Sealing: The BSPT thread type ensures a tapered connection, which is ideal for creating strong, leak-proof seals in piping systems.
• Versatility: While it is designed for BSPT threads, the circular die is adaptable to different threading machines, enhancing productivity and precision in various industrial processes.

Summary:

The NKP 1/8 x 28 BSPT 1.5/16 Inch Dia High-Speed Steel Circular Die is a premium-quality tool that excels in creating BSPT tapered threads for pipes and mechanical components. It combines durability and precision with its high-speed steel construction, making it an ideal choice for demanding industrial applications where threaded connections need to be tight, leak-proof, and reliable.
