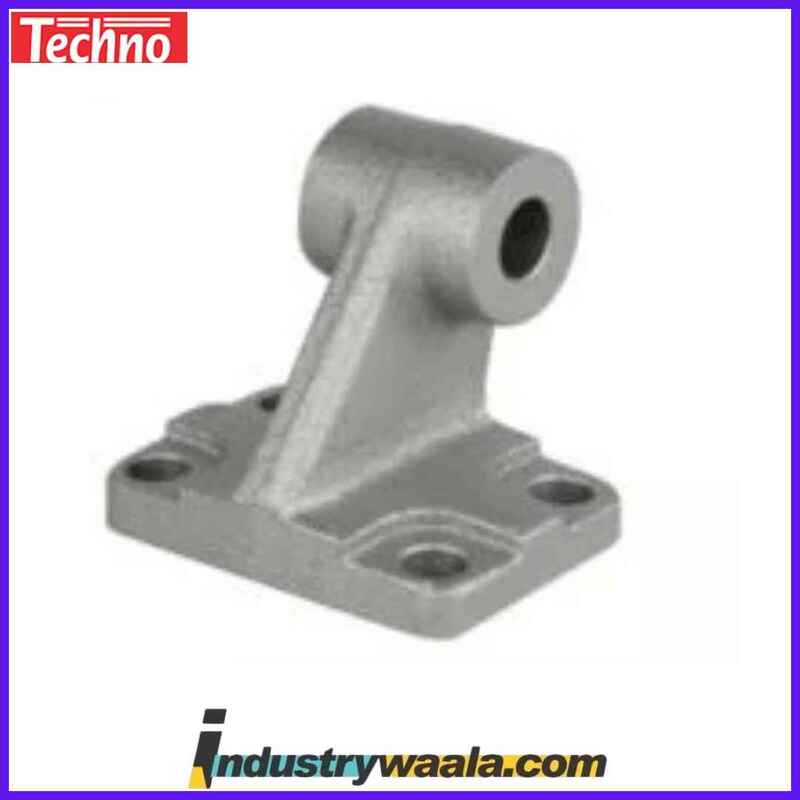

Techno MOUNTING SDB 80 DNC Pneumatic Cylinder Series

The Techno MOUNTING SDB 80 DNC Pneumatic Cylinder Series is a robust and high-performance pneumatic actuator designed for a variety of industrial, automation, and mechanical applications. Featuring an 80 mm bore size, this series provides powerful, precise linear motion driven by compressed air. The cylinder's design ensures efficient operation, excellent reliability, and extended durability, making it ideal for demanding environments and heavy-duty applications.

The SDB 80 DNC series combines advanced engineering with high-quality materials to offer exceptional performance and long service life. With flexible mounting options and versatile configurations, it provides a reliable solution for tasks that require precise control of linear motion, including material handling, packaging, assembly, and industrial machinery.

Key Features:

1. Cylinder Size (80 mm Bore):
   The "80" in the model name refers to the cylinder’s bore diameter of 80 mm. This bore size is designed for applications that require higher force output than smaller cylinders. The 80 mm bore allows for the movement of heavier loads and is well-suited for industrial applications where strong, controlled motion is needed.
2. DNC Series Design:
   The DNC series is a widely used and highly versatile range of pneumatic cylinders. Known for its durability and reliability, the DNC series is ideal for both light and heavy-duty industrial applications. Its design ensures compatibility with a wide variety of automation systems, making it a popular choice in the pneumatic cylinder market.
3. SDB Mounting:
   The SDB mounting configuration provides flexible and secure installation options, making it easier to integrate the SDB 80 DNC pneumatic cylinder into existing systems. Whether you need to mount it horizontally or vertically, the SDB series offers a variety of mounting types, ensuring the cylinder can be adapted to different operational needs.
4. Powerful Pneumatic Actuation:
   The Techno MOUNTING SDB 80 DNC Pneumatic Cylinder operates on compressed air, providing linear motion to drive mechanical parts, tools, or assemblies. Pneumatic cylinders are known for their fast response times, energy efficiency, and ability to generate high force output relative to their size. This makes the SDB 80 DNC ideal for applications requiring consistent performance over long periods.
5. Durable and Reliable Construction:
   Manufactured with high-strength materials such as aluminum and steel, the SDB 80 DNC pneumatic cylinders are built to withstand the demands of high-cycle applications, heavy-duty use, and harsh industrial environments. The cylinder is designed for long-term reliability, minimizing the need for frequent repairs or replacements.
6. Corrosion-Resistant Finish:
   The cylinders are typically finished with corrosion-resistant coatings, such as anodized aluminum or zinc plating, ensuring they maintain their performance even in harsh or outdoor environments. This protection helps prolong the life of the cylinder and prevents wear and tear due to exposure to chemicals, moisture, or extreme temperatures.
7. Wide Range of Applications:
   The SDB 80 DNC pneumatic cylinders are versatile and can be used in a wide range of applications, including industrial automation, material handling systems, packaging machinery, and robotic systems. They are perfect for tasks such as moving heavy loads, clamping, lifting, and pressing operations.
8. Customizable Stroke Length:
   The cylinder can be configured with different stroke lengths to suit specific application needs. The flexibility of customizable strokes allows for optimized performance and precise motion control, providing the right amount of travel for each task.
9. Low Maintenance and Easy Integration:
   The design of the SDB 80 DNC cylinder allows for easy maintenance and minimal downtime. Its straightforward assembly and durable construction mean that maintenance is simple, reducing the total cost of ownership over time. Additionally, the cylinder integrates seamlessly into existing automation and machine systems.

Applications:

The Techno MOUNTING SDB 80 DNC Pneumatic Cylinder Series is ideal for a variety of industries and applications, including:

• Material Handling: For pushing, pulling, or lifting heavy objects in conveyors, sorting systems, or automated warehouses.
• Automation: Used in robotic arms, assembly lines, and other automated processes where linear motion is required for part movement, positioning, or clamping.
• Packaging and Food Processing: In packaging lines, where they can be used to press, lift, or transport goods efficiently.
• Heavy-Duty Manufacturing: Perfect for use in machinery and equipment where higher force output is needed, such as in stamping, pressing, or forging operations.
• Machine Tools: Provides precise movement in CNC machines, lathes, or presses, helping to position, clamp, or move parts accurately.

Benefits:

• High Force Output: The 80 mm bore provides powerful linear motion, ideal for heavy-duty applications requiring strong actuation forces.
• Long Service Life: Durable construction and materials ensure that the SDB 80 DNC cylinder performs reliably over extended periods, even in challenging environments.
• Customizable Performance: The adjustable stroke length allows for flexibility in application, ensuring the cylinder can be optimized for specific tasks.
• Energy Efficient: Powered by compressed air, pneumatic cylinders offer energy-efficient operation for applications requiring frequent cycles and high-force motion.
• Easy Installation: The flexible SDB mounting options allow for quick and easy integration into existing systems, reducing setup time.

Specifications:

• Type: Pneumatic Actuator
• Bore Diameter: 80 mm
• Series: DNC (Durable, Versatile, Standard Pneumatic Cylinder)
• Mounting Style: SDB (Various flexible mounting configurations)
• Stroke Length: Customizable (depends on application needs)
• Material: High-strength aluminum or steel components for durability
• Operating Medium: Compressed air
• Operating Pressure: Typically 6-10 bar (depends on design and application)
• Temperature Range: Operates in a wide range of temperatures (generally from -10°C to 80°C, depending on seals)

The Techno MOUNTING SDB 80 DNC Pneumatic Cylinder Series is an exceptional choice for industries requiring precise, powerful, and reliable pneumatic actuation. Its robust construction, flexible mounting options, and customizable stroke lengths make it a versatile solution for a variety of applications, providing lasting performance in demanding environments. Whether used in automation, material handling, or heavy-duty manufacturing, this series delivers optimal performance and long-term reliability.
