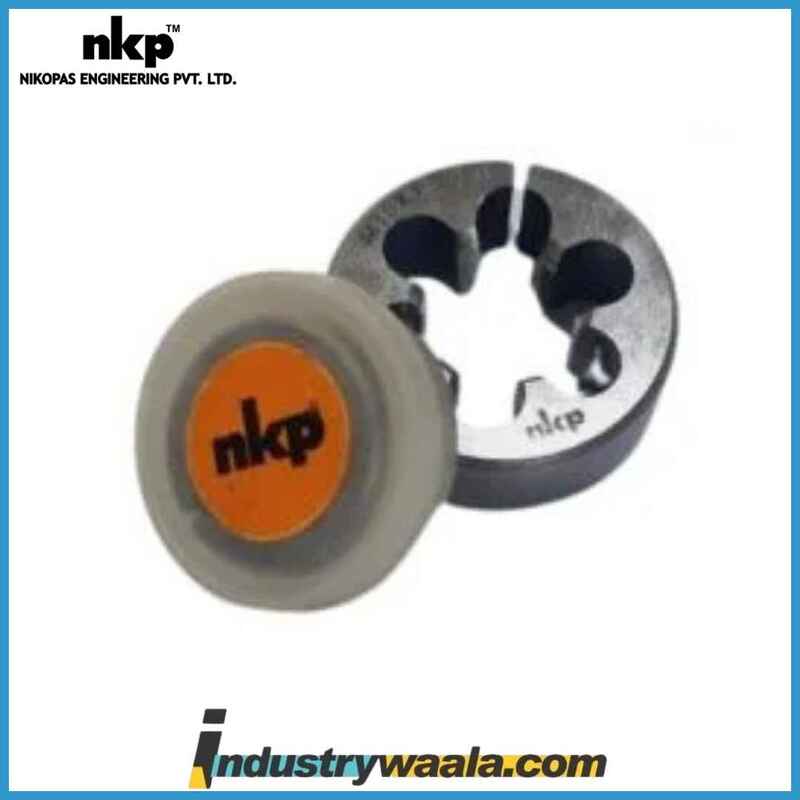

NKP 10 X 1 MM 1 Inch Dia High Speed Steel Circular Dies

The NKP 10 X 1 MM 1 Inch Dia High-Speed Steel (HSS) Circular Die is a highly durable and precise tool designed for cutting or restoring external threads on cylindrical components such as rods, bolts, and other fasteners. With a 10 mm nominal diameter and 1 mm pitch, this die is ideal for creating fine threads in medium-sized components. It is made from high-speed steel (HSS), a material renowned for its hardness, heat resistance, and wear resistance, making it highly effective for high-performance threading tasks. The 1-inch diameter ensures compatibility with standard die stocks or holders, offering stability and control during use.

NKP 10 X 1 MM 1 Inch Dia High-Speed Steel Circular Die: Detailed Description

1. Size and Thread Specifications:
   • Diameter: 1 Inch (approximately 25.4 mm). This size allows the die to be easily mounted and handled with die holders, ensuring precise thread cutting with minimal effort. The 1-inch diameter is ideal for threading small to medium-sized parts and ensures a stable, secure fit in the die stock.
   • Thread Size: 10 X 1 mm. This die is designed to cut threads with a 10 mm nominal diameter and a 1 mm pitch:
     • 10 mm: The 10 mm nominal diameter makes the die suitable for threading medium-sized fasteners, rods, and bolts.
     • 1 mm pitch: The 1 mm pitch is a fine thread pitch, ideal for applications requiring tight, precise threading that ensures a strong and secure fit. It is commonly used for fine-threaded components, providing smoother engagement and better load distribution.
2. Material:
   • High-Speed Steel (HSS): The die is made from high-speed steel, known for its excellent cutting ability, resistance to heat, and wear resistance. HSS retains its hardness even at high temperatures, making it perfect for high-speed applications. This ensures the die remains sharp for longer periods, making it reliable and durable even in challenging industrial environments.
3. Design and Construction:
   • Circular Die Shape: The NKP 10 X 1 MM die has a circular shape, with sharp cutting edges along its perimeter. The circular design allows the die to rotate smoothly around the workpiece, cutting precise threads as it moves.
   • Central Hole: The die has a central hole, which ensures easy alignment with the workpiece and helps maintain precision during threading. The central hole allows for the die to be securely held in place while rotating.
   • Multiple Cutting Edges: The die is designed with multiple cutting edges, which distribute the cutting load evenly, reducing wear on any single edge and enhancing the overall life of the die. The multiple edges also allow for smoother, quicker cutting.
4. Purpose:
   • Thread Cutting and Repair: The NKP 10 X 1 MM die is primarily used to cut or repair external threads on a variety of components, including fasteners, bolts, rods, and other mechanical parts. It can also be used to restore damaged or worn threads, making it an essential tool for maintaining and repairing threaded parts.
   • Fine-Pitch Threading: The 1 mm pitch is ideal for fine-pitch threading applications where precision and smooth engagement are necessary. Fine-pitched threads are often used in applications that require a higher level of accuracy and where stronger thread engagement is needed.
5. Features:
   • Precision Threading: The NKP 10 X 1 MM die delivers precise, uniform threads with minimal effort, ensuring an accurate fit. This precision is crucial for industries where thread accuracy is important for the proper functioning of mechanical components.
   • Durability: Made from high-speed steel, the die is highly resistant to wear and heat, allowing it to withstand prolonged use without losing its sharpness. This results in longer tool life and reduced downtime for replacements.
   • Efficient Thread Cutting: The sharp cutting edges of the die enable efficient and quick threading. The multiple cutting edges ensure that the die cuts smoothly and evenly, resulting in fast and effective thread formation.
6. Applications:
   • Industrial Manufacturing: The NKP 10 X 1 MM die is widely used in industrial settings for cutting and repairing threads on components such as bolts, rods, and fasteners. Its fine-pitch threading makes it suitable for a variety of mechanical applications in manufacturing machinery and equipment.
   • Automotive Industry: In automotive applications, this die is used to create or restore threads on engine parts, fasteners, and other components. The 1 mm pitch is ideal for creating strong, secure threads in automotive systems.
   • Metalworking and Machining: Metalworkers and machinists use this die to create external threads on metal components. Its precision and efficiency make it ideal for use in machining operations where thread accuracy is crucial.
   • DIY and Home Use: DIY enthusiasts and hobbyists use this die for threading custom parts or repairing existing threaded components in their workshops. Its versatility and fine-pitch threading make it suitable for a wide range of home-based projects.
7. Advantages:
   • Long Life and Durability: The high-speed steel composition ensures that the die is highly durable and resistant to wear and heat, providing a longer tool life compared to other materials.
   • Precision and Accuracy: The die creates precise and clean threads, ensuring a perfect fit for fasteners and components that require high accuracy. This is essential for applications in industries that require reliable, high-quality threads.
   • Efficiency: The die is designed to cut threads quickly and efficiently, reducing the amount of time spent on each threading task. This makes it ideal for high-volume threading applications.
   • Heat Resistance: The high-speed steel material offers excellent heat resistance, which allows the die to perform well even in high-temperature environments without losing its cutting ability.
8. Handling and Usage:
   • Using with Die Stock: The NKP 10 X 1 MM die is typically used with a die stock or die holder, which provides leverage and control during threading. The die stock ensures that the die remains aligned with the workpiece and facilitates smooth, even cutting.
   • Threading Process: To use the die, align it with the workpiece and apply moderate pressure while rotating it. The die will create threads along the length of the workpiece. For thread repair, align the die with the damaged threads and rotate it to restore the threads to their original shape.

Summary:

The NKP 10 X 1 MM 1 Inch Dia High-Speed Steel Circular Die is an essential tool for cutting and repairing external threads on cylindrical components. With its 1 mm pitch and 10 mm nominal diameter, this die is ideal for creating fine threads in medium-sized components. Made from high-speed steel, it offers exceptional durability, heat resistance, and wear resistance, ensuring long-lasting performance in industrial, automotive, and metalworking applications. Whether used for creating new threads or restoring damaged ones, the NKP 10 X 1 MM die provides precise, clean threads and is a reliable choice for threading tasks.
