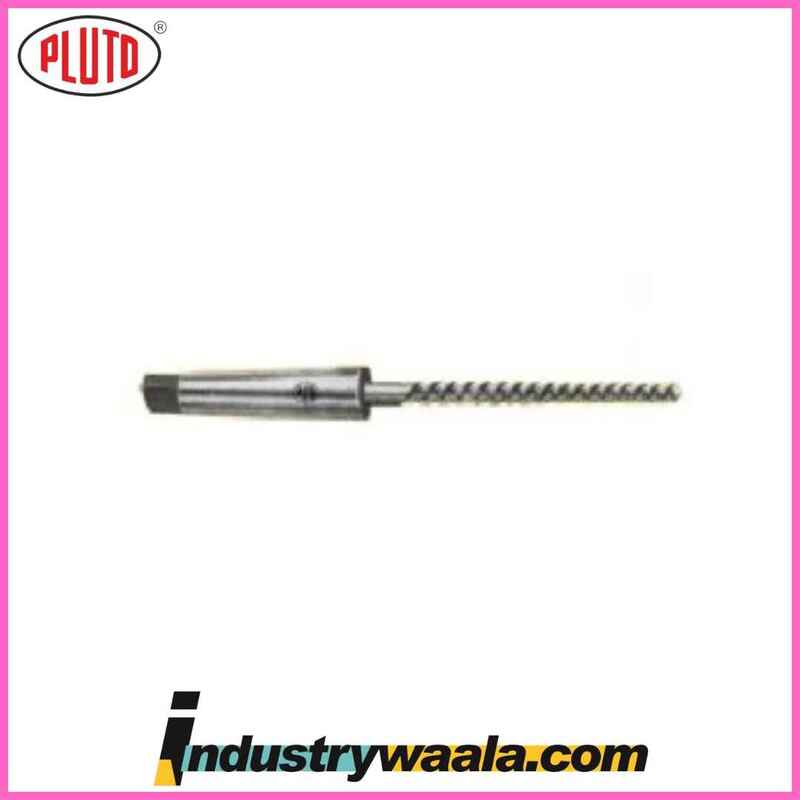

Pluto 11/32 X 5.3/32 X 8.3/32 X 0.347 Inch Machine Taper Pin Reamers

The Pluto 11/32 X 5.3/32 X 8.3/32 X 0.347 Inch Machine Taper Pin Reamers are high-precision reamers designed to finish tapered holes for the insertion of taper pins, which are used for aligning and fastening components in machinery and other industrial applications. These reamers ensure that taper pins fit securely, offering high accuracy and durability for tasks that require tight tolerances and exact hole dimensions.

Here’s a detailed breakdown of the Pluto 11/32 X 5.3/32 X 8.3/32 X 0.347 Inch Machine Taper Pin Reamers:

Key Features and Specifications:

1. Size and Dimensions:
   • Reamer Diameter: The 11/32 inch (approximately 8.73mm) diameter at the large end of the reamer is designed to match the taper pin size. This size is optimal for applications that require precise hole finishes for medium-sized taper pins.
   • Overall Length: The total length of the reamer is 5.3/32 inches (approximately 144mm), providing sufficient length for reaming deeper holes while maintaining the accuracy and stability of the tool during use.
   • Flute Length: The flute length is 8.3/32 inches (approximately 210mm), which ensures that the reamer can reach the required depth to finish tapered holes without the need for frequent retraction or excessive chip clearance.
   • Taper Pin Diameter: The reamer is designed for taper pins with a diameter of 0.347 inches (approximately 8.82mm) at the small end. This diameter matches the size of the taper pin that will fit into the reamed hole, ensuring a precise fit for proper alignment and fastening.
2. Taper Pin Reamer Design:
   • Tapered Geometry: These reamers have a tapered cutting edge, which follows a 1:48 taper ratio (or similar), allowing the hole diameter to increase gradually from the small end to the large end. This taper ensures a smooth, tight fit for the taper pin as it is inserted into the hole.
   • High Precision: The reamer is designed to create a hole with a very specific taper, ensuring that the hole matches the exact size and angle required for the taper pin. This precision is critical to ensuring that the taper pin fits securely and that parts are properly aligned or fastened.
3. Material Construction:
   • High-Speed Steel (HSS): These reamers are typically made from high-speed steel (HSS), a material that offers excellent durability, heat resistance, and the ability to maintain sharp cutting edges even under high-stress conditions. HSS reamers are ideal for finishing holes in a variety of materials, including steel, cast iron, and alloys.
   • Carbide-Tipped Options: In some versions, the reamers may feature carbide tips or coatings for enhanced hardness and wear resistance, particularly when used for tougher materials or high-volume production.
4. Flute Design:
   • The reamers feature spiral flutes, which help with efficient chip removal, minimizing the risk of clogging and overheating during the reaming process. This design also promotes smoother cutting action, reducing tool wear and ensuring a cleaner finish on the reamed hole.
   • The flute length allows for deep reaming without the need for frequent retraction, improving efficiency and reducing cycle time for each hole.
5. Cutting Action and Performance:
   • The cutting action of these reamers is optimized for finishing holes that are already drilled but require a precise, tapered finish to fit the taper pins. These reamers are not designed for heavy material removal but are instead intended for fine-tuning the dimensions of the hole and ensuring that the taper pin fits smoothly.
   • These reamers work best with a light feed and slower cutting speeds to avoid chatter, overheating, or excessive wear on the tool.

Applications:

1. Machine Assembly:
   • Taper pins are commonly used in machinery for aligning and securing parts, especially in assemblies that require precise positioning or are subject to mechanical stress. These reamers ensure the holes are perfectly sized for taper pins, allowing for accurate assembly and reliable joint integrity.
2. Automotive and Mechanical Engineering:
   • In automotive and mechanical engineering, taper pins are used to fasten components and ensure alignment in systems that require precise, secure fittings. The Pluto taper pin reamers are essential for creating the precise, tapered holes needed for these applications.
3. Tool and Die Making:
   • Taper pin reamers are often used in tool and die making to produce molds, dies, and fixtures that require precise alignment. These reamers help achieve the tight tolerances needed for taper pins used in these precision tools.
4. Heavy Machinery and Structural Fitting:
   • In heavy machinery and structural fitting, taper pins are often used to fasten and align large components under high mechanical load. These reamers are critical in ensuring that the holes are properly sized and the taper pins fit securely, allowing the structure or machinery to function correctly.
5. Maintenance and Repairs:
   • These reamers are also useful for maintenance and repair work where taper pins need to be replaced or holes need to be resized due to wear. The reamers ensure that replacement taper pins fit properly and that components are properly aligned once again.

Benefits:

• Precision: The Pluto 11/32 X 5.3/32 X 8.3/32 X 0.347 Inch Machine Taper Pin Reamers are manufactured to tight tolerances, ensuring that the reamed holes are exact and the taper pins fit perfectly, providing optimal alignment and fastening.
• Durability: Made from high-speed steel (HSS) or carbide-tipped material, these reamers are designed to provide long-lasting performance, even under heavy use and in tough materials.
• Efficient Cutting: The spiral flute design enhances chip removal and minimizes friction, ensuring a smooth cutting process and reducing the risk of tool wear or overheating.
• Versatility: These reamers are suitable for a wide range of industrial applications, including machinery assembly, automotive engineering, toolmaking, heavy equipment repair, and more.

Conclusion:

The Pluto 11/32 X 5.3/32 X 8.3/32 X 0.347 Inch Machine Taper Pin Reamers are high-quality, precision tools that are essential for creating tapered holes that precisely fit taper pins. These reamers are ideal for machine assembly, automotive engineering, toolmaking, and heavy machinery applications, where precise alignment and secure fastening are critical. Constructed from durable high-speed steel or carbide-tipped materials, these reamers offer excellent performance and longevity, ensuring tight tolerances and smooth cutting action for every job. Whether for new builds, repairs, or precision tooling, these reamers provide the accuracy and durability needed to ensure a perfect fit for taper pins.
