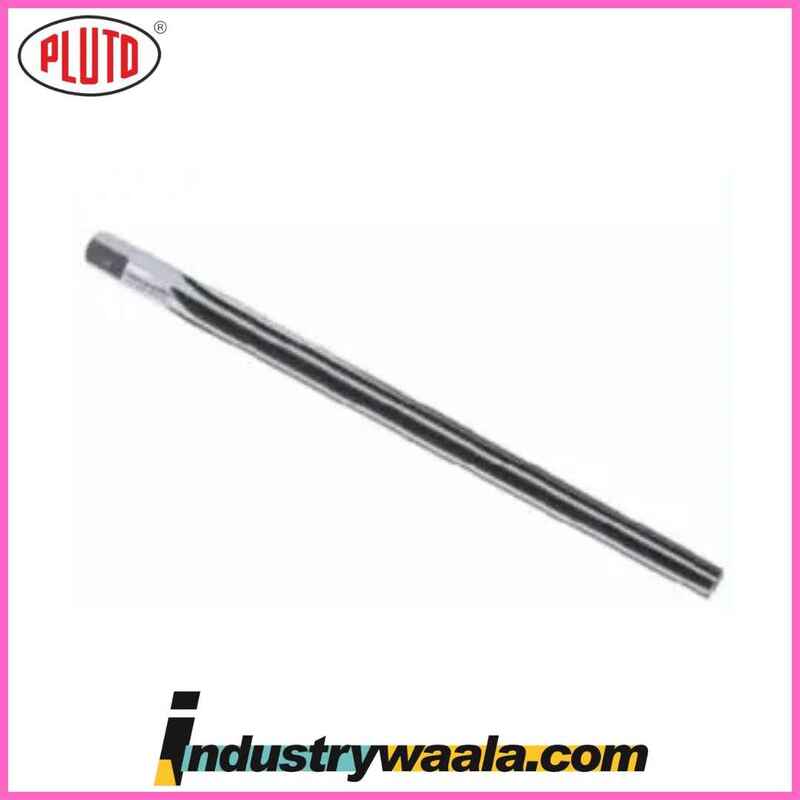

Pluto 1/2 X 6.1/2 X 8.1/4 X 0.506 X 0.3706 Inch Hand Taper Pin Reamers

The Pluto 1/2 X 6.1/2 X 8.1/4 X 0.506 X 0.3706 Inch Hand Taper Pin Reamer is a precision tool designed specifically for reaming tapered holes to fit 1/2 inch taper pins. These reamers are essential for applications that require precise alignment and fastening of mechanical components, and they are ideal for hand-operated reaming tasks. Taper pins are commonly used in mechanical assemblies, jigs, and fixtures to ensure that components are accurately aligned and securely held in place. The reamer's design ensures that tapered holes are finished with the correct size and taper, facilitating the easy insertion of taper pins for a snug, secure fit.

Key Features and Specifications:

1. Size and Dimensions:
   • Reamer Diameter: The reamer has a 1/2 inch (approximately 12.7mm) cutting diameter, which is the size of the hole that the reamer is designed to finish. This allows it to create tapered holes that accommodate 1/2 inch taper pins, which are commonly used for precise alignment in mechanical applications.
   • Flute Length: The 6.1/2 inches (approximately 165mm) flute length provides an extended cutting surface, allowing the reamer to work through deeper or longer holes while maintaining control and consistent reaming performance.
   • Overall Length: The 8.1/4 inches (approximately 210mm) overall length gives the tool ample reach, ensuring it can be used in a variety of applications where a longer reaming tool is necessary, or when working with larger workpieces.
   • Shank Diameter: The reamer has a 0.506-inch (approximately 12.85mm) shank diameter, which allows it to fit securely into a drill chuck or hand tool holder, providing stable operation during manual reaming.
   • Taper Pin Standard: The reamer is specifically designed to create tapered holes that match the standard taper pin dimensions for 1/2 inch taper pins. This ensures that the hole is reamed to the correct size and angle for a perfect fit with the taper pin.
2. Taper Design:
   • The reamer features a tapered cutting edge, which is designed to ream a hole with a specific taper angle that matches the standard taper pin dimensions. Typically, taper pins have a 1:48 taper (for every 48 units of length, the diameter increases by 1 unit).
   • This taper ensures that the hole expands gradually along its length, allowing the taper pin to fit snugly and be securely driven into the hole for alignment and fastening.
3. Cutting Material:
   • High-Speed Steel (HSS): The Pluto 1/2 X 6.1/2 X 8.1/4 X 0.506 X 0.3706 Inch Hand Taper Pin Reamer is typically made from high-speed steel (HSS), which is known for its durability and ability to retain sharpness even under high heat conditions. HSS is ideal for working with tough materials such as steel, cast iron, and alloys, ensuring the reamer can cut efficiently without dulling quickly.
   • Carbide-Tipped Option: In some versions of the reamer, carbide-tipped cutting edges may be used for extended durability and performance, especially when working with harder materials that require enhanced cutting power.
4. Flute Design:
   • The reamer is equipped with spiral flutes, which help clear chips and debris from the hole as the reaming process progresses. Efficient chip removal reduces friction and helps maintain smooth cutting action, preventing the reamer from binding and minimizing heat buildup.
   • Spiral flutes are designed to reduce the force required for reaming, resulting in a smoother, more efficient cutting process, which improves both tool life and hole quality.
5. Hand Tool Operation:
   • This reamer is designed for hand operation, making it ideal for applications where precise manual control is needed. It is often used in situations where power tools are impractical, such as in tight spaces, delicate materials, or small-scale machining work.
   • Hand-operated reamers allow the operator to feel the cutting process and make adjustments for accuracy, making them perfect for fine-tuning tapered holes that need to accommodate taper pins with a high degree of precision.

Applications:

1. Taper Pin Holes:
   • The primary application of this reamer is to create tapered holes that are sized to fit 1/2 inch taper pins. Taper pins are used in a wide range of mechanical applications to align parts and secure them in place.
2. Machinery and Equipment Assembly:
   • In machinery assembly, taper pins are used to align parts with high precision. This reamer ensures that the tapered holes are created to the correct dimensions, allowing the taper pins to fit securely and align the parts accurately.
3. Jigs and Fixtures:
   • In jig and fixture manufacturing, taper pins are used to align parts during manufacturing and assembly. The reamer ensures that the tapered holes in the jigs or fixtures are the correct size for the pins, helping to hold parts in place during machining.
4. Tooling:
   • In tooling applications, taper pins are often used to locate and secure tooling components for accurate machining. This reamer creates the correct hole size and taper to fit the pins, ensuring that the tooling components are properly aligned and securely mounted.
5. Custom Fabrication:
   • In custom fabrication or repair work, the reamer is used to create or restore tapered holes that are the correct size for 1/2 inch taper pins. It is perfect for reaming holes that need to be precisely sized for taper pins in custom-made machinery or repair jobs.
6. Precision Alignment:
   • The reamer is ideal for applications requiring precision alignment of mechanical parts. Taper pins are often used in applications where exact alignment is critical, such as in machine parts, automotive components, and aerospace assemblies.

Benefits:

• Precision Fit: This reamer ensures the creation of a precisely sized and tapered hole, allowing 1/2 inch taper pins to fit securely and align parts accurately. This helps to avoid misalignment and ensures that the taper pin works effectively for fastening or positioning.
• Durability: The use of high-speed steel (HSS) construction ensures that the reamer is durable and capable of reaming through tough materials without losing its cutting edge. The tool provides long-lasting performance, even under high stress.
• Smooth Cutting Action: The spiral flute design allows for smooth cutting action and efficient chip removal, preventing overheating, reducing friction, and minimizing the risk of tool damage or material deformation.
• Manual Control: The hand tool design provides the operator with direct control over the reaming process. This allows for fine adjustments and ensures that the holes are reamed to the correct dimensions and taper with a high level of accuracy.
• Versatility: This reamer is versatile and can be used in a variety of industries, including machinery assembly, tooling, jig and fixture manufacturing, and custom fabrication. It is also suitable for repair work and maintenance tasks.
• Efficient Chip Removal: The flute design helps in the effective removal of chips, keeping the cutting area clean and ensuring the reaming process progresses without interference or binding.

Conclusion:

The Pluto 1/2 X 6.1/2 X 8.1/4 X 0.506 X 0.3706 Inch Hand Taper Pin Reamer is a highly reliable and precise tool designed for reaming tapered holes to fit 1/2 inch taper pins. Whether used for machinery assembly, tooling, jigs and fixtures, custom fabrication, or repair work, this reamer ensures that taper pins fit securely and align components accurately. Its high-speed steel construction, combined with the spiral flute design, provides durability, efficient cutting, and smooth operation, making it suitable for a wide range of industrial applications. The hand-operated design offers the operator complete control over the reaming process, ensuring precise results every time.
