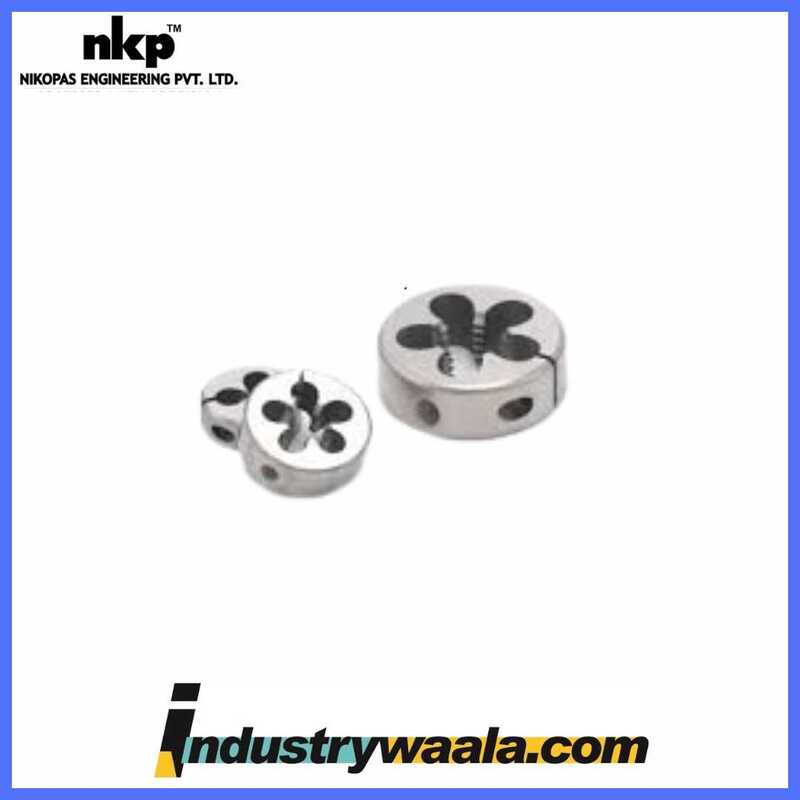

NKP 1/4 x 19 BSPT 1.5/16 Inch Dia Carbon Steel Circular Dies

The NKP 1/4 x 19 BSPT 1.5/16 Inch Dia Carbon Steel Circular Dies are high-precision tools designed to cut BSPT (British Standard Pipe Tapered) threads on 1/4-inch diameter pipes or rods. Made from carbon steel, these dies are engineered for durability, performance, and accuracy in a variety of industrial and mechanical applications, particularly where leak-proof pipe connections are crucial. Below is a breakdown of the key features and specifications of this product:

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP is the brand or type of the die, known for manufacturing high-quality, precision-engineered threading tools. NKP products are designed to deliver reliable performance and long-lasting durability across a wide range of applications in industries like plumbing, hydraulics, mechanical work, and gas systems.

2. 1/4 x 19 BSPT

• 1/4 x 19 BSPT refers to the size and thread type of the die:
  • 1/4″ refers to the diameter of the pipe or rod being threaded, which is 1/4 inch (approximately 6.35 mm).
  • 19 BSPT stands for British Standard Pipe Tapered threads, which have a tapered design that provides a tight seal when threaded components are joined together. The 19 TPI (threads per inch) indicates the pitch of the thread, and the tapered nature ensures a secure, leak-proof connection when the components are threaded together.

3. 1.5/16 Inch Dia

• The 1.5/16-inch diameter (approximately 40.64 mm) refers to the diameter of the circular die. This size ensures that the die can be effectively used to cut 1/4-inch BSPT threads while maintaining a high level of precision and durability.

4. Carbon Steel Construction

• Carbon steel is used for the construction of the die, providing it with excellent strength, resilience, and wear resistance. Carbon steel is known for its ability to withstand high mechanical stresses, making it ideal for threading applications that involve frequent use and require long-lasting performance.

5. Circular Dies

• Circular dies are specifically designed for cutting external threads on cylindrical workpieces like pipes, rods, and bolts. The die is mounted in a die stock or holder that allows it to rotate while cutting threads into the workpiece. The circular design of the die ensures consistent and smooth threading, providing high-quality results.

Applications:

• Pipe Threading: The NKP 1/4 x 19 BSPT 1.5/16 Inch Dia Carbon Steel Circular Die is ideal for cutting BSPT threads on 1/4-inch diameter pipes, commonly used in plumbing, hydraulic systems, and gas systems. The BSPT threads ensure a secure, leak-proof seal when components are threaded together.
• Hydraulics and Pneumatics: The die is also used in hydraulic and pneumatic systems where tapered pipe threads are required for high-pressure connections and the prevention of leaks.
• Industrial & Mechanical Systems: This die is perfect for creating precise, standardized threads for components in machinery and mechanical assemblies, where reliable and durable threaded connections are critical.
• Fluid and Gas Systems: The BSPT threads are designed to be used in fluid and gas systems, where secure, leak-proof fittings are essential for the safety and functionality of the system.

Key Features:

• Threading Capacity: The 1.5/16-inch die diameter ensures that the die can efficiently cut 1/4-inch BSPT threads, making it suitable for smaller diameter pipes and providing precise, consistent threading.
• Durability: The die’s carbon steel construction offers superior strength, ensuring that it can withstand the mechanical stresses of threading while maintaining sharpness and precision over time.
• Precision: The 19 TPI BSPT threads ensure that the die creates accurate, standardized BSPT threads, ideal for tight, secure connections in plumbing, hydraulic, and gas systems.
• Versatility: This die is widely used across various industries for creating high-quality threads on small-diameter pipes and components, ensuring leak-proof seals in demanding applications.

Conclusion:

The NKP 1/4 x 19 BSPT 1.5/16 Inch Dia Carbon Steel Circular Die is a durable, high-performance threading tool designed for cutting BSPT threads on 1/4-inch diameter pipes or rods. Made from carbon steel, it provides long-lasting performance, wear resistance, and precision for applications in plumbing, hydraulic systems, mechanical systems, and gas systems. With its 1.5/16-inch diameter, the die is designed to offer consistent, reliable cuts that meet BSPT thread standards, ensuring tight, leak-proof seals for secure connections.
