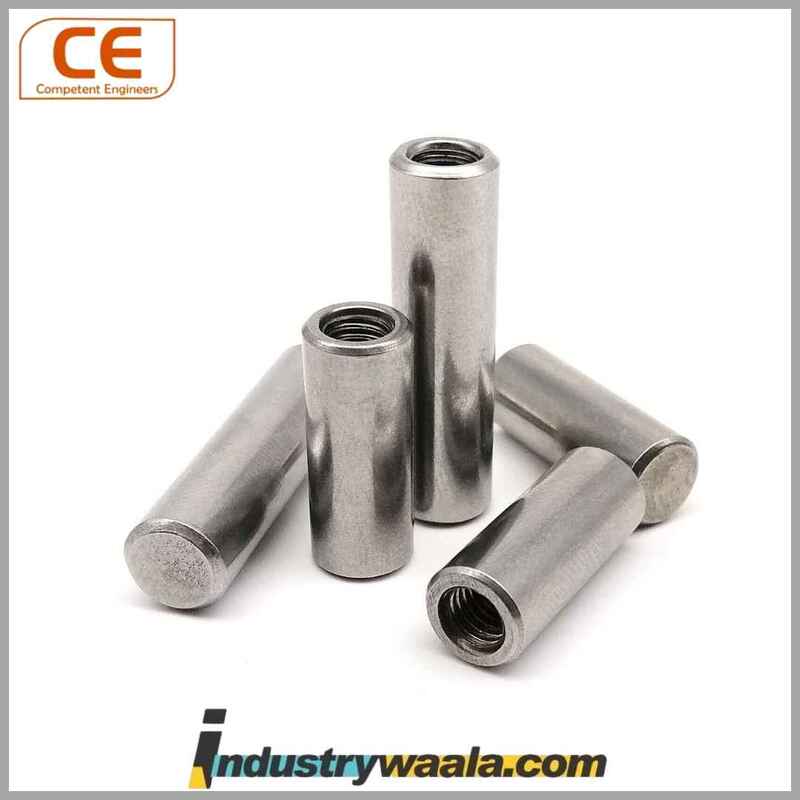

CE 20 X 120 MM Internal Threaded Dowel Pin Quantity : 15 pcs

The CE 20 x 120 mm Internal Threaded Dowel Pin is a robust, precision-engineered fastening component designed for various mechanical, automotive, and industrial applications. Featuring a 20 mm diameter and 120 mm length, this dowel pin provides superior strength and stability for medium to heavy-duty applications that require precise alignment and secure fastening. The internal threading allows for threaded connections, making it highly versatile and ideal for systems that require both alignment and secure attachment.

Key Features:

• Diameter (20 mm): The 20 mm diameter ensures a secure and firm fit in large components, allowing the dowel pin to bear heavy loads and maintain precise alignment in mechanical systems.
• Length (120 mm): The 120 mm length is ideal for medium to heavy-duty applications, offering sufficient reach and support for longer alignments or fastening needs in machinery or automotive systems.
• Internal Threading: The internal threading in the dowel pin provides the ability to securely integrate into threaded systems, enabling an added layer of flexibility and stability in complex assemblies.
• Material Construction: Manufactured from high-quality materials such as stainless steel, carbon steel, or corrosion-resistant alloys, this dowel pin is engineered to withstand mechanical stress, vibrations, and harsh environmental conditions.
• Finish Options: Available with various protective coatings such as zinc plating, black oxide, or passivation to enhance corrosion resistance and increase durability in challenging conditions.
• Precision Engineering: Built with precise tolerances, the dowel pin ensures consistent quality and a perfect fit for reliable operation and longevity in mechanical systems.

Applications:

• Machinery & Equipment: The CE 20 x 120 mm internal threaded dowel pin is essential for aligning and fastening components in machinery, providing secure attachment and precise positioning of moving parts.
• Automotive Industry: In the automotive sector, it plays a crucial role in securing engine parts, suspension systems, and transmission components, where high strength and accurate alignment are critical.
• Construction & Structural Assemblies: The dowel pin is used in construction to align and secure larger structural components, ensuring stability and maintaining the integrity of large-scale assemblies.
• Robotics & Automation: This dowel pin is also used in robotic systems, conveyors, and automated machinery, where precision, strength, and alignment are key for optimal performance.
• Jigs, Fixtures & Custom Tools: It is commonly used in manufacturing to align and secure components in jigs, fixtures, and custom tooling setups, allowing for accurate, repeatable results.

Functionality:

The CE 20 x 120 mm internal threaded dowel pin serves several important functions in mechanical systems:

1. Accurate Alignment: The dowel pin ensures that components stay properly aligned within a system, preventing misalignment and reducing wear and tear on critical parts.
2. Threaded Connection: The internal threading feature allows the dowel pin to be securely attached to threaded components, adding an extra layer of stability to the system.
3. Ease of Installation & Adjustment: The internal threads simplify installation and removal, making it easier to adjust or replace components as needed without compromising alignment or integrity.

Advantages:

• Strength & Durability: Made from high-strength materials, this dowel pin is designed to withstand mechanical stress and heavy loads, ensuring long-lasting performance even in demanding applications.
• Corrosion Resistance: Available with protective finishes such as zinc plating or black oxide, the dowel pin offers enhanced resistance to corrosion, making it suitable for use in outdoor or chemically aggressive environments.
• Versatility: The CE 20 x 120 mm internal threaded dowel pin is versatile, suitable for use in machinery, automotive, construction, and robotics, making it a reliable choice for many different systems.
• Ease of Use: The threaded design allows for easy installation and removal, reducing the time and effort required for assembly, disassembly, or maintenance.
• Precision Fit: With its precision-engineered design, the dowel pin provides an accurate fit, ensuring smooth operation and minimizing wear in mechanical systems.

The CE 20 x 120 mm Internal Threaded Dowel Pin is a durable, high-performance fastening solution ideal for applications requiring secure alignment and stability. Whether used in industrial machinery, automotive systems, construction, or robotics, this dowel pin ensures strong, precise connections that enhance the reliability and performance of mechanical systems. Its internal threading feature provides versatility, allowing for threaded connections in addition to alignment, making it a valuable component for a wide range of applications. With corrosion-resistant finishes and precision engineering, it offers long-lasting performance in even the most challenging environments.
