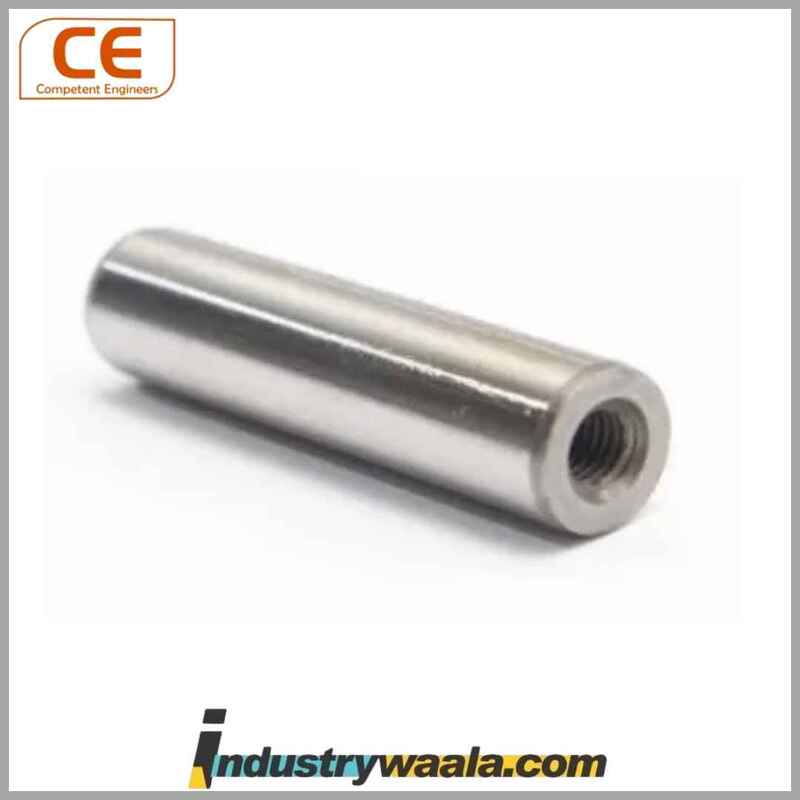

CE 20 X 200 MM Internal Threaded Dowel Pin Quantity : 15 pcs

The CE 20 x 200 mm Internal Threaded Dowel Pin is a precision-engineered fastening component designed for a wide range of mechanical, automotive, and industrial applications. With its 20 mm diameter and 200 mm length, this dowel pin offers strength, stability, and reliable performance, making it ideal for medium to heavy-duty applications that require precise alignment and secure fastening. The internal threading feature allows for threaded connections, providing an added layer of versatility in systems where both alignment and secure attachment are necessary.

Key Features:

• Diameter (20 mm): The 20 mm diameter ensures a strong, secure fit and optimal load-bearing capacity in systems that require robust mechanical connections and precise alignment.
• Length (200 mm): The 200 mm length makes it suitable for larger or deeper components, where long alignment and fastening are necessary for structural integrity and accurate positioning.
• Internal Threading: The internal threads on the dowel pin allow for secure attachment to threaded rods, bolts, or screws, making it an ideal choice for systems requiring both alignment and a threaded connection for extra stability.
• Material: Crafted from high-quality, durable materials such as stainless steel, carbon steel, or corrosion-resistant alloys, this dowel pin is built to withstand mechanical stress and environmental challenges while maintaining its integrity.
• Finish Options: Available with various finishes, including zinc plating, black oxide, or passivation, the dowel pin offers enhanced protection against corrosion, making it suitable for use in harsh environments.
• Precision Engineering: Manufactured with strict precision to ensure consistent quality, this dowel pin guarantees smooth operation and accurate alignment in mechanical systems.

Applications:

• Machinery & Equipment: The CE 20 x 200 mm internal threaded dowel pin is ideal for aligning components in large machinery and industrial equipment, ensuring precise positioning and a secure fit for smooth operation.
• Automotive Industry: In the automotive sector, the dowel pin is used for aligning and securing critical components such as engine parts, suspension systems, and transmission systems, where strong and reliable connections are essential.
• Construction & Structural Assemblies: It is widely used in the construction of large structures, frameworks, and supports, where precise alignment and secure fastening are required to maintain stability and ensure safety.
• Robotics & Automation: The dowel pin plays a crucial role in robotic systems, conveyor systems, and automated machinery, where precise alignment, strength, and secure fastening are required for optimal performance.
• Jigs, Fixtures & Custom Tools: In manufacturing processes, the dowel pin is used for aligning parts and securing them in jigs, fixtures, and custom tooling, ensuring accurate, repeatable results.

Functionality:

The CE 20 x 200 mm internal threaded dowel pin provides:

1. Accurate Alignment: The dowel pin ensures that components remain perfectly aligned, reducing the risk of misalignment and maintaining the functionality of the mechanical system.
2. Threaded Attachment: The internal threading allows the dowel pin to securely integrate into threaded systems, providing an additional layer of stability and strength.
3. Ease of Installation and Adjustment: The threaded feature simplifies the installation and adjustment process, making it easier to assemble or disassemble components as needed.

Advantages:

• Durability & Strength: Constructed from high-strength materials, the dowel pin offers superior strength and durability, even in demanding applications that involve heavy loads and mechanical stress.
• Corrosion Resistance: With its available finishes such as zinc plating or black oxide, the dowel pin offers corrosion resistance, making it ideal for use in outdoor, high-moisture, or chemically aggressive environments.
• Versatility: The CE 20 x 200 mm internal threaded dowel pin can be used across a wide range of industries, including machinery, automotive, robotics, construction, and manufacturing, making it a versatile solution for many applications.
• Ease of Use: The internal threading feature simplifies assembly and disassembly, allowing for faster maintenance and repair, as well as the flexibility to make adjustments when needed.
• Precision Engineering: Designed and manufactured to high precision, the dowel pin ensures an accurate fit and smooth operation, reducing wear and tear in mechanical systems.

The CE 20 x 200 mm Internal Threaded Dowel Pin is a versatile, durable, and high-performance component that ensures reliable alignment and secure fastening in a wide range of mechanical and industrial applications. Whether used in machinery, automotive systems, robotics, construction, or manufacturing, this dowel pin provides the precision, strength, and stability required for optimal performance. The internal threading offers increased flexibility for threaded connections, making it a valuable tool for a variety of applications requiring both alignment and secure attachment.
