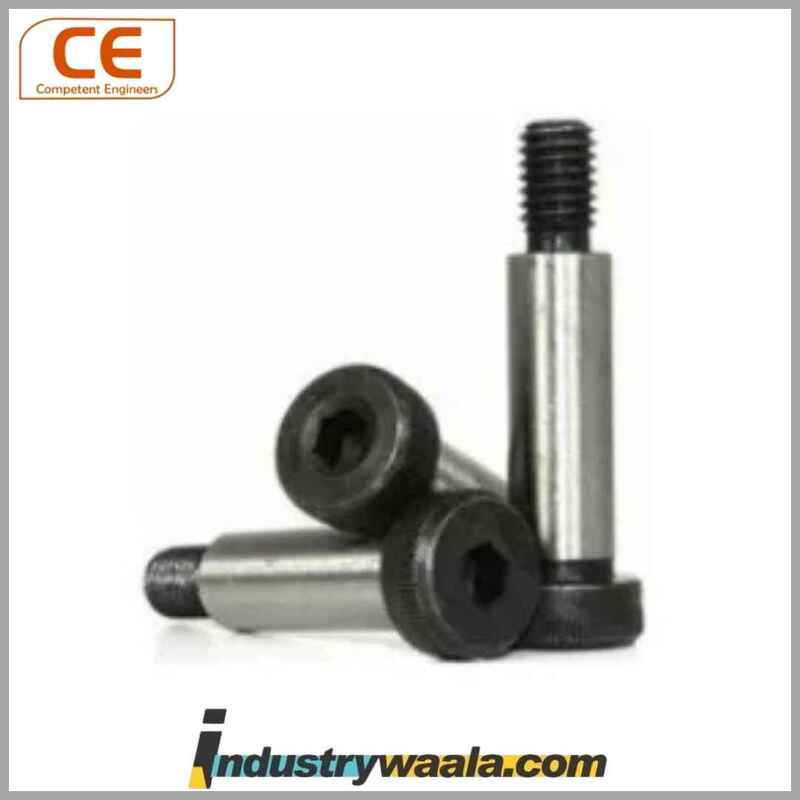

CE 6 - M5 X 25 MM Shoulder Screws Bolt Quantity : 5 pcs

The CE 6 - M5 x 25 mm Shoulder Screw is a high-precision fastening solution designed for a wide range of mechanical, automotive, robotics, and industrial applications. This shoulder screw offers 25 mm of length and features an unthreaded shoulder, providing smooth, low-friction rotational or pivoting movement. Ideal for systems where alignment and precise movement are critical, this component ensures both durability and reliable performance, even in demanding environments.

Key Features:

• Thread Size (M5): With a nominal diameter of 5 mm, the M5 x 25 mm shoulder screw offers a secure, stable fastening solution for a wide range of systems that require light- to medium-duty fasteners.
• Length (25 mm): The 25 mm length is ideal for applications that need a compact shoulder screw while maintaining both strength and precision for movement and alignment.
• Unthreaded Shoulder: The unthreaded portion of the screw allows for smooth pivoting or rotational motion, minimizing friction and wear on components and ensuring the longevity of moving parts.
• Material: Constructed from high-strength materials, such as carbon steel, stainless steel, or corrosion-resistant alloys, the shoulder screw is designed to withstand mechanical stresses and resist wear and corrosion.
• Finish Options: Available with corrosion-resistant finishes like zinc plating, black oxide, or passivated steel, this shoulder screw is well-suited for use in harsh environments or applications exposed to moisture or chemicals.
• Head Type: The screw is available in different head styles, such as hex, socket, or flat, providing flexibility in installation based on the specific tools needed for your system.
• Thread Pitch: The M5 thread comes with a standard 0.8 mm pitch, ensuring compatibility with various systems and making it a versatile fastening option for numerous applications.

Applications:

• Machinery & Equipment: The CE 6 - M5 x 25 mm shoulder screw is ideal for use in machinery that requires secure attachment and smooth rotation or pivoting, including linkages, shafts, and arms.
• Automotive Industry: In automotive applications, this shoulder screw is commonly used in systems that require precision movement, such as steering components, suspension systems, and other mechanical parts.
• Robotics & Automation: The unthreaded shoulder allows for precise, low-friction motion, making it suitable for robotic arms, conveyor systems, and other automated applications where controlled movement is essential.
• Electronics & Electrical Assemblies: This shoulder screw is perfect for securing components in electronics or electrical assemblies, such as mounting brackets or heat sinks, while allowing for movement where needed.
• Custom Fixtures & Structural Applications: In custom jigs, fixtures, and other structural systems, the M5 x 25 mm shoulder screw provides reliable performance and smooth movement, ensuring accurate alignment in mechanical designs.

Functionality:

The CE 6 - M5 x 25 mm shoulder screw is designed to:

1. Enable Smooth Pivoting & Rotation: The unthreaded shoulder section facilitates low-friction motion, allowing parts to rotate or pivot without excessive wear, thus improving system performance.
2. Ensure Precision Alignment: The shoulder provides precise alignment of components, preventing misalignment and enhancing the efficiency and accuracy of mechanical systems.

Advantages:

• Durability & Load-Bearing Capacity: Designed to withstand mechanical stresses, the M5 x 25 mm shoulder screw provides long-lasting, reliable performance in a variety of applications.
• Corrosion Resistance: Coatings like zinc plating, black oxide, or passivated steel offer superior corrosion resistance, ensuring the screw’s longevity even in harsh or outdoor environments.
• Versatility: This shoulder screw is used in multiple industries, including automotive, machinery, robotics, and electronics, offering a versatile solution for many fastening and movement needs.
• Easy Installation: Available with various head types, including hex, socket, or flat, it can be easily installed with the appropriate tools, streamlining assembly and reducing downtime.
• Cost-Effective: The screw’s durability and long service life reduce the need for frequent replacements, making it a cost-effective choice for long-term use.

The CE 6 - M5 x 25 mm Shoulder Screw provides a reliable solution for systems requiring secure attachment and smooth rotational or pivoting movement. With its durable design, corrosion resistance, and versatility, this shoulder screw is ideal for use in a wide variety of applications across industries such as machinery, automotive, robotics, and electronics. Whether used for light- to medium-duty applications or precision alignment, the M5 x 25 mm shoulder screw ensures long-lasting performance and operational efficiency.
