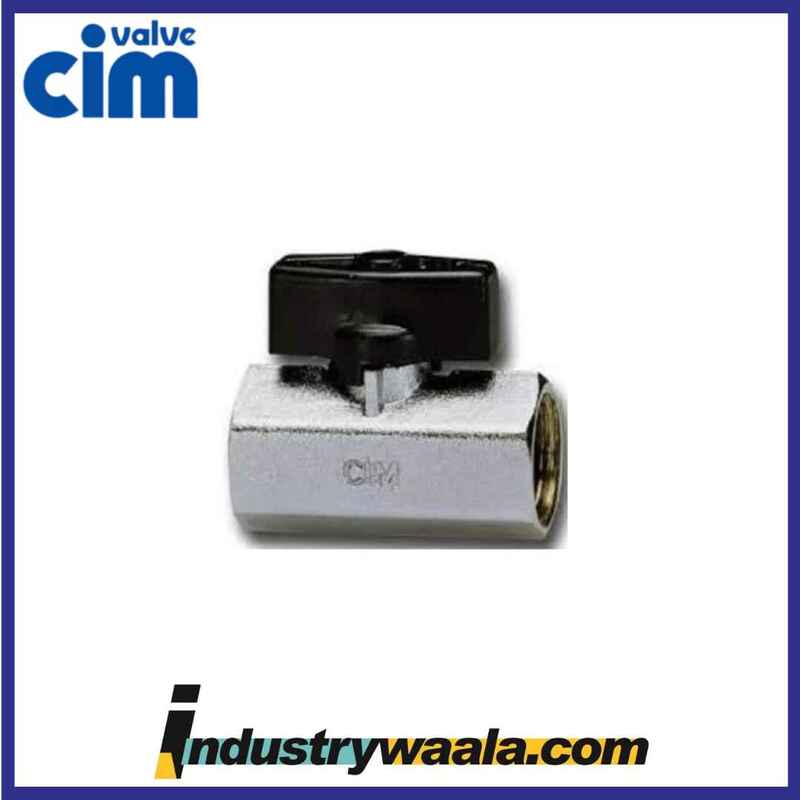

Cim 011, 1/2Inch & 15mm Forged Brass Mini Ball Valve, Screwed End

The CIM 011, 1/2-Inch & 15mm Forged Brass Mini Ball Valve, Screwed End is a compact and highly reliable ball valve designed for small-scale fluid control applications in a variety of systems, including plumbing, HVAC, and industrial fluid handling systems. It offers on/off flow control with a durable and corrosion-resistant forged brass body.

Key Features:

1. Forged Brass Construction:

   • The valve body is made of forged brass, a material known for its strength, durability, and resistance to corrosion. This ensures the valve performs well even in harsh environments, such as systems with water, gas, or other non-corrosive fluids.
   • Brass construction also helps maintain the integrity of the valve under high pressure and temperature conditions.

2. Mini Ball Valve Mechanism:

   • The ball valve mechanism features a hollow ball inside the valve body that rotates to control fluid flow. When the ball aligns with the flow path, the valve is open, and when the ball rotates 90 degrees, the flow is blocked (closed). This mechanism ensures a tight seal when closed, preventing any leakage.
   • The mini ball valve is particularly useful in applications requiring reliable on/off control with minimal maintenance.

3. 1/2-Inch (15mm) Size:

   • The 1/2-inch (15mm) nominal size makes this valve ideal for use in medium to small flow systems. It’s commonly used in plumbing, heating, and cooling systems, particularly where space is limited but reliable control is required.
   • It’s suitable for systems that require moderate flow rates, making it versatile across different applications.

4. Screwed End Connections:

   • The valve comes with screwed end connections, meaning it can be easily installed by threading the valve onto matching threaded pipes or fittings.
   • Screwed connections ensure a secure seal and make installation and replacement quick and easy.

5. Compact Design:

   • The mini ball valve is designed to fit into smaller spaces without sacrificing performance. Its compact size is ideal for tight spaces in both residential and commercial systems where larger valves may not fit.

6. Manual Operation:

   • The valve operates manually with a handle or lever that allows users to open or close the valve with ease. This makes it easy to control the flow of water, gas, or other fluids in systems where manual shut-off is required.

Potential Specifications:

• Model Number: CIM 011
• Nominal Size: 1/2 inch (15mm)
• Material: Forged Brass – corrosion-resistant and durable.
• Valve Type: Mini Ball Valve – offers precise on/off control of fluid flow.
• End Connections: Screwed End – designed for threaded pipe connections, typically BSPT or BSPP.
• Pressure Rating: Typically rated for medium-pressure systems, generally up to 16-25 bar, depending on the design and material.
• Temperature Range: Suitable for use in environments with temperatures ranging from -20°C to 120°C or higher, depending on material specifications.
• Flow Control: On/Off control with a tight seal when closed to prevent leaks.
• Handle Type: Manual operation using a lever or handle to open/close the valve.
• Seals: Leak-proof seals to ensure a reliable, long-lasting performance in fluid systems.

Applications:

1. Plumbing Systems:

   • The CIM 011, 1/2-inch mini ball valve is commonly used in residential and commercial plumbing applications to control the flow of water in smaller pipes, such as under sinks, faucets, and washing machines.
   • Ideal for isolating or shutting off water flow in household systems or light commercial applications.

2. HVAC Systems:

   • Used in heating, ventilation, and air conditioning (HVAC) systems, particularly in hydronic heating or cooling systems, where water flow needs to be controlled or isolated.
   • Can be used in radiator systems or other fluid-based temperature control devices.

3. Fluid Control Systems:

   • Perfect for applications requiring precise on/off flow control, such as gas lines, compressed air systems, or chemical fluid handling systems.
   • Ensures reliable shut-off of fluids, reducing the risk of spills or leaks.

4. Industrial Applications:

   • In industrial machinery, manufacturing processes, and machine cooling, where the flow of water or other fluids must be controlled, the CIM 011 mini ball valve offers an efficient and durable solution.

5. Underfloor Heating Systems:

   • Suitable for controlling the flow of water to underfloor heating systems, allowing for easy isolation and flow regulation in smaller sections or zones.

Advantages:

• Durability: The forged brass body provides excellent resistance to corrosion, ensuring a long service life.
• Compact Design: Small size allows for installation in tight spaces where larger valves would be impractical.
• Easy Installation: Screwed end connections ensure quick, secure installation, and ease of replacement.
• Reliable Flow Control: The ball valve mechanism provides a positive shut-off and reliable flow control with minimal effort.
• Corrosion Resistance: Brass construction offers superior protection against the elements, ensuring reliable performance over time.

Conclusion:

The CIM 011, 1/2-Inch & 15mm Forged Brass Mini Ball Valve, Screwed End is an ideal choice for small to medium-sized systems where precise flow control, durability, and ease of installation are essential. The forged brass construction ensures long-lasting performance, while the mini ball valve design allows for efficient on/off flow control. Its screwed end connections make installation simple and secure, while the compact design ensures it fits in tight spaces, making it an excellent solution for plumbing, HVAC, and industrial fluid control applications.
