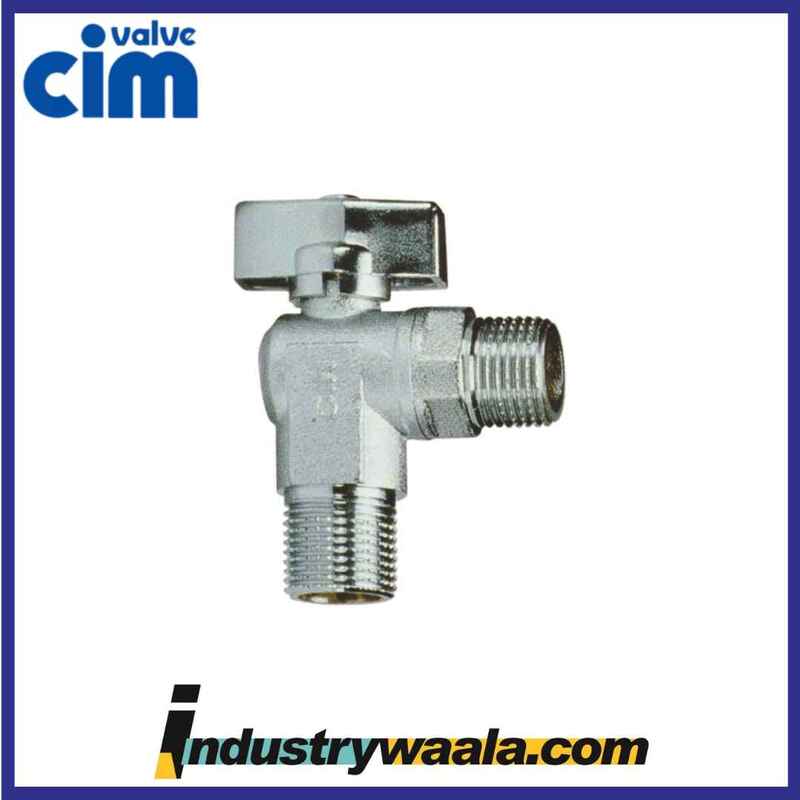

Cim 45, 1/2Inch & 15mm Forged Brass Right Angle Mini Ball Valve

The CIM 45, 1/2-Inch & 15mm Forged Brass Right Angle Mini Ball Valve is a compact, durable valve designed for fluid control in small-scale applications. It features a right-angle design for installation in systems where space is constrained, offering precise flow control for water, gas, and other non-corrosive fluids.

Key Features:

1. Right Angle Design:

   • The right-angle design allows the valve to control flow at a 90-degree angle to the pipe, making it especially useful for installations in tight spaces or systems with restricted layouts.
   • This configuration allows for easy redirection of fluid flow in confined or complex piping arrangements, optimizing system design and space usage.

2. Forged Brass Construction:

   • The forged brass body provides strength, durability, and resistance to corrosion, ensuring long-term reliability in fluid control systems. Brass is ideal for handling water, gas, and non-corrosive fluids, especially in environments where resistance to wear and tear is essential.
   • Brass also offers thermal stability, meaning it can handle temperature fluctuations commonly found in HVAC or plumbing systems.

3. 1/2-Inch (15mm) Size:

   • The valve is sized for 1/2-inch (15mm) pipes, making it suitable for medium to small flow systems in both residential and commercial applications. This size is common for plumbing, HVAC, and fluid control systems that do not require high flow rates but need reliable, precise flow regulation.

4. Ball Valve Mechanism:

   • The ball valve design features a hollow ball inside the valve body, which rotates 90 degrees to control the flow of fluid. When the ball aligns with the pipe, the valve is open, and when it rotates to the perpendicular position, it blocks the flow.
   • This provides a tight seal and ensures that the valve completely shuts off the flow when closed, minimizing the risk of leaks.

5. Manual Operation:

   • The valve is manually operated, typically with a lever or handle, allowing for quick and easy opening and closing of the valve. This gives the operator precise control over the flow of water or other fluids in the system.

6. Screwed End Connections:

   • The valve is equipped with screwed end connections, which are designed for easy attachment to threaded pipes. The BSPT (British Standard Pipe Thread) or BSPP (British Standard Parallel Thread) is commonly used, ensuring a secure and leak-proof connection.
   • The threaded connection makes installation and replacement straightforward, ensuring the valve can be easily integrated into existing systems.

Potential Specifications:

• Model Number: CIM 45
• Nominal Size: 1/2 inch (15mm)
• Material: Forged Brass – corrosion-resistant, durable, and heat-resistant.
• Valve Type: Right Angle Mini Ball Valve – designed to provide on/off flow control with a 90-degree angle.
• End Connections: Screwed End – typically BSPT or BSPP threads for secure, leak-proof connections.
• Pressure Rating: Typically rated for medium-pressure systems up to 16-25 bar, depending on the design and material.
• Temperature Range: Suitable for a temperature range from -20°C to 120°C, depending on material specifications and application conditions.
• Flow Control: Provides a positive shut-off and precise on/off control of fluid flow.
• Handle Type: Manual lever or handle for ease of operation.
• Seals: Leak-proof seals designed to ensure tight closure and long-term reliability.

Applications:

1. Plumbing Systems:

   • The CIM 45 right-angle ball valve is ideal for use in residential and commercial plumbing systems, providing reliable isolation or flow control in water lines, gas systems, or similar low to medium-pressure applications.
   • Perfect for use in systems where a 90-degree turn is required or where space is limited.

2. HVAC Systems:

   • In HVAC applications, the valve can control water flow in hydronic systems, heating/cooling circuits, or radiator connections where space optimization and precise flow control are critical.
   • It’s also useful in fan coil units (FCUs), where compact and efficient components are essential for system performance.

3. Fluid Control Systems:

   • The valve can be used in various fluid control applications, such as compressed air systems, chemical or gas processing systems, and irrigation systems, where precise flow regulation is necessary.
   • Its compact size and right-angle design allow for easy integration into systems with complex piping layouts.

4. Industrial & Commercial Applications:

   • The CIM 45 valve is suitable for use in industrial machinery, manufacturing, and process control systems, where a compact and reliable valve is needed for controlling the flow of water, gas, or other non-corrosive fluids.
   • It is also ideal for oil and gas applications, machine cooling, and lubrication systems.

Advantages:

• Compact and Space-Efficient: The right-angle design is perfect for installations in tight spaces, reducing the need for additional piping and fittings.
• Durable Construction: The forged brass body ensures the valve can withstand harsh conditions, including high temperatures and pressures.
• Reliable Flow Control: The ball valve mechanism offers precise on/off control, ensuring that fluid flow is effectively managed.
• Easy Installation: Screwed end connections make installation and maintenance straightforward and quick.
• Corrosion and Wear Resistance: Brass construction offers excellent resistance to corrosion and wear, ensuring long-term performance with minimal maintenance.
• Versatility: Suitable for various applications, including plumbing, HVAC, and industrial systems.

Conclusion:

The CIM 45, 1/2-Inch & 15mm Forged Brass Right Angle Mini Ball Valve is an excellent solution for applications requiring reliable flow control in a compact design. Its forged brass construction ensures long-term durability, while the right-angle design allows for easy installation in tight or complex piping layouts. With a manual ball valve mechanism, the CIM 45 offers precise on/off control and is suitable for plumbing, HVAC, and fluid control systems.
