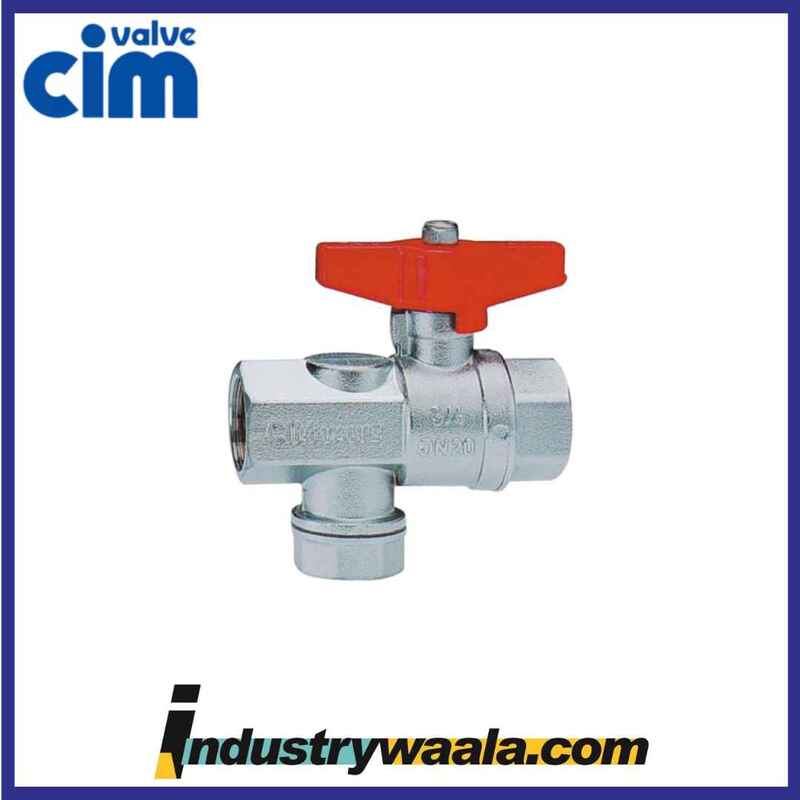

Cim 620, 1/2Inch & 15mm Forged Brass Ball VLV With Inbuilt Strainer, Screwed End

The CIM 620, 1/2-Inch & 15mm Forged Brass Ball Valve with Inbuilt Strainer, Screwed End is a reliable and durable valve designed for fluid control applications, offering both on/off flow control and the added benefit of an inbuilt strainer. This combination ensures smooth operation by filtering out debris or particles, protecting downstream equipment from damage caused by impurities in the fluid. It's well-suited for a wide range of plumbing, HVAC, and industrial systems where water or other fluids need to be regulated.

Key Features:

1. Forged Brass Construction:

   • The valve is made from forged brass, ensuring high strength, durability, and corrosion resistance.
   • Brass is known for its ability to withstand exposure to water and other fluids without rusting or deteriorating, ensuring a long lifespan and reliability in various fluid systems.

2. 1/2-Inch & 15mm Size:

   • Designed for 1/2-inch (15mm) pipe connections, this valve is suitable for medium-flow systems.
   • It is commonly used in residential plumbing, small HVAC systems, and industrial fluid control applications.

3. Ball Valve Mechanism:

   • The ball valve mechanism provides quick and easy on/off flow control. It consists of a hollow ball inside the valve body that rotates to either allow or block fluid flow. When aligned with the pipe, the valve is open, allowing fluid to pass through, and when rotated 90 degrees, the valve is closed, blocking the flow.
   • This design offers reliable performance, making it ideal for applications where precise flow control is required.

4. Inbuilt Strainer:

   • The inbuilt strainer is a key feature that filters out dirt, debris, and other particles from the fluid before it enters downstream equipment, such as pumps, valves, or machinery.
   • The strainer helps to prevent clogging and damage to sensitive components, extending the life of your equipment and improving system efficiency.
   • The strainer is typically made of stainless steel mesh, providing excellent durability and corrosion resistance.

5. Screwed End Connections:

   • The screwed end connections make installation easy and ensure a leak-proof seal with threaded pipes.
   • These connections are typically compatible with BSPT (British Standard Pipe Thread) or BSPP (British Standard Parallel Pipe), ensuring that they fit well in a variety of systems.

6. Manual Operation:

   • The valve is manually operated via a lever or handle, allowing users to quickly and easily open or close the valve, providing on-the-spot flow control.

Potential Specifications:

• Model Number: CIM 620
• Nominal Size: 1/2 inch (15mm)
• Material: Forged Brass – strong, durable, and resistant to corrosion.
• Valve Type: Ball Valve with Inbuilt Strainer – provides on/off control with a built-in filtration mechanism.
• End Connections: Screwed End – ideal for use with threaded pipes (BSPT or BSPP).
• Strainer: Inbuilt strainer for filtering out debris and particles from the fluid.
• Pressure Rating: Typically rated for medium-pressure systems, with pressure ratings of 10-16 bar depending on specific application and requirements.
• Temperature Range: Operates in a typical range of -20°C to 120°C, depending on the fluid and system conditions.
• Flow Control: On/off control with the added benefit of straining fluid to protect downstream equipment.
• Handle Type: Manual lever or handle for ease of operation.
• Strainer Mesh: Typically made of stainless steel mesh, providing high resistance to corrosion and wear.

Applications:

1. Plumbing Systems:

   • Ideal for residential and commercial plumbing, the CIM 620 valve can be used for controlling water flow while preventing debris from clogging faucets, pipes, or other plumbing components.
   • It’s commonly used in water supply systems, heating systems, or filtration systems where fluid needs to be filtered before entering downstream components.

2. HVAC Systems:

   • In heating, ventilation, and air conditioning (HVAC) systems, this valve can be used to regulate water flow to radiators, heat exchangers, or fan coil units (FCUs).
   • The inbuilt strainer helps prevent debris from causing blockages or damage in these critical systems.

3. Industrial Fluid Handling:

   • Used in industrial systems such as chemical processing, water treatment, or food and beverage processing, the CIM 620 valve helps maintain clean flow lines by filtering out particulate matter.
   • It protects sensitive equipment such as pumps, valves, or heat exchangers from damage and ensures smoother, more efficient operations.

4. Irrigation Systems:

   • The inbuilt strainer helps prevent particles from clogging irrigation systems and keeps pipes and nozzles free from debris that could hinder water flow.
   • Useful in both agricultural and landscape irrigation systems where clean water distribution is important.

Advantages:

• Durability: The forged brass body and stainless steel mesh strainer ensure the valve’s longevity and reliability even in tough conditions.
• Prevents Clogging: The inbuilt strainer filters out debris and particles, protecting downstream equipment from damage and maintaining system efficiency.
• Easy Installation: Screwed end connections make installation quick and simple, without the need for welding or special fittings.
• Versatile Applications: Suitable for use in plumbing, HVAC, industrial fluid systems, and irrigation, making it a versatile choice for many industries.
• Compact Design: The compact size of the 1/2-inch valve makes it ideal for systems with limited space or smaller piping requirements.
• Cost-Effective: Offers both flow control and filtration in one unit, providing excellent value for the cost.

Conclusion:

The CIM 620, 1/2-Inch & 15mm Forged Brass Ball Valve with Inbuilt Strainer, Screwed End is a robust, durable, and versatile valve that offers both on/off flow control and filtration capabilities in a single unit. Its forged brass construction ensures long-lasting performance, while the inbuilt strainer provides a level of protection that enhances the overall reliability and efficiency of your system by preventing debris buildup.
