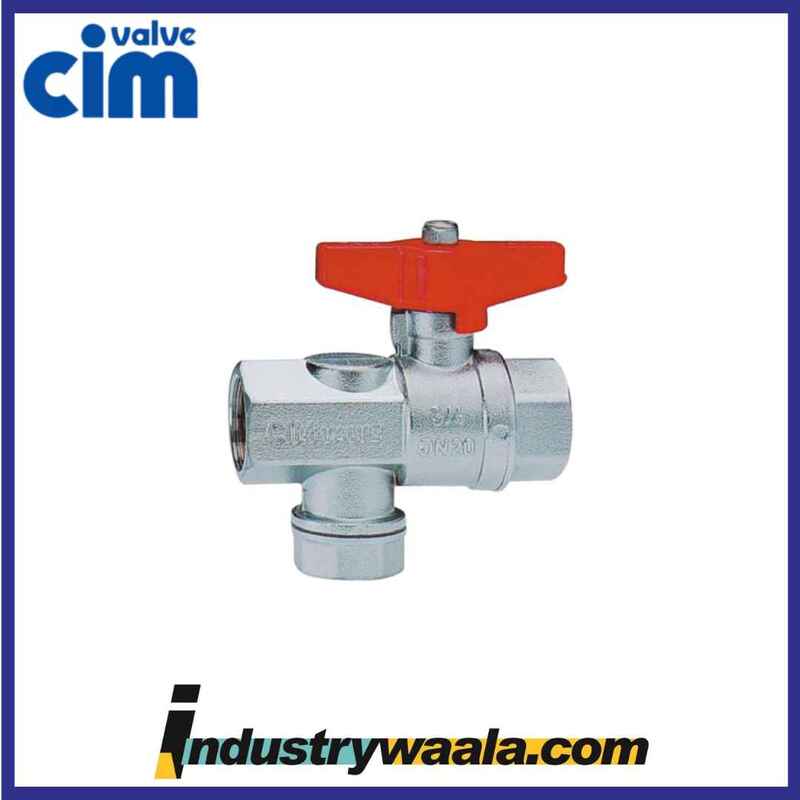

Cim 620, 1Inch & 25mm Forged Brass Ball VLV With Inbuilt Strainer, Screwed End

The CIM 620, 1 Inch & 25mm Forged Brass Ball Valve with Inbuilt Strainer, Screwed End is a high-quality valve designed for precise flow control with the added benefit of an inbuilt strainer. This valve is made from forged brass, ensuring durability and corrosion resistance. It’s a versatile solution for various applications where both flow regulation and filtration of debris are crucial, such as in plumbing, HVAC, and industrial systems.

Key Features:

1. Forged Brass Construction:

   • Made from forged brass, the valve offers high strength, excellent durability, and resistance to corrosion and wear. This makes it ideal for handling water, gases, and other non-corrosive fluids, ensuring long-term reliable performance.
   • Brass is a preferred material for valves due to its thermal stability and resistance to rust and oxidation, making it ideal for both residential and industrial systems.

2. 1 Inch & 25mm Size:

   • Designed for 1-inch (25mm) pipes, this valve is suitable for medium to large flow systems. It’s commonly used in plumbing, heating, and irrigation systems, as well as commercial HVAC systems.
   • The larger size allows it to handle higher flow rates, making it ideal for applications that require robust flow regulation.

3. Ball Valve Mechanism:

   • The valve utilizes a ball valve mechanism, which features a hollow ball that rotates inside the valve body to control fluid flow. When the ball is aligned with the pipe, the valve is open, allowing fluid to pass. When it rotates 90 degrees, it blocks the flow, providing a tight seal.
   • This design provides precise on/off control with minimal effort and ensures a secure shut-off to prevent leaks.

4. Inbuilt Strainer:

   • The inbuilt strainer serves to filter out unwanted debris, dirt, and particles from the fluid flowing through the valve. This is especially important in systems where particulate contamination could cause blockages or damage downstream components, such as pumps or heat exchangers.
   • The strainer helps maintain system performance and extends the life of sensitive equipment by preventing debris buildup.

5. Screwed End Connections:

   • The valve features screwed end connections, which are compatible with threaded pipes. This makes the valve easy to install and ensures a leak-proof connection.
   • The BSPT (British Standard Pipe Thread) or BSPP (British Standard Parallel Thread) options provide secure, reliable fittings, making it easy to integrate into existing piping systems without specialized tools.

6. Manual Operation:

   • The valve is operated manually via a lever or handle, providing easy and quick control over the flow of fluids. This manual control is ideal for systems that require periodic adjustments or complete shut-off.

Potential Specifications:

• Model Number: CIM 620
• Nominal Size: 1 Inch (25mm)
• Material: Forged Brass – ensures strength, durability, and corrosion resistance.
• Valve Type: Ball Valve with Inbuilt Strainer – provides on/off flow control with the added benefit of filtration.
• End Connections: Screwed End – suitable for threaded pipe connections (typically BSPT or BSPP).
• Pressure Rating: Typically suitable for medium-pressure systems with a rating up to 16-25 bar, depending on the application.
• Temperature Range: Operates effectively within a range of -20°C to 120°C, depending on the system conditions and type of fluid.
• Flow Control: Provides on/off control with a tight shut-off.
• Strainer Type: Inbuilt strainer designed to filter debris and particles from the fluid.
• Handle Type: Manual lever or handle for easy valve operation.
• Seals: Leak-proof seals for a secure connection and no fluid leakage.

Applications:

1. Plumbing Systems:

   • Ideal for use in residential or commercial plumbing systems where water flow needs to be controlled, and filtration of debris is necessary to maintain system integrity.
   • Useful in main water supply lines, irrigation systems, and other plumbing applications where preventing blockages is crucial.

2. HVAC Systems:

   • The CIM 620 valve is suitable for hydronic heating systems, cooling systems, or fan coil units (FCUs), where clean fluid flow is necessary for efficient heat exchange and equipment performance.
   • The strainer helps prevent debris from clogging the system, ensuring the longevity of components like pumps, valves, and heat exchangers.

3. Industrial Systems:

   • This valve is well-suited for industrial fluid handling systems, including oil and gas, compressed air, and machine cooling systems.
   • The inbuilt strainer helps protect sensitive machinery by removing contaminants from the fluid before it enters pumps, pipelines, or heat exchangers.

4. Irrigation Systems:

   • Ideal for use in agricultural irrigation, where the strainer can filter out debris, preventing blockages in the irrigation lines and ensuring efficient water flow.

Advantages:

• Durable Construction: The forged brass body ensures that the valve can handle high pressures and harsh conditions without degradation, offering long-lasting reliability.
• Inbuilt Strainer: The integrated strainer provides extra protection by filtering out particles, reducing the risk of system damage and preventing costly maintenance.
• Easy Installation: The screwed end connections allow for quick and easy installation into threaded pipes, without the need for special tools.
• Precise Flow Control: The ball valve mechanism offers smooth and precise flow control, making it easy to manage fluid flow in the system.
• Space-Efficient: Its compact design allows for installation in spaces with limited room, especially where an angle or tight fit is required.
• Leak-Proof: Leak-proof seals ensure a secure, tight connection, preventing fluid loss and enhancing system efficiency.

Conclusion:

The CIM 620, 1 Inch & 25mm Forged Brass Ball Valve with Inbuilt Strainer, Screwed End is a high-quality solution for applications that require reliable flow control and filtration. Its forged brass construction provides durability and resistance to corrosion, while the inbuilt strainer offers protection against debris and particles. Whether used in plumbing, HVAC, industrial, or irrigation systems, this valve ensures efficient operation, reduces maintenance needs, and improves the longevity of the system.
