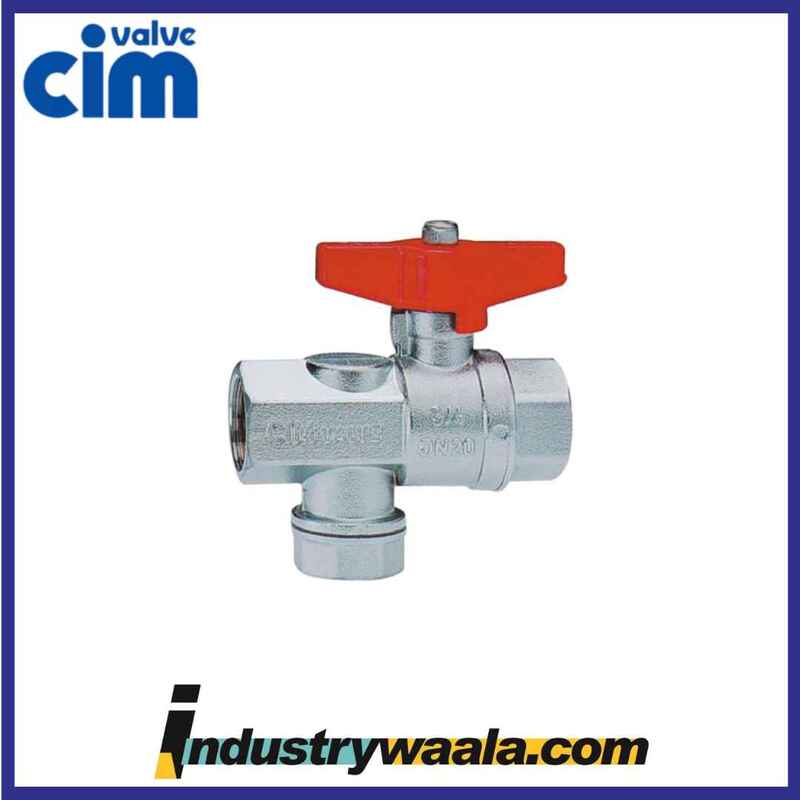

Cim 620, 3/4Inch & 20mm Forged Brass Ball VLV With Inbuilt Strainer, Screwed End

The CIM 620, 3/4-Inch & 20mm Forged Brass Ball Valve with Inbuilt Strainer, Screwed End is a robust and reliable valve designed to provide precise flow control while also integrating an inbuilt strainer to filter out debris and particles from the fluid passing through the system. This makes it a great choice for systems where cleanliness and fluid flow regulation are essential, such as in plumbing, HVAC, and industrial fluid handling applications.

Key Features:

1. Forged Brass Construction:

   • The valve body is made of forged brass, offering superior strength, durability, and corrosion resistance.
   • Brass is ideal for handling water, gases, and non-corrosive fluids, ensuring long-term reliability and resistance to wear and tear.

2. 3/4-Inch (20mm) Size:

   • The valve is designed for 3/4-inch (20mm) pipes, making it suitable for medium flow systems in both residential and commercial applications. This size is commonly used for water supply systems, heating systems, and smaller fluid transport applications.

3. Ball Valve Mechanism:

   • The ball valve design features a hollow ball that rotates inside the valve body to control fluid flow. When the ball is aligned with the pipe, the valve is open, allowing fluid to flow. When it rotates 90 degrees, it blocks the flow, ensuring a tight shut-off.
   • This mechanism provides quick and reliable on/off control with minimal effort.

4. Inbuilt Strainer:

   • The inbuilt strainer filters out debris and particles from the fluid, protecting the downstream components and ensuring the integrity and performance of the system.
   • This is particularly important in systems where dirt, sand, or rust may be present in the fluid, as the strainer prevents damage to sensitive equipment and maintains the system's efficiency.

5. Screwed End Connections:

   • The valve is equipped with screwed end connections, which are designed to allow easy and secure installation into threaded pipes. Typically, BSPT (British Standard Pipe Thread) or BSPP (British Standard Parallel Thread) fittings are used, ensuring a leak-proof connection.
   • The screwed connection also makes the valve easy to replace or service without requiring complex tools.

6. Manual Operation:

   • The valve is operated manually with a lever or handle, giving users simple, direct control over fluid flow. This is ideal for systems where flow control needs to be adjusted occasionally or manually.

Potential Specifications:

• Model Number: CIM 620
• Nominal Size: 3/4 inch (20mm)
• Material: Forged Brass – durable, corrosion-resistant, and strong.
• Valve Type: Ball Valve with Inbuilt Strainer – provides on/off flow control with the added benefit of filtration.
• End Connections: Screwed End – suitable for threaded pipe connections (typically BSPT or BSPP).
• Pressure Rating: Typically rated for medium-pressure systems, usually up to 16-25 bar, depending on the design and application.
• Temperature Range: Suitable for operation within a temperature range of -20°C to 120°C, depending on fluid and system conditions.
• Flow Control: Provides on/off control with a tight seal when closed.
• Strainer Type: Inbuilt strainer to filter debris and particles from the fluid.
• Handle Type: Manual lever or handle for easy operation.
• Seals: Leak-proof seals to prevent fluid leakage during operation.

Applications:

1. Plumbing Systems:

   • The CIM 620 valve is well-suited for residential and commercial plumbing systems where water flow needs to be controlled and debris needs to be filtered out before entering sensitive parts of the system.
   • It can be used in main water supply lines, under-sink installations, or other plumbing setups where both flow control and filtration are required.

2. HVAC Systems:

   • The valve is also useful in HVAC systems, particularly in hydronic heating, cooling systems, or fan coil units (FCUs), where the inbuilt strainer helps protect the system from dirt or particulate build-up, preventing clogging and maintaining efficiency.

3. Industrial Systems:

   • In industrial fluid handling systems, the CIM 620 valve with its inbuilt strainer helps filter out contaminants from fluids such as water, gas, or other industrial fluids, ensuring the safe and efficient operation of pumps, valves, and machinery.
   • It is ideal for use in machine cooling systems, chemical processing, oil and gas applications, and compressed air systems.

4. Irrigation Systems:

   • This valve is also perfect for use in irrigation systems, where filtering out dirt and debris before it reaches the irrigation components can prevent clogging and damage.

Advantages:

• Durability and Strength: The forged brass construction provides superior strength and durability, ensuring reliable long-term performance.
• Integrated Filtration: The inbuilt strainer provides an additional layer of protection for downstream equipment, improving system efficiency and reducing maintenance costs.
• Easy Installation: The screwed end connections make it simple to install or replace without the need for specialized tools or fittings.
• Versatile: The valve can be used in a wide range of applications, from residential plumbing to industrial fluid control, and is suitable for a variety of fluids.
• Leak-Proof: Leak-proof seals ensure a secure connection, preventing fluid loss and improving system efficiency.
• Manual Operation: The manual lever allows users to control the flow of fluid easily.

Conclusion:

The CIM 620, 3/4-Inch & 20mm Forged Brass Ball Valve with Inbuilt Strainer, Screwed End is an excellent choice for applications that require both flow control and filtration. Its forged brass construction ensures durability, while the inbuilt strainer helps protect the system from harmful debris. Whether used in plumbing, HVAC, or industrial fluid systems, this valve provides efficient and reliable performance.
