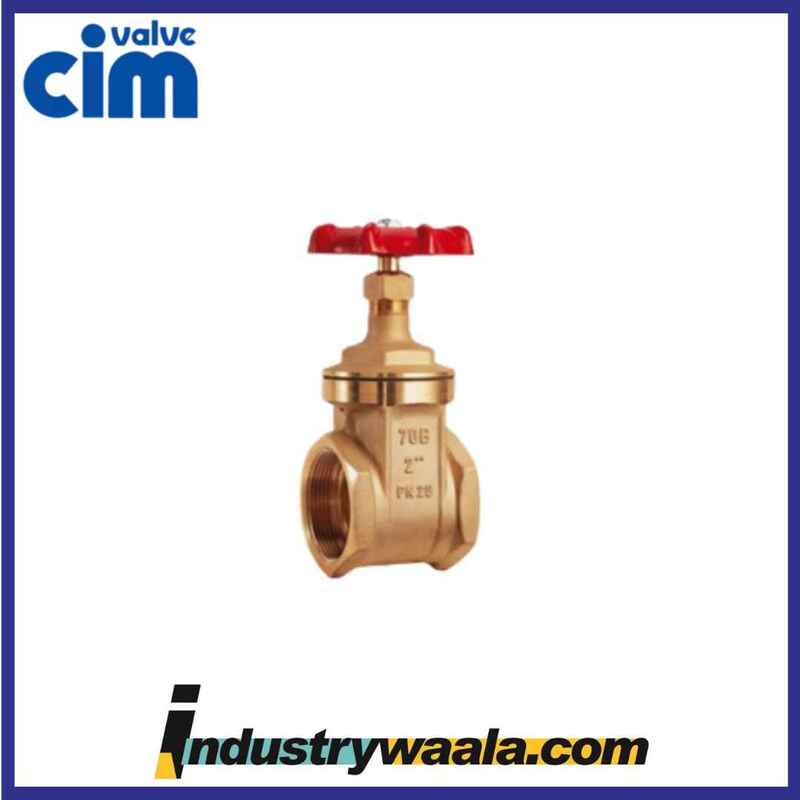

Cim 70 B, 2Inch & 50mm Forged Brass Gate Valve, Screwed End

The CIM 70 B, 2 Inch & 50mm Forged Brass Gate Valve, Screwed End is a robust and durable valve designed for regulating the flow of fluids in a variety of industrial, commercial, and residential applications. Its gate valve mechanism ensures precise flow control, offering reliable on/off operation without significant pressure drop. The valve's forged brass construction ensures strength, resistance to corrosion, and longevity, making it an excellent choice for medium- to high-pressure systems.

Here’s a detailed overview of the CIM 70 B, 2 Inch & 50mm Forged Brass Gate Valve:

Key Features:

1. Forged Brass Construction:

   • The CIM 70 B valve is made from forged brass, offering high strength, durability, and corrosion resistance.
   • Brass is a popular material for valves due to its resistance to rust, wear, and degradation in most water, gas, and air systems, ensuring reliable performance over time.

2. 2 Inch & 50mm Size:

   • Designed for 2-inch (50mm) pipe connections, making it ideal for large-scale fluid control applications.
   • Commonly used in commercial and industrial systems where high flow rates are required.

3. Gate Valve Mechanism:

   • The gate valve mechanism features a gate (or wedge) that moves vertically to control fluid flow.
   • When the gate is fully raised, it allows full flow; when lowered, it shuts off the flow completely, providing a reliable on/off flow control.
   • Gate valves are ideal for applications requiring minimal flow resistance when open and are often used for isolation purposes in pipelines.

4. Screwed End Connections:

   • Screwed end connections are used for easy installation and a secure, leak-proof fit with threaded pipes.
   • These connections are typically compatible with BSPT (British Standard Pipe Thread) or BSPP (British Standard Parallel Pipe), making it versatile for various system types.

5. Manual Operation:

   • The valve is operated manually via a wheel or handle, which allows easy adjustment to fully open or close the valve.
   • The manual operation ensures complete control over the flow in both shut-off and open positions.

Potential Specifications:

• Model Number: CIM 70 B
• Nominal Size: 2 Inch (50mm)
• Material: Forged Brass – provides superior strength, durability, and resistance to corrosion.
• Valve Type: Gate Valve – designed for on/off flow control.
• End Connections: Screwed End – for use with threaded pipes (BSPT or BSPP).
• Pressure Rating: Typically rated for medium-pressure systems, commonly up to 16-25 bar (depending on specific application).
• Temperature Range: Suitable for -20°C to 120°C depending on the fluid and system conditions.
• Flow Control: Provides on/off control with minimal pressure drop when fully open.
• Handle Type: Manual wheel or handle for operation.
• Seals: Leak-proof seals for ensuring tight closure and preventing leakage.

Applications:

1. Plumbing Systems:

   • The CIM 70 B gate valve is commonly used in plumbing systems for water supply lines, allowing complete isolation of the flow when needed.
   • It’s especially effective in larger residential or commercial plumbing applications, where larger pipe sizes are common.

2. HVAC Systems:

   • In heating, ventilation, and air conditioning (HVAC) systems, the CIM 70 B gate valve can be used to control the flow of water or coolant to radiators, heat exchangers, or pumps.
   • Its on/off functionality allows it to isolate parts of the system during maintenance or repair.

3. Industrial Fluid Handling:

   • The CIM 70 B is ideal for industrial fluid systems such as chemical processing, oil and gas, and water treatment plants.
   • It is used to isolate different sections of pipelines and fluid systems, ensuring safe operation and preventing fluid flow where it’s not needed.

4. Fire Protection Systems:

   • Commonly used in fire protection systems to shut off or isolate sections of the water supply or foam delivery system.
   • The gate valve’s full shut-off capability makes it ideal for controlling the flow of fluids in case of emergencies.

5. Irrigation Systems:

   • The CIM 70 B gate valve can be used in agricultural irrigation systems to regulate the flow of water and isolate sections of the system for maintenance or expansion.

Advantages:

• Minimal Pressure Drop: When open, the gate valve provides minimal obstruction to flow, ensuring low resistance and optimal flow.
• Durability: The forged brass construction ensures the valve is resistant to wear, rust, and corrosion, making it ideal for long-term use in harsh environments.
• Full Isolation: The gate valve provides complete isolation of the flow when closed, preventing fluid from passing through.
• Easy Installation: Screwed end connections allow for quick and secure installation in threaded piping systems.
• Manual Control: The manual operation ensures full control over the valve’s position for precise flow regulation.

Conclusion:

The CIM 70 B, 2-Inch & 50mm Forged Brass Gate Valve, Screwed End is a high-quality valve designed for reliable on/off flow control in medium- to high-pressure systems. Its forged brass construction ensures durability and corrosion resistance, while its gate valve mechanism provides minimal flow resistance when fully open. Whether used in plumbing, HVAC, industrial fluid systems, or fire protection, this valve offers excellent performance and longevity.
