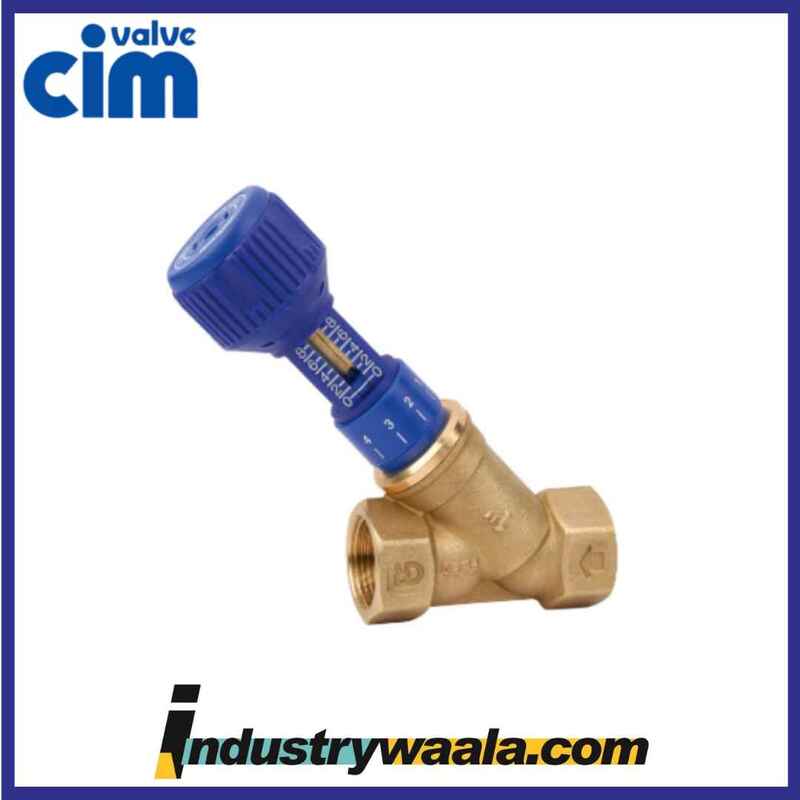

Cim 727, 1.1/4Inch & 32mm Forged Brass Balancing Valve

The CIM 727 1 1/4 Inch & 32mm Forged Brass Balancing Valve is a versatile valve used primarily for balancing the water flow in hydronic heating and cooling systems. It is designed for medium to large-sized systems, offering precise control over water flow to ensure optimal system performance.

Key Features:

1. Material:

   • Forged Brass: The CIM 727 valve is made of forged brass, which offers superior strength, durability, and corrosion resistance compared to cast brass. This is crucial for maintaining long-term performance in hydronic systems exposed to water, heat, and pressure.
   • Forged brass construction ensures the valve can handle high-pressure applications and can withstand varying temperature conditions without degrading over time.

2. Size:

   • The valve has a size of 1 1/4 Inch (32mm), making it suitable for medium-sized to larger hydronic systems. It is commonly used in systems requiring a bit more flow control than smaller valves (like 1-inch valves), such as larger commercial heating and cooling systems or industrial applications.

3. Flow Control:

   • The CIM 727 is designed for precise flow regulation, which allows the valve to balance water flow in a system. This helps ensure that each zone or circuit in the system receives the correct flow of water, enhancing the system's efficiency.
   • Proper flow control is essential for maintaining consistent temperatures across the system and avoiding energy waste.

4. Pressure & Temperature Rating:

   • Thanks to the forged brass construction, this valve can handle higher pressures and temperatures, which makes it suitable for demanding applications like HVAC systems, chilled water systems, and large-scale heating/cooling setups.

5. Connection Types:

   • The valve typically comes with threaded or flanged connections, which allow easy installation into existing piping systems, depending on the system's design and installation needs.

6. Adjustability:

   • The valve is designed with an easy-to-use mechanism for adjusting the flow rate, which can be fine-tuned to balance the water distribution and meet the specific demands of the system.

Applications:

The CIM 727 1 1/4 Inch & 32mm Forged Brass Balancing Valve is used in the following scenarios:

1. Large Residential Hydronic Systems: Ideal for homes with larger heating/cooling systems, such as hydronic radiators, underfloor heating, or fan coil units.
2. Commercial HVAC Systems: Used to balance water flow in medium to large commercial buildings, ensuring consistent temperature control across zones.
3. Industrial Cooling/Heating Systems: It can be used in various industrial applications, such as cooling towers, heat exchangers, or large-scale HVAC systems, to ensure water flow is balanced for maximum efficiency.
4. Chilled Water Systems: Regulates the flow of chilled water in commercial or industrial air conditioning systems.
5. Radiant Floor Heating: In larger residential or commercial radiant floor heating systems, balancing the water flow is critical to ensure even heat distribution.

Benefits:

• Improved System Efficiency: By ensuring the correct flow rate throughout the system, the CIM 727 valve helps prevent energy waste and optimizes system efficiency, leading to lower operating costs.
• Durability: The forged brass material makes the valve more resistant to wear and corrosion, prolonging its lifespan, especially in systems where water quality might vary.
• Energy Savings: Proper balancing ensures that each zone or loop in the system operates at peak efficiency, which helps reduce energy consumption.
• Consistent Comfort: By maintaining balanced flow, the valve ensures that all parts of the system receive the right amount of water, providing consistent comfort and temperature control throughout the space.

Installation and Maintenance Tips:

• Correct Orientation: Ensure the valve is installed according to the manufacturer’s instructions to ensure proper flow control.
• Adjust Flow Rate: When installing, use the valve’s adjustability to balance the flow rate according to the needs of the system.
• Regular Maintenance: Periodically inspect the valve for leaks, corrosion, or any signs of wear, and ensure that the flow rate remains properly adjusted for system performance.
• Leak Testing: After installation, conduct a leak test to ensure all connections are sealed and functioning as expected.

Common Installation Tips:

• Pre-Installation Checks: Ensure that all piping is clean and free of debris to avoid clogging the valve.
• Use of Proper Tools: Install the valve with the appropriate wrenches or tools, ensuring the connections are tightened without over-tightening, which can damage the valve or piping.
