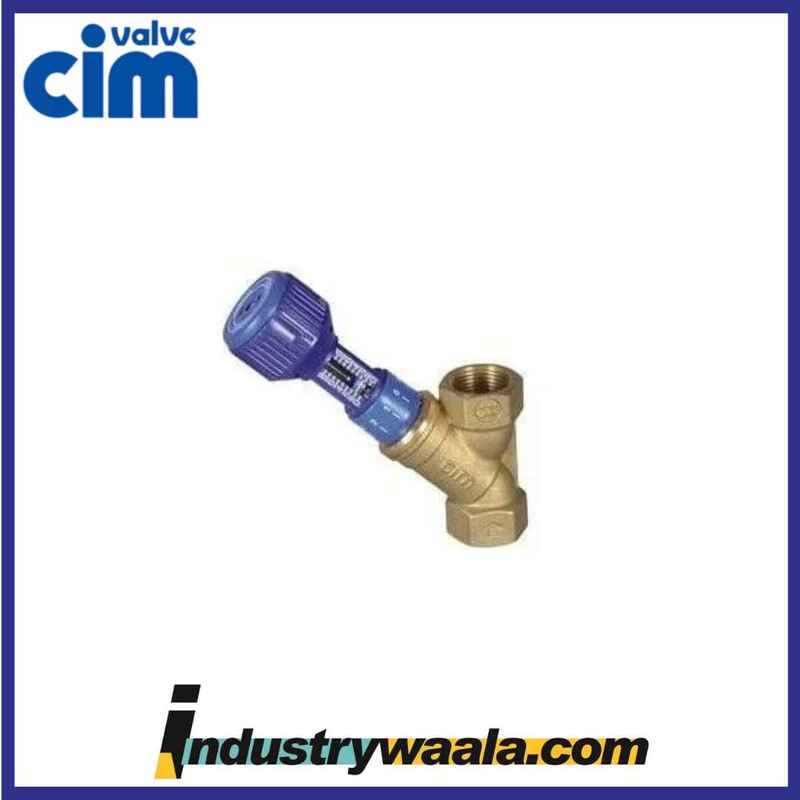

Cim 727, 3/4Inch & 20mm Forged Brass Balancing Valve

The Cim 727, 3/4-inch & 20mm Forged Brass Balancing Valve appears to be a type of valve commonly used in fluid systems for balancing the flow of liquids or gases. These valves are integral in ensuring that the flow rates in various branches of a piping system are properly adjusted to maintain system efficiency and optimal performance.

Key Features of the Cim 727 Forged Brass Balancing Valve:

1. Forged Brass Construction:

   • The valve body is made of forged brass, which offers superior strength, durability, and resistance to corrosion, making it ideal for both hot and cold fluid systems.
   • Forged brass is known for its toughness and is often used in high-pressure systems because it can withstand harsh environments.

2. Balancing Valve Functionality:

   • Balancing valves are used to regulate and balance the flow of water or other fluids within a system. They are essential in HVAC systems, hydronic heating, and cooling systems to ensure that each part of the system receives the proper amount of flow.
   • By adjusting the valve, you can control the flow to individual circuits, ensuring that energy consumption is optimized and that temperature regulation is accurate across the system.

3. Precise Flow Control:

   • The Cim 727 allows for accurate flow adjustment to optimize system performance, ensuring that the proper amount of fluid is directed to each branch or zone of the system.
   • This precise control is important for balancing the distribution of water or other fluids in large HVAC systems, radiators, or chilled beams.

4. Size Options (3/4-inch & 20mm):

   • The 3/4-inch and 20mm sizes are common for small to medium-sized systems. These sizes typically indicate the nominal size of the valve connections, meaning it will fit 3/4-inch or 20mm pipes, which are often used in residential and commercial HVAC systems.

5. Easy Adjustment Mechanism:

   • Balancing valves often feature manual or automatic adjustment mechanisms, such as handwheels, screwdrivers, or electronic actuators for remote operation.
   • The Cim 727 is likely designed for manual adjustment, allowing users to fine-tune the valve to specific flow rates or pressures.

6. Leak-proof Design:

   • Brass valves are known for their tight sealing capabilities, which helps to prevent leaks, ensuring that the system remains safe and efficient.

7. Temperature and Pressure Resistance:

   • Typically, forged brass valves are designed to withstand high pressures and temperatures, making them suitable for a variety of heating, cooling, and fluid distribution systems.
   • Expect the valve to be rated for use in systems with pressures up to around 16-25 bar, depending on the exact model.

Potential Specifications:

• Model Number: Cim 727
• Nominal Size: 3/4 inch (20mm)
• Material: Forged Brass (corrosion-resistant and durable)
• Valve Type: Balancing Valve
• Flow Rate: Adjustable flow rate, precise to a certain range depending on system requirements
• Pressure Rating: Likely rated for up to 16-25 bar, depending on the model and application
• Temperature Range: Typically -10°C to 120°C (or higher), depending on the materials used and the valve's design
• Connections:Threaded connections for standard pipe fittings (NPT or BSP)
• Adjustment Type: Manual or automatic (manual adjustment is more typical in this class of valves)
• Seal Type: Leak-proof sealing, designed for long-term durability under pressure

Applications:

• HVAC Systems: In heating, ventilation, and air conditioning systems, where it’s critical to balance the water or refrigerant flow to ensure uniform heating and cooling.
• Hydronic Heating: Used in radiant heating systems, where balancing the flow ensures proper heat distribution across the system.
• Chilled Water Systems: Helps to balance the flow of chilled water in cooling systems, ensuring consistent temperatures and efficient cooling.
• Commercial and Residential Buildings: Used in both large commercial and smaller residential buildings for efficient fluid management.
• Industrial Fluid Control: Can also be used in industrial systems that require balancing of water or other fluids, like cooling towers or manufacturing processes.

Conclusion:

The Cim 727, 3/4-inch & 20mm Forged Brass Balancing Valve is a robust and reliable component for controlling and balancing fluid flow within a system. With its forged brass construction, it is designed to handle high-pressure and high-temperature applications while maintaining a leak-proof, durable seal. Its adjustable flow control makes it ideal for use in HVAC, hydronic, and industrial systems where fluid distribution must be finely tuned for optimal performance.
