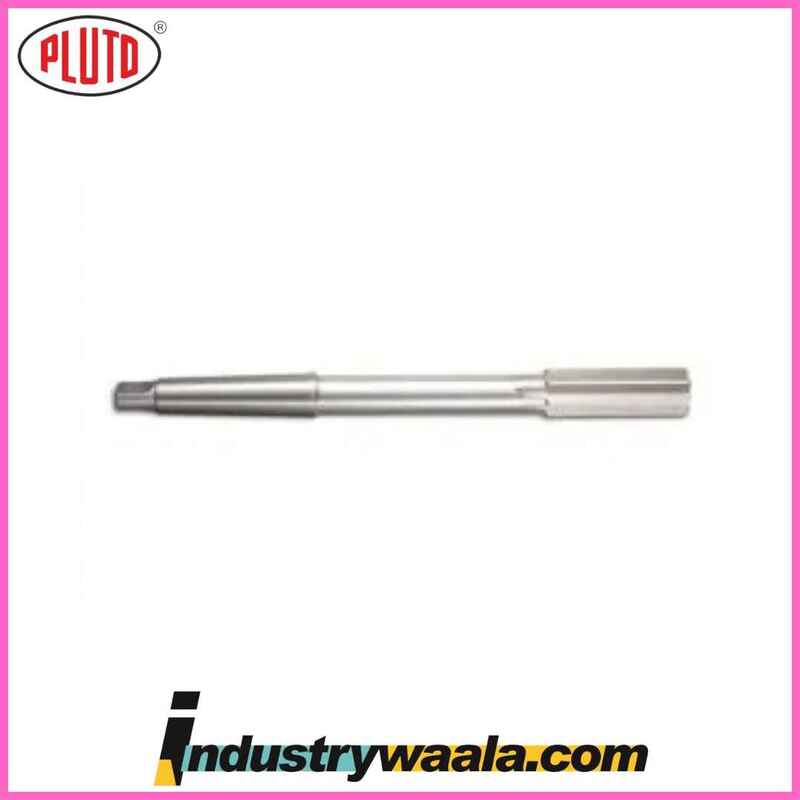

Pluto 1.7/16 X 79 X 325 X 4 Inch Chucking Reamers With Taper Shank

The Pluto 1.7/16 X 79 X 325 X 4 Inch Chucking Reamers with Taper Shank is a specialized tool used for precision reaming operations in machine shops and industrial applications. These reamers are designed for chucking, or clamping in a machine tool's chuck, to precisely finish drilled holes, providing a smooth and accurate bore.

Pluto 1.7/16 X 79 X 325 X 4 Inch Chucking Reamers with Taper Shank: Detailed Description

Tool Overview:

The Pluto Chucking Reamers are high-performance tools designed for reaming cylindrical holes to exacting tolerances, ensuring that the finished holes have the desired diameter and surface finish. These reamers are equipped with a taper shank, allowing them to be easily mounted in a chuck or machine tool spindle, ensuring a secure fit during operation. They are primarily used for finishing drilled holes, ensuring smoothness, accuracy, and the proper final size for components that require tight tolerances.

Key Features:

1. Chucking Reamer Design:

A chucking reamer is a tool that is designed to fit into a machine tool chuck, such as a lathe or drill press, for use in precision hole finishing. These tools are commonly used for reaming holes after they have been drilled, ensuring that the holes meet required size and surface finish specifications. The chucking reamer design allows for secure mounting and is ideal for machine-driven operations, as opposed to hand-held or tool post reamers.

2. Taper Shank:

The taper shank provides a conical fit into the machine tool's spindle or chuck, providing a tight and secure connection. The tapered design ensures that the reamer is held firmly in place during the reaming process, preventing slipping or wobbling, which could otherwise compromise hole accuracy. Taper shanks are commonly used because they allow for easy insertion and removal from the tool holder and offer excellent rigidity, even during high-speed operations.

3. Size and Dimensions:

• 1.7/16 inches (1.4375 inches) Diameter: This is the reamer's cutting diameter, and it is designed to finish holes to the precise size of 1.4375 inches. This size is ideal for creating large, precision holes typically required in engineering, automotive, aerospace, and other heavy-duty applications.
• 79 mm (approx. 3.11 inches) Overall Length: The overall length of 79 mm provides ample reach for cutting deeper holes, allowing the reamer to perform well in a variety of workpiece thicknesses and materials.
• 325 mm (approx. 12.8 inches) Length of Cut: The length of cut refers to the effective length of the reaming portion of the tool. With a cutting length of 325 mm, this reamer is designed to efficiently remove material over a substantial length, making it suitable for deep-hole reaming or for reaming in thicker workpieces.
• 4 inches Shank Length: The shank length determines the distance between the cutting portion of the reamer and the tool holder or chuck. A 4-inch shank length is common for chucking reamers, providing a good balance of rigidity and flexibility for both deep and shallow hole reaming.

4. Material and Construction:

Pluto chucking reamers are made from high-speed steel (HSS) or carbide, which are known for their durability, heat resistance, and ability to maintain sharp cutting edges even in high-precision reaming operations. The material ensures that the reamers can cut through tough materials, including metals such as steel, cast iron, aluminum, and stainless steel, without excessive wear.

5. Precision Reaming:

Chucking reamers are known for their high precision in achieving the exact diameter of a hole, especially in applications that require tight tolerances. These tools are particularly suitable for finishing holes that have been initially drilled, allowing for smoother surface finishes and ensuring that the hole diameter is consistent along its entire length. The result is a hole that is not only accurate in size but also smooth, reducing the need for post-reaming finishing processes like honing.

6. Smooth Surface Finish:

The cutting geometry of the Pluto chucking reamers ensures that the finished hole has a high-quality surface finish, which is important in many industrial applications where the integrity of the hole surface is critical. The reamers are designed to minimize chatter, which can lead to a poor surface finish, and reduce the risk of tool marks, burrs, or distortions in the hole.

Applications:

Pluto chucking reamers with taper shanks are widely used in industries that require precise and smooth cylindrical holes for various applications. Some of the common uses include:

• Automotive Manufacturing: For finishing holes in engine blocks, transmission components, and other machine parts that require precise, smooth holes for bearings, bushings, and shafts.
• Aerospace: In aerospace applications, where components must meet exact tolerances for critical mechanical and structural components.
• Tooling and Fixture Making: Used in toolmaking and fixture manufacturing to create precise holes in molds, jigs, and fixtures used in production.
• Heavy Machinery: Suitable for reaming holes in heavy machinery, including agricultural equipment, mining machinery, and industrial tools.
• Precision Engineering: In precision engineering for making high-tolerance holes in a variety of metals, ensuring that parts fit together accurately and function as required.

Benefits:

• High Accuracy: The Pluto chucking reamers are designed for high-precision reaming, ensuring that the finished holes meet the required specifications for diameter and surface finish.
• Enhanced Durability: Made from high-speed steel or carbide, these reamers offer excellent wear resistance, allowing them to maintain their cutting edge even under demanding conditions.
• Versatility: These reamers are versatile tools, suitable for a wide range of materials, including steels, stainless steels, aluminum, and other alloys.
• Taper Shank for Secure Mounting: The taper shank ensures a solid connection between the reamer and the machine tool, reducing the risk of tool slippage during operation and improving hole accuracy.
• Efficiency: These reamers offer efficient material removal and are ideal for high-volume production, providing smooth, finished holes with minimal effort.

Conclusion:

The Pluto 1.7/16 X 79 X 325 X 4 Inch Chucking Reamers with Taper Shank are precision tools designed for accurate hole finishing in a variety of machining applications. Their high-quality construction, precise design, and taper shank make them ideal for use in machine shops and manufacturing environments that require efficient, high-tolerance reaming operations. Whether you're working in the automotive, aerospace, or heavy machinery industries, these reamers will deliver smooth, accurate holes with excellent surface finishes, making them an essential tool for professionals who demand the highest levels of precision.
