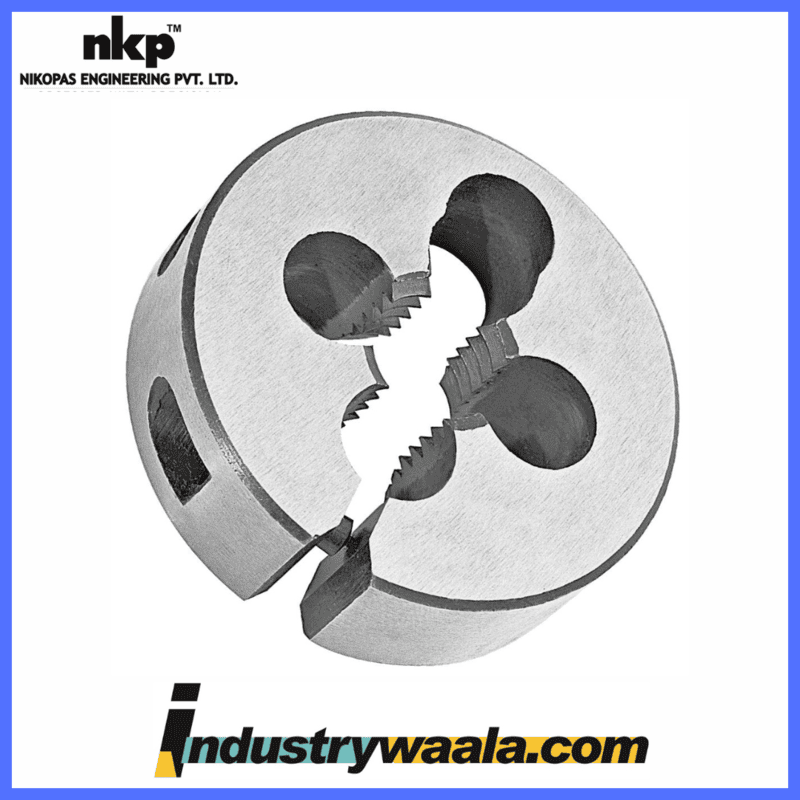

NKP 1/8 x 28 BSPT 1.5/16 Inch Dia Carbon Steel Circular Dies

The NKP 1/8 x 28 BSPT 1.5/16 Inch Dia Carbon Steel Circular Dies are precision-engineered tools designed for cutting BSPT (British Standard Pipe Tapered) threads on 1/8-inch diameter pipes or rods. Made from carbon steel, these circular dies provide durability and excellent performance for a range of industrial applications, ensuring secure, leak-proof connections. Below is a detailed overview of the product's features and specifications:

Key Features & Specifications:

1. NKP (Brand/Type)

• NKP represents the brand or product line, known for producing high-quality threading tools. NKP dies are engineered to provide reliable performance, accuracy, and long-lasting durability, making them suitable for demanding industrial, mechanical, and plumbing applications.

2. 1/8 x 28 BSPT

• 1/8 x 28 BSPT describes the size and thread type of the die:
  • 1/8″ refers to the diameter of the pipe or rod being threaded, which is 1/8 inch (approximately 3.175 mm).
  • 28 BSPT refers to the BSPT thread type with 28 threads per inch (TPI). The BSPT (British Standard Pipe Tapered) threads are designed with a tapered thread to create a tight, leak-proof seal when components are connected. The 28 TPI provides a fine pitch for precise, durable threading.

3. 1.5/16 Inch Dia

• The 1.5/16-inch diameter (approximately 40.64 mm) refers to the diameter of the circular die. This die size is designed to accommodate threading of 1/8-inch BSPT pipes, ensuring the proper thread cut while maintaining the die's stability and performance.

4. Carbon Steel Construction

• The die is made from carbon steel, a material known for its strength, resilience, and wear resistance. Carbon steel ensures that the die can withstand the forces involved in threading while maintaining its sharpness and effectiveness over time. It also offers corrosion resistance, making it suitable for long-term use in industrial environments.

5. Circular Dies

• Circular dies are used for cutting external threads on cylindrical workpieces such as pipes, rods, or bolts. The die is mounted in a die stock or holder, which allows it to rotate while cutting threads into the workpiece. The circular design ensures that the die provides consistent, smooth threads, ensuring high-quality results.

Applications:

• Pipe Threading: The 1/8 x 28 BSPT die is ideal for cutting BSPT threads on 1/8-inch diameter pipes, commonly used in plumbing, hydraulic systems, gas systems, and pneumatic applications. The tapered BSPT threads are designed to form secure, leak-proof seals, crucial in fluid and gas systems.
• Hydraulic and Pneumatic Systems: This die is used in hydraulic and pneumatic systems, where tapered threads are necessary to create high-pressure, leak-free connections.
• Industrial and Mechanical Work: Ideal for cutting precise threads for machinery and mechanical systems, this die ensures the creation of threads that are durable and fit for various industrial applications.
• Fluid and Gas Systems: BSPT threads are widely used in gas and fluid systems, where tight, leak-proof connections are essential for maintaining system integrity and safety.

Key Features:

• Threading Capacity: The 1.5/16-inch die diameter ensures that the die is large enough to cut 1/8-inch BSPT threads efficiently. This diameter is ideal for cutting smaller pipe sizes with 28 TPI BSPT threads.
• Durability: Constructed from carbon steel, the die offers excellent strength and wear resistance, making it capable of withstanding extended use in demanding applications.
• Precision: The 28 TPI BSPT threads ensure that the die creates precise, standardized threads, ideal for use in plumbing, hydraulic, and gas systems that require leak-proof connections.
• Versatility: This die is suitable for a wide range of applications, including plumbing, hydraulics, mechanical systems, and gas systems, where precise threading is necessary for reliable and secure connections.

Conclusion:

The NKP 1/8 x 28 BSPT 1.5/16 Inch Dia Carbon Steel Circular Die is a high-quality, precision tool designed for cutting BSPT threads on 1/8-inch diameter pipes. Made from carbon steel, the die offers excellent durability, wear resistance, and long-lasting performance, making it ideal for use in plumbing, hydraulic systems, mechanical systems, and gas systems. With its 28 TPI BSPT threads, the die ensures precise, fine threads that form tight, leak-proof connections, providing security and reliability in various industrial applications.
