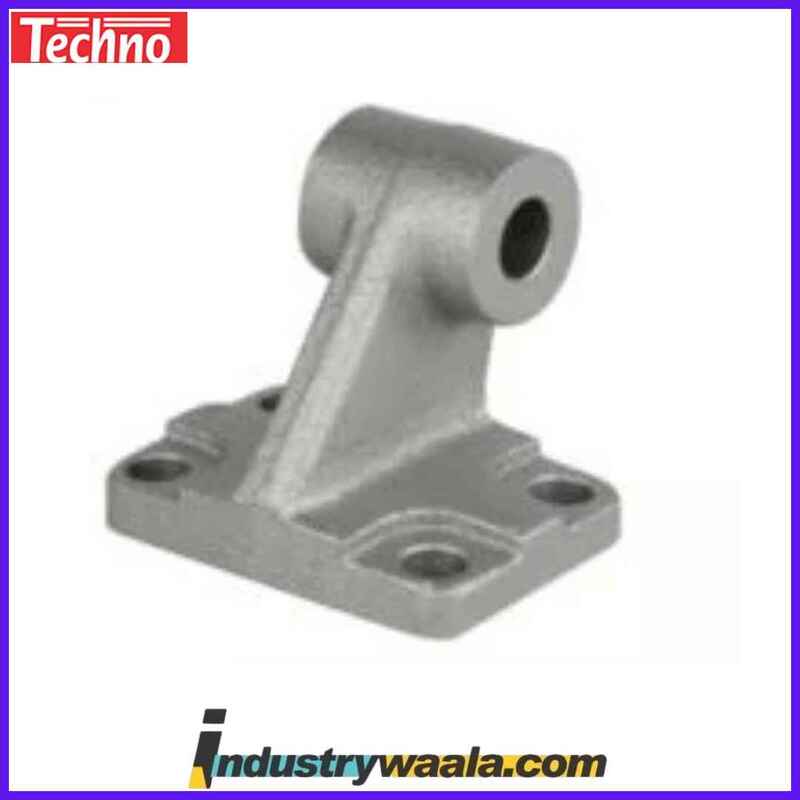

Techno MOUNTING SDB 40 DNC Pneumatic Cylinder Series

The Techno MOUNTING SDB 40 DNC Pneumatic Cylinder Series is a versatile and high-performance pneumatic actuator designed to provide reliable and precise linear motion for a wide range of industrial and automation applications. With an 40 mm bore size, this pneumatic cylinder offers an ideal balance of compactness and force output, making it perfect for medium-duty tasks where controlled motion and moderate force are required. The SDB 40 DNC series is engineered to deliver consistent, durable performance, even in demanding environments.

Designed for efficiency and long-lasting reliability, the Techno MOUNTING SDB 40 DNC pneumatic cylinder is powered by compressed air, enabling linear motion in automation, material handling, packaging, and other industrial systems. The series is built with robust materials and a corrosion-resistant finish to ensure durability in a wide range of operating conditions. Its flexible mounting options and customizable stroke lengths make it an adaptable solution for various mechanical and automation systems.

Key Features:

1. Cylinder Size (40 mm Bore):
   The 40 mm bore diameter offers a great balance of size and power, providing sufficient force output for medium-duty tasks while remaining compact enough for tight spaces. This makes it an ideal choice for applications where both space and force requirements are balanced, such as in automated machinery and material handling systems.
2. DNC Series Design:
   The DNC series is a globally recognized line of pneumatic cylinders known for its high durability, versatility, and ease of integration into various industrial systems. This series is designed for maximum reliability and performance, ensuring a long service life and minimal maintenance under demanding conditions.
3. SDB Mounting Configuration:
   The SDB mounting configuration provides versatility in installation, offering multiple mounting options to suit different operational requirements. This flexibility allows the cylinder to be mounted in various positions (e.g., horizontal, vertical, etc.), ensuring ease of installation and optimal alignment in complex machinery and automation systems.
4. Pneumatic Actuation:
   The SDB 40 DNC pneumatic cylinder operates by utilizing compressed air to generate linear motion. Pneumatic cylinders are known for their quick response times, high cycle rates, and energy efficiency. The SDB 40 DNC series excels in applications requiring fast, repeatable, and reliable motion with minimal downtime.
5. Durable Construction:
   Constructed from high-strength materials such as anodized aluminum or steel, the SDB 40 DNC cylinder is designed to withstand the wear and tear of continuous operation. The cylinder is also resistant to corrosion, ensuring reliable performance in environments exposed to moisture, dust, or chemicals.
6. Customizable Stroke Length:
   The cylinder’s stroke length is customizable to meet the specific needs of different applications. This allows users to configure the cylinder for precise motion control, ensuring that the stroke length matches the exact requirements of the task at hand.
7. Corrosion-Resistant Finish:
   The SDB 40 DNC series is equipped with a corrosion-resistant finish, such as anodized aluminum or zinc-plated steel, ensuring the cylinder remains operational in harsh environments. This feature increases the service life of the cylinder, making it a reliable option in settings where moisture or exposure to chemicals is common.
8. Low Maintenance and Easy Integration:
   The SDB 40 DNC cylinder is designed for low maintenance, with simple installation and easy-to-service components. Its straightforward design reduces downtime and allows for cost-effective operation. Its standardized construction ensures compatibility with a wide range of automation systems and applications, making it easy to integrate into new or existing setups.

Applications:

The Techno MOUNTING SDB 40 DNC Pneumatic Cylinder Series is ideal for a variety of applications in industries that require precision and efficient linear motion. Some common applications include:

• Automation Systems: Used in robotic arms, automated assembly lines, and machinery to perform tasks such as part placement, clamping, or pushing/pulling operations.
• Material Handling: Ideal for use in conveyor systems, material sorting, and lifting applications where precise movement of goods is required.
• Packaging: Applied in packaging machinery to assist in the movement, sealing, or positioning of products in high-speed packaging lines.
• Machine Tools: Suitable for tasks requiring positioning, clamping, or material feeding in CNC machines, presses, and other manufacturing equipment.
• Manufacturing: Used in various production processes to move parts, engage or disengage fixtures, or press components in assembly or production lines.
• Food and Beverage Processing: Can be used in systems requiring precise handling and placement of products in bottling, labeling, or packaging applications.

Benefits:

• High Performance: Delivers reliable, repeatable linear motion with high force output, making it ideal for medium-duty tasks in industrial environments.
• Energy Efficient: Powered by compressed air, the SDB 40 DNC series offers energy-efficient operation, helping to reduce operational costs over time.
• Durability: Built with durable materials and equipped with corrosion-resistant finishes, the cylinder is designed to perform reliably in harsh environments and high-cycle applications.
• Compact Design: The 40 mm bore offers a compact yet powerful solution for applications requiring space-saving designs without compromising on performance.
• Customizable: The cylinder offers customizable stroke lengths, making it adaptable to a wide variety of tasks and applications.
• Ease of Integration: The flexible SDB mounting configuration makes installation and integration into existing systems straightforward, reducing setup time and ensuring compatibility with various systems.

Specifications:

• Type: Pneumatic Cylinder (Actuator)
• Bore Diameter: 40 mm
• Series: DNC (Durable, Versatile Pneumatic Cylinder Series)
• Mounting Style: SDB (Various mounting configurations for flexible installation)
• Stroke Length: Customizable (tailored to specific application needs)
• Material: High-strength aluminum or steel construction for durability
• Operating Medium: Compressed air
• Operating Pressure: Typically 6-10 bar, depending on design and application requirements
• Temperature Range: Operates effectively within a temperature range of -10°C to 80°C, depending on seal material and construction.

The Techno MOUNTING SDB 40 DNC Pneumatic Cylinder Series provides a reliable, high-performance solution for a wide range of medium-duty applications. With its versatile design, customizable features, and durable construction, it is an excellent choice for industries requiring precise linear motion control in applications such as automation, material handling, packaging, and more.
