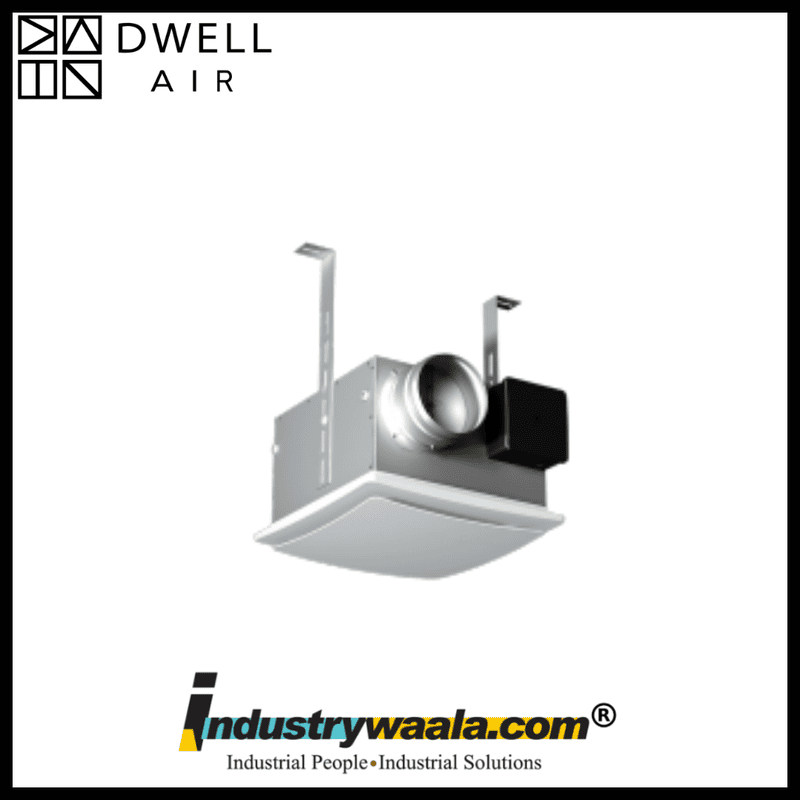

Dwell DCCF 100 PRO Ceiling Cassette Fan

Dwell DCCF 100 PRO Ceiling Cassette Fan – Professional False Ceiling Ventilation Solution

The Dwell DCCF 100 PRO Ceiling Cassette Fan is a high-performance centrifugal exhaust fan specifically designed for commercial, office, retail, and public spaces where efficient ventilation is required without compromising interior aesthetics. Its compact cassette-style design fits discreetly within false ceilings, providing powerful air extraction while remaining virtually unobtrusive.

Engineered for connection to Ø100 mm and Ø125 mm round air ducts, the DCCF 100 PRO delivers airflow up to 190 m³/h, making it ideal for offices, shops, meeting rooms, washrooms, utility areas, and commercial premises with limited ceiling installation space. The centrifugal impeller with backward-curved blades ensures stable airflow performance even when connected to duct systems with moderate resistance.

The fan features a galvanized steel housing combined with an ABS decorative front panel fitted with a removable filter. The front panel design allows tool-free filter access for easy cleaning and maintenance. An integrated backdraft damper prevents unwanted reverse airflow and improves overall ventilation efficiency.

Powered by a single-phase external rotor motor, the DCCF 100 PRO incorporates thermal overload protection with automatic restart functionality and long-life ball bearings rated for at least 40,000 hours of operation. The motor is dynamically balanced to ensure safe, reliable, and low-noise performance.

Key Features

• 100 mm (4-inch) cassette type centrifugal exhaust fan
• Airflow capacity up to 190 m³/h
• Compact false ceiling installation design
• Compatible with Ø100 mm and Ø125 mm air ducts
• Galvanized steel housing construction
• ABS decorative front panel with removable filter
• Backward-curved centrifugal impeller
• Built-in backdraft damper
• External rotor motor technology
• Thermal overload protection with automatic restart
• Ball-bearing motor with 40,000+ hour service life
• IP44 motor protection rating
• Low noise operation
• Suitable for continuous-duty applications
• Ideal for commercial and office ventilation systems
