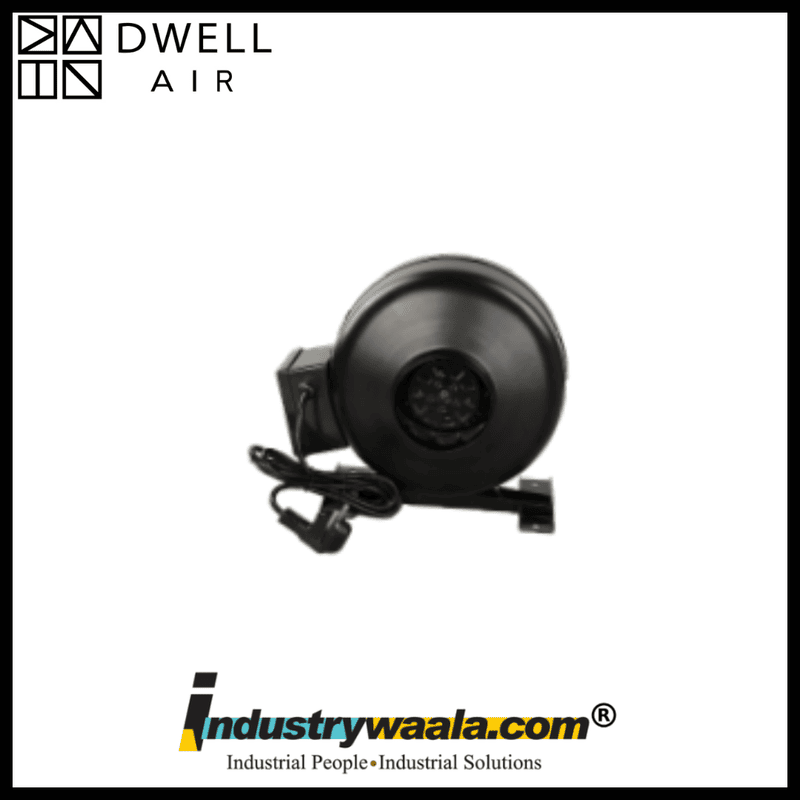

Dwell DCIF 150 PRO Metal Inline Centrifugal Fan

Dwell DCIF 150 PRO Metal Inline Centrifugal Fan – Powerful Ventilation for Commercial & Industrial Applications

The Dwell DCIF 150 PRO Metal Inline Centrifugal Fan is a high-performance ventilation solution engineered for applications requiring strong airflow, high static pressure, and dependable continuous-duty operation. Built with a heavy-duty galvanized steel casing and a dynamically balanced backward-curved centrifugal impeller, the fan delivers efficient air movement while maintaining low noise levels and long-term reliability. It is ideal for commercial buildings, offices, restaurants, kitchens, warehouses, and HVAC duct systems.

Designed to handle higher duct resistance than standard axial fans, the DCIF 150 PRO provides excellent performance in long duct runs and complex ventilation networks. The robust galvanized steel housing offers durability and corrosion resistance, making it suitable for demanding indoor ventilation environments.

The fan features a single-phase external rotor motor equipped with thermal overload protection, automatic restart functionality, and long-life ball bearings rated for more than 40,000 operating hours. Its IP44-rated motor protection ensures safe and reliable operation in commercial and industrial applications.

With airflow up to 450 m³/h and static pressure up to 450 Pa, the Dwell DCIF 150 PRO offers an excellent balance of airflow performance and pressure capability, making it ideal for supply and exhaust ventilation systems where efficient air movement is essential.

Key Features

• 150 mm (6-inch) metal inline centrifugal fan
• Airflow capacity up to 450 m³/h
• Static pressure up to 450 Pa
• Heavy-duty galvanized steel casing
• Backward-curved centrifugal impeller
• External rotor motor design
• Ball-bearing motor with 40,000+ hour lifespan
• Thermal overload protection
• Automatic restart function
• IP44 motor protection rating
• Suitable for supply and exhaust ventilation
• Compatible with speed controllers
• Wall and ceiling mounting capability
• Continuous-duty operation
• Ideal for commercial and industrial ventilation systems
