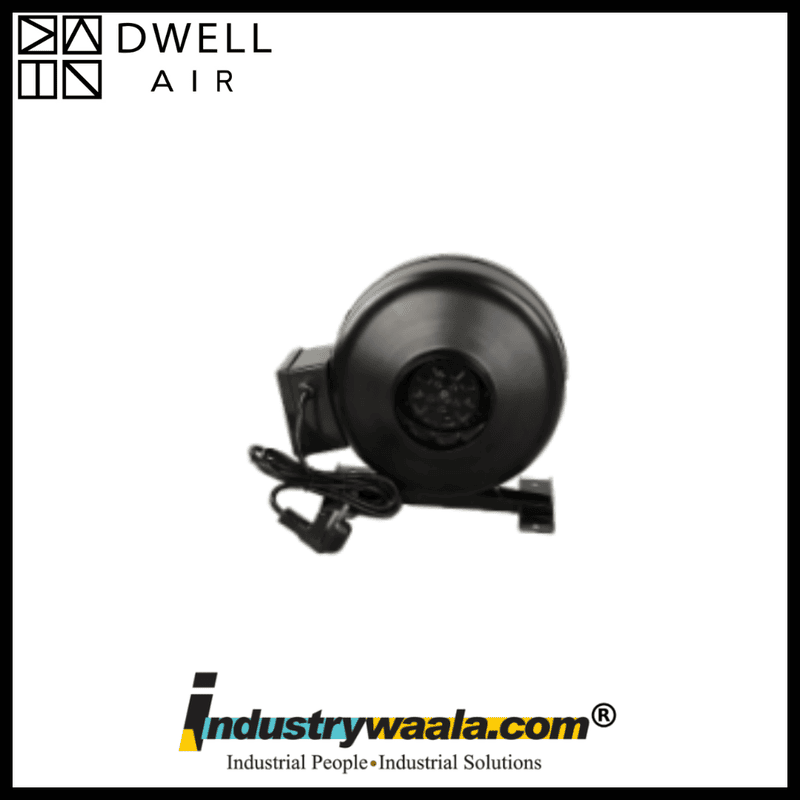

Dwell DCIF 200 PRO Metal Inline Centrifugal Fan

Dwell DCIF 200 PRO Metal Inline Centrifugal Fan – High Airflow & High Static Pressure Ventilation Solution

The Dwell DCIF 200 PRO Metal Inline Centrifugal Fan is a powerful duct-mounted ventilation fan designed for commercial, industrial, and HVAC applications requiring high airflow and strong static pressure performance. Constructed with a heavy-duty galvanized steel housing and a dynamically balanced backward-curved centrifugal impeller, the fan delivers efficient air movement while maintaining reliability and durability in demanding environments.

Designed for supply and exhaust ventilation systems, the DCIF 200 PRO is ideal for long duct runs, commercial kitchens, factories, warehouses, offices, retail spaces, and industrial air handling systems where standard axial fans may not provide sufficient pressure. The robust metal casing offers excellent corrosion resistance and long service life.

The fan is equipped with a high-efficiency external rotor motor featuring thermal overload protection, automatic restart functionality, and maintenance-free ball bearings designed for more than 40,000 hours of operation. Its IP44-rated motor protection ensures dependable performance in challenging ventilation environments.

With an airflow capacity of up to 830 m³/h and static pressure up to 550 Pa, the Dwell DCIF 200 PRO is engineered to provide powerful and consistent airflow through complex duct networks while maintaining stable operation.

Key Features

• 200 mm (8-inch) metal inline centrifugal fan
• High airflow capacity up to 830 m³/h
• Static pressure up to 550 Pa
• Heavy-duty galvanized steel housing
• Backward-curved centrifugal impeller
• External rotor motor design
• Ball-bearing motor with 40,000+ hour lifespan
• Thermal overload protection
• Automatic motor restart function
• IP44 motor protection rating
• Suitable for supply and exhaust ventilation
• Compatible with external speed controllers
• Wall and ceiling mounting capability
• Continuous-duty operation
• Ideal for commercial and industrial applications
