| Specification | Details |
| Brand | Dwell |
| Model | MIX 250 PRO |
| Product Type | Mixed Flow Inline Fan |
| Duct Diameter | 250 mm (10 Inch) |
| Power Consumption | 225 W |
| Current | 1.2 A |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Speed | 2450 RPM |
| Airflow Capacity | 1450 m³/h |

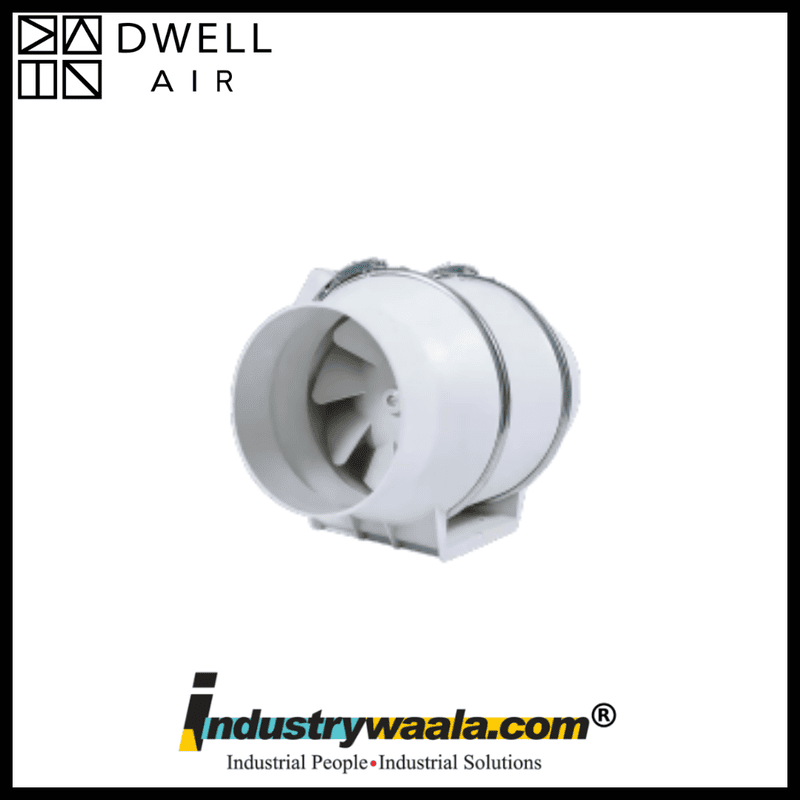

Dwell MIX 250 PRO Mixed Flow Inline Fan – Powerful Airflow for Demanding Ventilation Systems
The Dwell MIX 250 PRO Mixed Flow Inline Fan is a high-performance duct ventilation fan engineered for applications that require exceptional airflow, high static pressure, and reliable continuous-duty operation. By combining the airflow characteristics of axial fans with the pressure capabilities of centrifugal fans, the MIX 250 PRO delivers superior ventilation performance in demanding residential, commercial, and industrial installations.
Designed for both supply and exhaust ventilation systems, the fan is ideal for long duct runs, complex ventilation networks, HVAC systems, commercial kitchens, offices, retail spaces, warehouses, factories, and large residential projects. Its advanced mixed-flow impeller technology ensures strong airflow delivery while maintaining efficient operation.
The housing is manufactured from durable high-quality plastic and features a removable motor and impeller assembly for simplified maintenance. The integrated ball-bearing motor is designed for long operational life, while thermal overload protection and IPX4 motor protection provide enhanced reliability and safety during continuous use.
With an airflow capacity of up to 1450 m³/h and static pressure reaching 488 Pa, the Dwell MIX 250 PRO is an excellent choice for projects where standard inline fans cannot provide sufficient airflow or pressure performance.
Key Features
- 250 mm (10-inch) mixed flow inline fan
- High-performance mixed-flow impeller design
- Airflow capacity up to 1450 m³/h
- Static pressure up to 488 Pa
- Suitable for supply and exhaust ventilation
- Ball-bearing motor for long service life
- Thermal overload motor protection
- IPX4 ingress protection rating
- Low-noise operation for its performance class
- Suitable for long duct installations
- Removable motor block for easy maintenance
- Continuous-duty operation
- Compatible with round duct systems
- Wall, ceiling, or inline mounting
- Ideal for commercial and industrial applications
