| Specification | Details |
| Brand | Dwell |
| Model | MIX 315 PRO |
| Product Type | Mixed Flow Inline Fan |
| Duct Diameter | 315 mm (12 Inch) |
| Power Consumption | 320 W |
| Current | 1.6 A |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Speed | 2500 RPM |
| Airflow Capacity | 2900 m³/h |

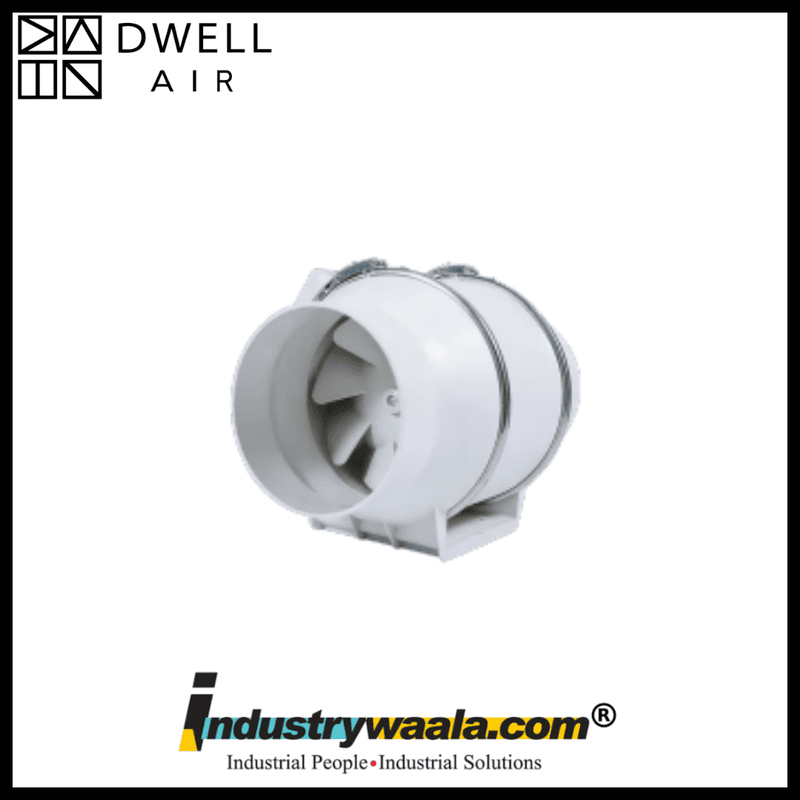

Dwell MIX 315 PRO Mixed Flow Inline Fan – Maximum Airflow for Industrial & Commercial Ventilation
The Dwell MIX 315 PRO Mixed Flow Inline Fan is the most powerful model in the Dwell MIX PRO series, engineered for large-scale ventilation systems that demand exceptional airflow, high static pressure, and reliable continuous-duty operation. Combining the airflow advantages of axial technology with the pressure capabilities of centrifugal fans, it is designed for demanding HVAC, industrial, commercial, and large residential ventilation projects.
Built with a durable high-quality housing and advanced mixed-flow impeller technology, the MIX 315 PRO delivers powerful airflow while maintaining stable performance across long duct runs and complex ventilation networks. The fan is suitable for both fresh-air supply and exhaust air extraction applications, making it ideal for factories, warehouses, commercial kitchens, shopping complexes, offices, hospitality projects, and HVAC systems.
The removable motor and impeller assembly allows quick maintenance without dismantling the entire duct system. Equipped with a ball-bearing motor, thermal overload protection, and IPX4 motor protection, the fan is designed for long service life and dependable operation in demanding environments. The motors are rated for up to 40,000 hours of continuous operation.
With an impressive airflow capacity of up to 2900 m³/h and static pressure up to 630 Pa, the Dwell MIX 315 PRO is ideal for large duct systems where superior airflow and pressure performance are essential.
Key Features
- 315 mm (12-inch) mixed flow inline fan
- High-performance mixed-flow impeller technology
- Airflow capacity up to 2900 m³/h
- Static pressure up to 630 Pa
- Suitable for supply and exhaust ventilation
- Ball-bearing motor for extended service life
- Thermal overload motor protection
- IPX4 ingress protection rating
- Suitable for long and complex duct systems
- Removable motor block for easy maintenance
- Continuous-duty operation
- Compatible with round duct systems
- Wall, ceiling, or inline mounting
- Parallel and series installation capability
- Ideal for industrial and commercial applications
