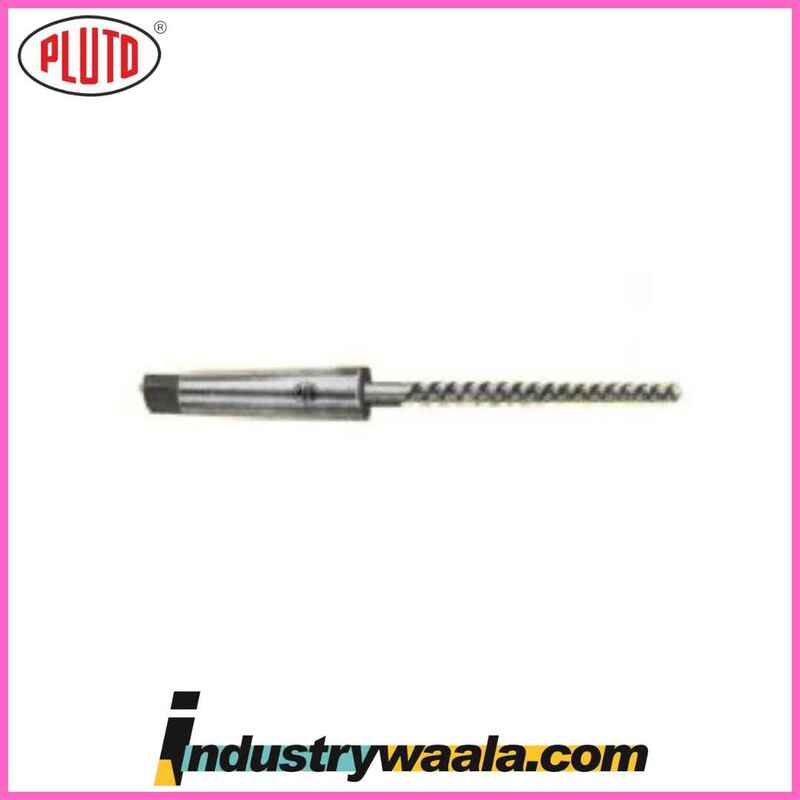

Pluto 3/4 X 9.3/4 X 13.1/2 X 0.760 Inch Machine Taper Pin Reamers

The Pluto 3/4" x 9.3/4" x 13.1/2" x 0.760 Inch Machine Taper Pin Reamers are precision-engineered tools designed for reaming tapered holes in a wide range of materials, including steel, stainless steel, and other tough metals. These reamers are specifically designed for machine taper pin applications, ensuring that the holes are reamed to the precise taper required to accommodate taper pins, bushings, or similar components. Featuring robust construction and high-quality materials, these reamers offer superior durability and precision in demanding industrial environments.

Key Features:

• Precision Tapered Design:
  The 3/4-inch (approximately 19.05mm) diameter machine taper pin reamers are engineered to create holes with an exact taper for inserting taper pins. This precise tapering allows for a secure fit, ensuring that components are properly aligned and held in place in machinery, tools, or mechanical systems.
• Size and Dimensions:
  • Diameter: 3/4 inch (approximately 19.05mm)
  • Shank Length: 9.3/4 inches (approximately 246mm)
  • Overall Length: 13.1/2 inches (approximately 343mm)
  • Flute Length: 0.760 inches (approximately 19.3mm)

  These dimensions make the reamers ideal for medium to large-sized taper pin holes that require precision and consistency. The length and flute dimensions ensure that the reamer is capable of reaching deeper, more challenging workpieces.

• Machine Taper Pin Geometry:
  The reamers are specifically designed to meet industry-standard taper specifications, ensuring that taper holes are reamed with the correct taper angle. This ensures a perfect fit for taper pins, which are critical for aligning and securing components within machinery or mechanical assemblies.
• Durable Construction:
  Made from high-speed steel (HSS) or equivalent high-performance materials, the Pluto machine taper pin reamers are built for longevity and efficiency. HSS offers superior strength, heat resistance, and wear resistance, which makes the reamers suitable for high-speed machining and heavy-duty operations. The carbide tip (if applicable) further improves tool life and cutting ability.
• Efficient Cutting Action:
  Designed for optimal performance, these reamers feature spiral flutes that are carefully crafted to provide clean, efficient cutting. The spiral design ensures better chip removal, reducing the likelihood of clogging and allowing for smooth, uninterrupted reaming operations.
• Precision Reaming:
  These reamers are built for high precision, producing clean, smooth, and accurate holes. The flute geometry helps ensure minimal distortion during reaming, resulting in well-defined holes that are ready for taper pin insertion without the need for additional deburring or finishing operations.
• Versatile Applications:
  Pluto taper pin reamers are widely used across various industries, such as:
  • Machinery Assembly: Reaming holes to accommodate taper pins, bushings, or components that require precise alignment.
  • Automotive: Used in the production of automotive parts where taper pin holes are needed for securing parts like axles, gears, and other assemblies.
  • Toolmaking & Fixtures: Essential for toolmakers who require reamed holes for taper pins in custom tools, jigs, or fixtures.
  • Heavy Equipment Manufacturing: Reaming holes for taper pins used in machinery that requires precise fitting of moving or static parts.
  • Maintenance & Repair: Perfect for industrial machinery repair, where taper pin holes need to be reamed for accurate alignment or replacement of pins in machinery and mechanical systems.

Advantages:

• High Precision: Guarantees the production of holes with the correct taper angle to ensure a perfect fit for taper pins, which are crucial for mechanical alignment and securing parts.
• Durability: Constructed from high-speed steel or equivalent material for long-lasting performance, reducing the need for frequent tool replacements.
• Efficient Performance: The spiral flute design promotes better chip removal, increasing cutting efficiency and reducing heat buildup, allowing for faster reaming and smoother finishes.
• Clean Finish: Produces smooth, clean holes with minimal burrs, eliminating the need for additional finishing operations.
• Versatile Use: Suitable for a wide range of applications in machinery assembly, automotive manufacturing, heavy equipment, and toolmaking.

Applications:

• Machinery Assembly: For precise reaming of holes to accommodate taper pins used to align and secure components.
• Toolmaking: Ideal for reaming taper pin holes in the production of jigs, fixtures, and custom tooling.
• Automotive Manufacturing: Used for creating tapered holes in automotive parts such as gears, axles, and structural components.
• Heavy Equipment: Reaming taper pin holes in large machines and equipment to maintain precise alignment of moving and stationary parts.
• Industrial Repair: Perfect for repairing machinery and equipment by reaming holes for taper pins to replace worn or damaged pins in mechanical assemblies.

Specifications:

• Reamer Type: Machine Taper Pin Reamer
• Diameter: 3/4 inch (approximately 19.05mm)
• Shank Length: 9.3/4 inches (approximately 246mm)
• Overall Length: 13.1/2 inches (approximately 343mm)
• Flute Length: 0.760 inches (approximately 19.3mm)
• Material: High-speed steel (HSS) or equivalent
• Application: Taper pin hole reaming in machinery, automotive, heavy equipment, and toolmaking industries.

The Pluto 3/4" x 9.3/4" x 13.1/2" x 0.760 Inch Machine Taper Pin Reamers are a reliable and essential tool for any precision engineering or mechanical assembly task requiring the creation of tapered holes. Their durability, efficiency, and precision make them indispensable for professionals working with taper pins in heavy machinery, automotive parts, toolmaking, and industrial repairs.
